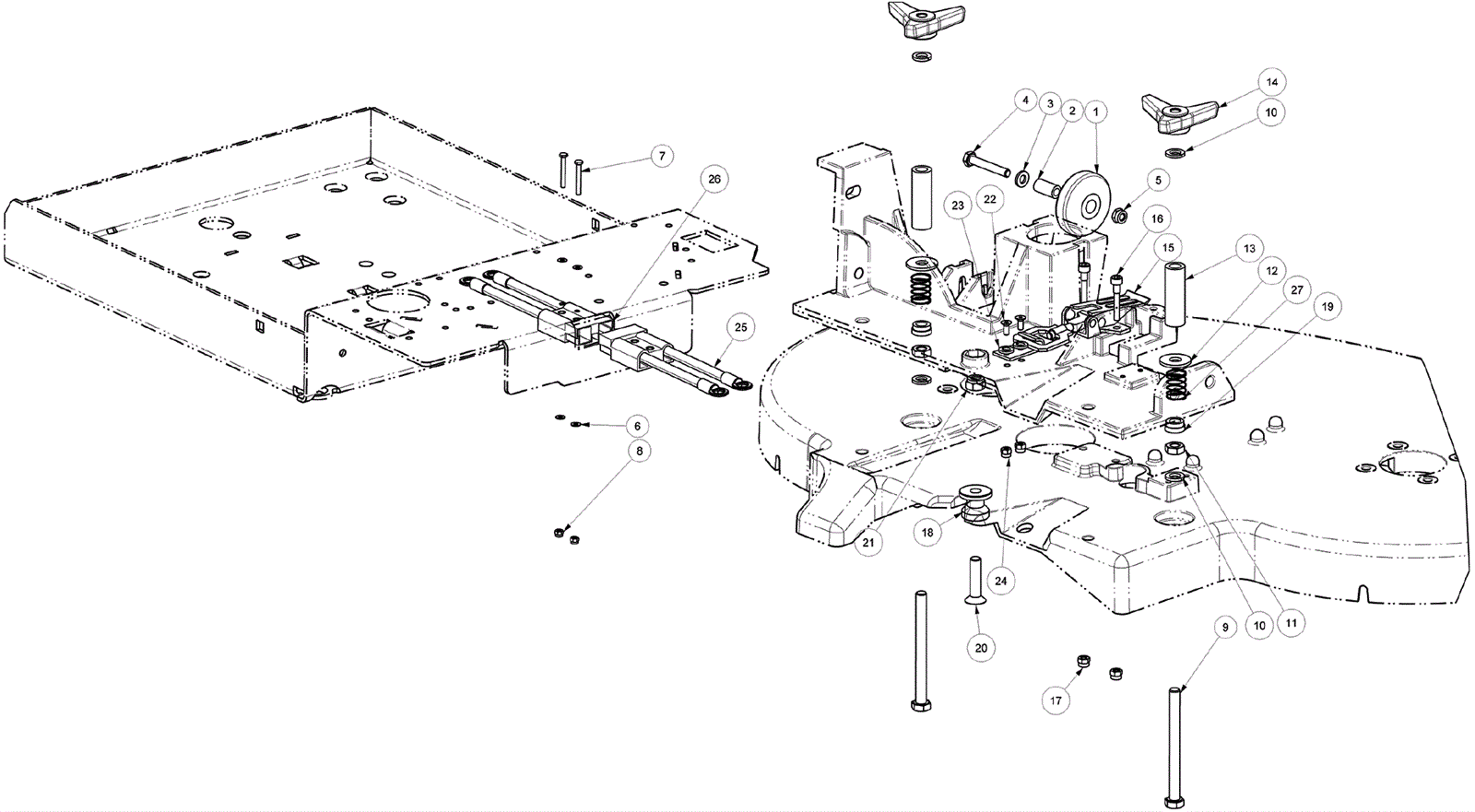

CT71 Frame Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 203-5826 Wheel D.50x17 $4.66 1 usually ships 10-12 days
2 203-5827 Spacer $0.99 1 usually ships 10-12 days
3 203-1286 Washer D6 $2.99 1 usually ships 10-12 days
4 189-1483 Screw 6 x 40 inch $0.99 1 usually ships 1-5 days
5 189-1536 Nut with nylon ring $5.50 1 usually ships 5-9 days
6 189-1441 Washer $2.99 4 usually ships 1-5 days
7 203-5111 Screw $4.25 2 usually ships 10-12 days
8 203-4787 Nut M3 $3.61 2 usually ships 10-12 days
9 203-5828 Screw te 8x90 $0.99 2 usually ships 10-12 days
10 203-4414 Washer $2.99 4 usually ships 10-12 days
11 203-4226 Nut $30.60 2 usually ships 10-12 days
12 189-1400 Washer $2.99 2 usually ships 10-12 days
13 203-5829 Spacer $8.12 2 usually ships 10-12 days
14 189-0071 Handle $16.32 2 usually ships 10-12 days
15 203-5830 Hook brush head $22.18 1 usually ships 10-12 days
16 189-1500 Screw $2.35 2 usually ships 1-5 days
17 189-1484 Nut M5 $3.67 2 usually ships 1-5 days
18 203-5831 Pin $8.71 1 usually ships 10-12 days
19 203-5832 Spacer $2.27 2 usually ships 10-12 days
20 203-5833 Screw 8x35 zinc $4.25 1 usually ships 10-12 days
21 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
22 203-4245 Screw 4 x 12 $0.99 2 usually ships 1-5 days
23 203-0971 Washer D6 $2.99 2 usually ships 10-12 days
24 189-1472 Nut M4 $3.61 2 usually ships 1-5 days
25 203-5834 Head motors brush wiring $22.01 1 usually ships 10-12 days
26 203-5835 Brush head wiring board $38.96 1 usually ships 10-12 days
27 203-5836 Spring $3.39 2 usually ships 10-12 days
