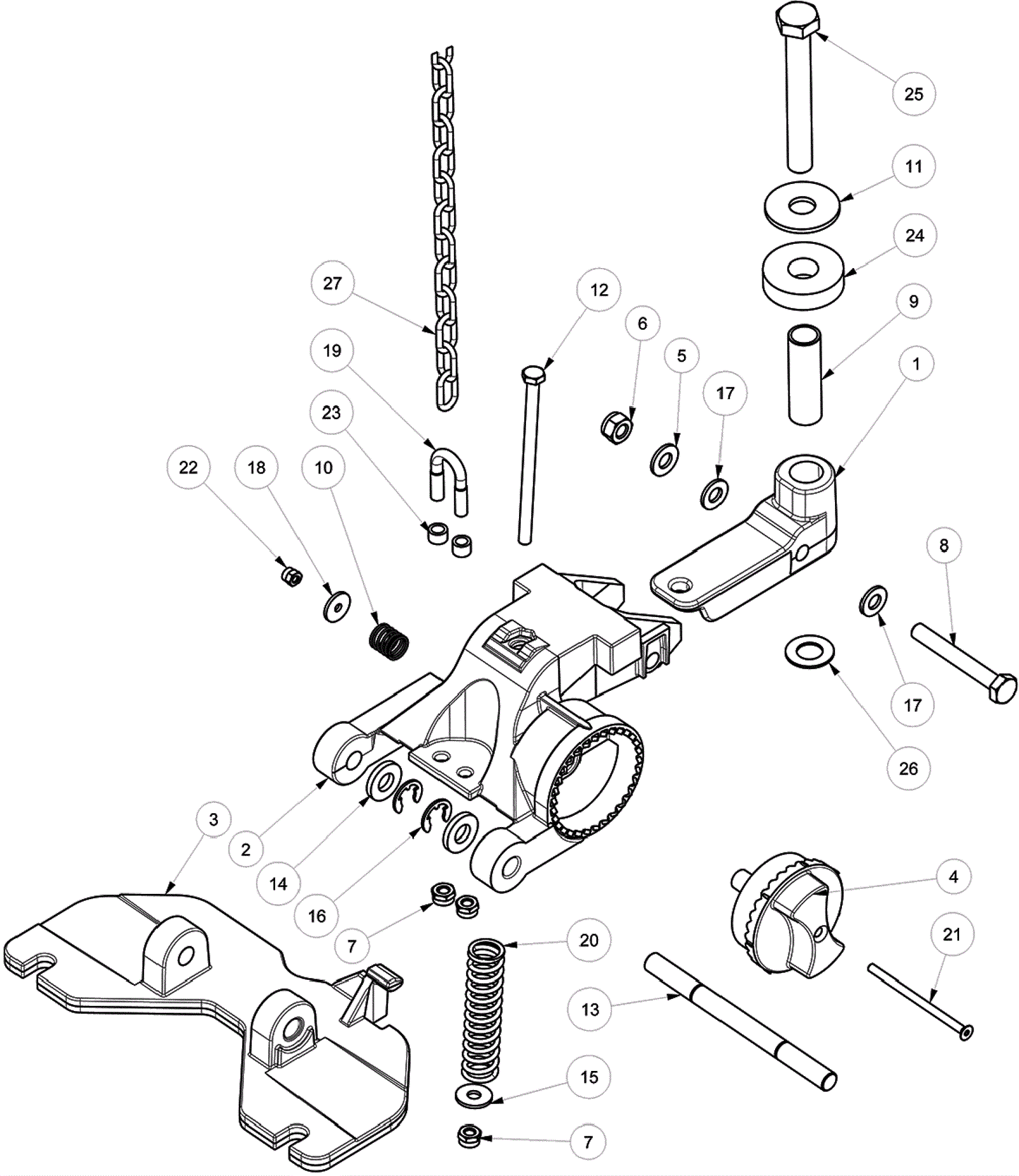

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-5801
|
Squeegee pivot support |
1 |
|
|
2 |
203-5802
|
Squeegee regulation support |
1 |
|
|
3 |
203-5803
|
Squeegee support |
1 |
|
|
4 |
203-5804
|
Squeegee angle adjustment knob |
1 |
|
|
5 |
189-0897
|
Washer D8 |
1 |
|
|
6 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
7 |
189-1536
|
Nut with nylon ring |
3 |
|
|
8 |
203-4847
|
Screw |
1 |
|
|
9 |
203-5805
|
Bushing 13x16x51 |
1 |
|
|
10 |
203-5806
|
Squeegee spring knob |
1 |
|
|
11 |
203-4842
|
Washer |
1 |
|
|
12 |
203-5807
|
Screw te M6x100 |
1 |
|
|
13 |
203-5808
|
Pin for squeegee support |
1 |
|
|
14 |
203-5809
|
Washer |
2 |
|
|
15 |
189-1391
|
Washer D6 |
1 |
|
|
16 |
203-5810
|
Snap ring |
2 |
|
|
17 |
375-9658
|
Washer nylon |
2 |
|
|
18 |
203-0145
|
Washer 4-16 inch |
1 |
|
|
19 |
203-4845
|
Bracket |
1 |
|
|
20 |
203-5811
|
Spring |
1 |
|
|
21 |
203-5812
|
Screw 4x70 |
1 |
|
|
22 |
189-1472
|
Nut M4 |
1 |
|
|
23 |
375-5539
|
Spacer |
2 |
|
|
24 |
203-4849
|
Washer |
1 |
|
|
25 |
203-5813
|
Screw te M12-90 |
1 |
|
|
26 |
203-5814
|
Washer |
1 |
|
|
27 |
203-5815
|
Squeegee lifting chain |
1 |
|
|
