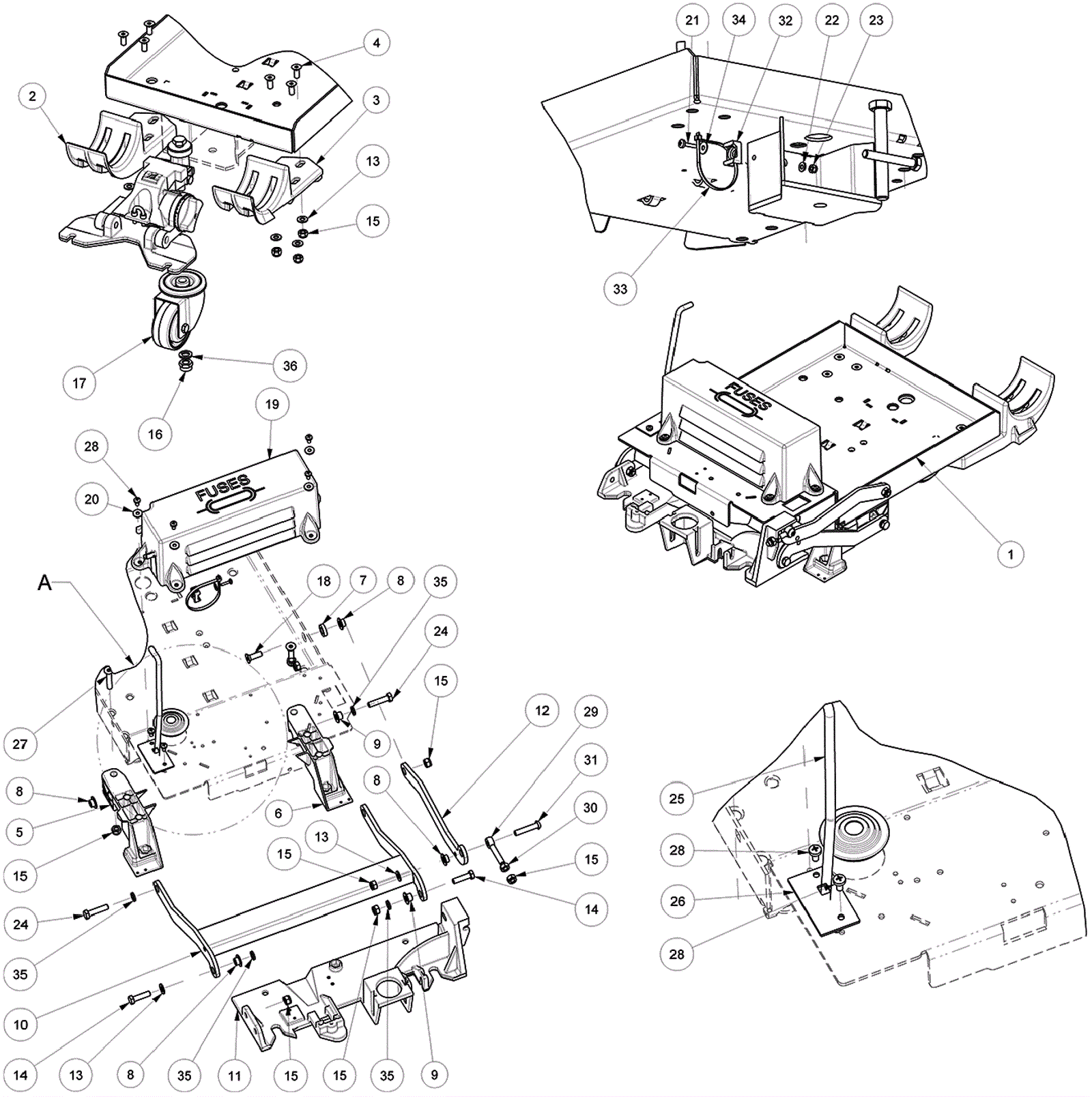

CT71 Frame Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 203-5780 Fame $222.10 1 usually ships 10-12 days
2 203-5781 Support $20.48 1 usually ships 10-12 days
3 203-5782 Support $19.54 1 usually ships 10-12 days
4 203-5783 Screw M8 x 20 $0.99 6 usually ships 10-12 days
5 203-5784 Support $13.89 1 usually ships 10-12 days
6 203-5785 Support $13.89 1 usually ships 10-12 days
7 203-5786 Spacer $2.40 1 usually ships 10-12 days
8 203-4804 Bushing $5.50 4 usually ships 1-5 days
9 203-5787 Bushing $5.50 2 usually ships 10-12 days
10 203-5788 Arm $57.44 1 usually ships 10-12 days
11 203-5789 Brush head support bracket $45.32 1 usually ships 10-12 days
12 203-5790 Lever $11.65 1 usually ships 10-12 days
13 189-0897 Washer D8 $2.99 8 usually ships 10-12 days
14 203-3357 Screw $0.99 2 usually ships 1-5 days
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 15 ships same day
16 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 1 usually ships 12-18 days
17 203-4816 Castor wheel $74.03 1 usually ships 10-12 days
18 189-1428 Screw M8 $0.99 1 usually ships 1-5 days
19 203-5791 Electronic box covering $17.66 1 usually ships 10-12 days
20 189-1462 Washer 5 x 14 inch $2.99 4 ships same day
21 203-4647 Screw M4 x 16 $4.20 1 usually ships 10-12 days
22 203-0235 Washer $2.99 1 usually ships 10-12 days
23 203-4332 Nut $3.61 1 usually ships 1-5 days
24 203-4518 Screw 8 x 35mm $30.95 2 usually ships 1-5 days
25 203-5792 Pin $5.24 1 usually ships 10-12 days
26 203-5793 Plate $5.50 1 usually ships 10-12 days
27 203-5794 Screw 8 x 45 $0.99 2 usually ships 10-12 days
28 203-5795 Screw M4 x 8 $0.99 6 usually ships 10-12 days
29 203-5796 Tie rod $3.54 1 usually ships 10-12 days
30 189-1492 Nut M8 $0.99 1 usually ships 10-12 days
31 203-5797 Screw M8x40 $0.99 1 usually ships 10-12 days
32 203-5798 Support $0.99 1 usually ships 10-12 days
33 203-5799 Clamp $1.41 1 usually ships 10-12 days
34 203-5800 Washer 4x12 steel inox $3.10 1 usually ships 10-12 days
35 203-4414 Washer $2.99 4 usually ships 10-12 days
36 203-5418 Washer $2.99 1 usually ships 10-12 days
