| # | Part | Description |
Req | Notes | Availability |
|---|

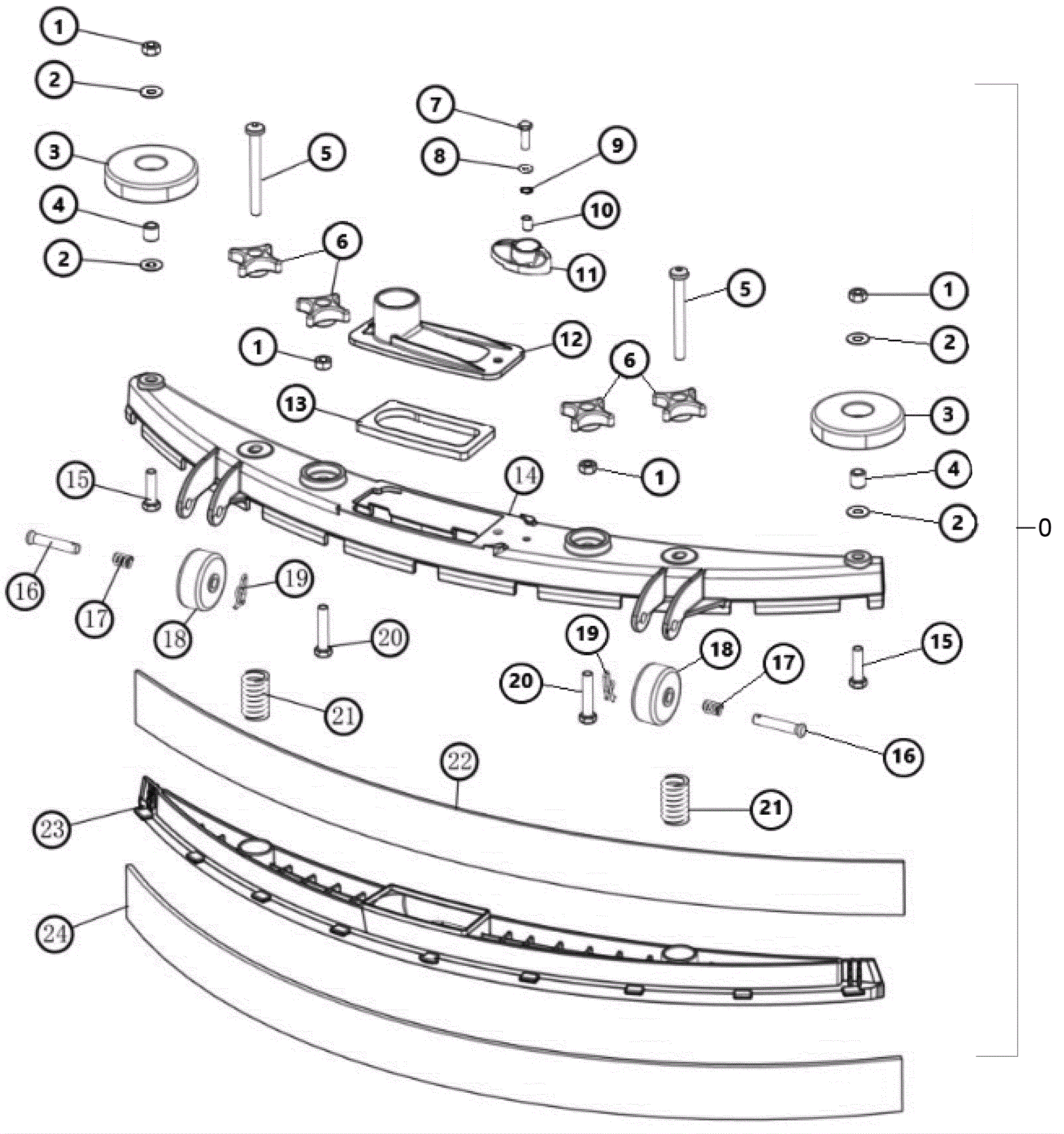

0 |
375-0196
|
20 inch (500mm) squeegee assembly |
1 |
(includes 1-24) |
|
1 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
3 |
175-7919
|
Guide wheel |
2 |
|
|
4 |
175-2249
|
Sleeve |
2 |
|
|
5 |
375-0262
|
Screw M8-1.25 x 80mm button socket stainless steel |
2 |
|
|
6 |
203-6382
|
Nut m8 (yellow) |
4 |
|
|
7 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
8 |
203-6215
|
Washer flat |
1 |
|
|
9 |
175-3058
|
Washer 3/4 wave |
1 |
|
|
10 |
175-0152
|
Spacer |
1 |
|
|
11 |
375-3281
|
Squeegee knob |
1 |
|
|
12 |
375-0263
|
Squeegee water trap cover |
1 |
|
|
13 |
203-6383
|
Silencer |
1 |
|
|
14 |
375-0197
|
20 inch squeegee weldment |
1 |
|
|
15 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
2 |
|
|
16 |
175-2592
|
Clevis Pin 0.37 D X 1.75 L |
2 |
|
|
17 |
175-7931
|
Compression spring |
2 |
|
|
18 |
991-2013
|
Wheel |
2 |
|
|
19 |
375-0071
|
Cotter hair pin |
2 |
|
|
20 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
21 |
275-0143
|
Compression spring |
2 |
|
|
22 |
375-0199
|
Squeegee blade 20 inch (500mm) linatex front |
1 |
|
|
23 |
375-0198
|
20 inch (500mm) squeegee retainer |
1 |
|
|
24 |
375-0260
|
Squeegee blade 20 inch (500mm) linatex rear |
1 |
|
|
