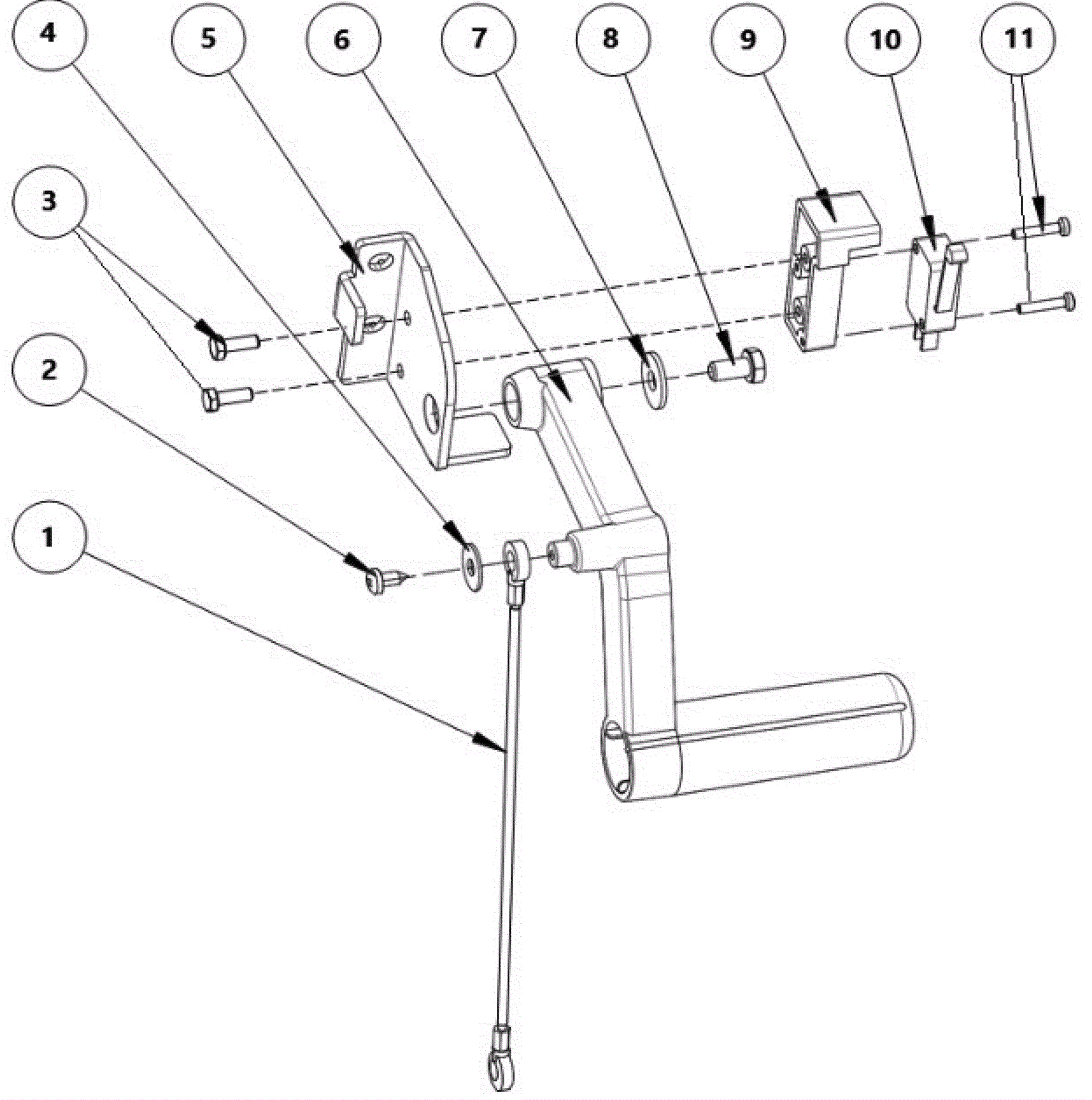

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6370
|
Squeegee lift cable |
1 |
|
|
2 |
203-6340
|
Screw 4 X 10 |
1 |
|
|
3 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
2 |
|
|
4 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
5 |
203-6378
|
Suction lifiting bracket |
1 |
|
|
6 |
203-6379
|
Suction lifiting handle |
1 |
|
|
7 |
203-6215
|
Washer flat |
1 |
|
|
8 |
203-6245
|
Bolt M6 x 12 hex |
1 |
|
|
9 |
203-6380
|
Microswitch mounting plate |
1 |
|
|
10 |
203-6381
|
Single pole microswitch |
1 |
|
|
11 |
999-1180
|
Screw M3-.5 x 16mm pan head stainless steel |
1 |
|
|
