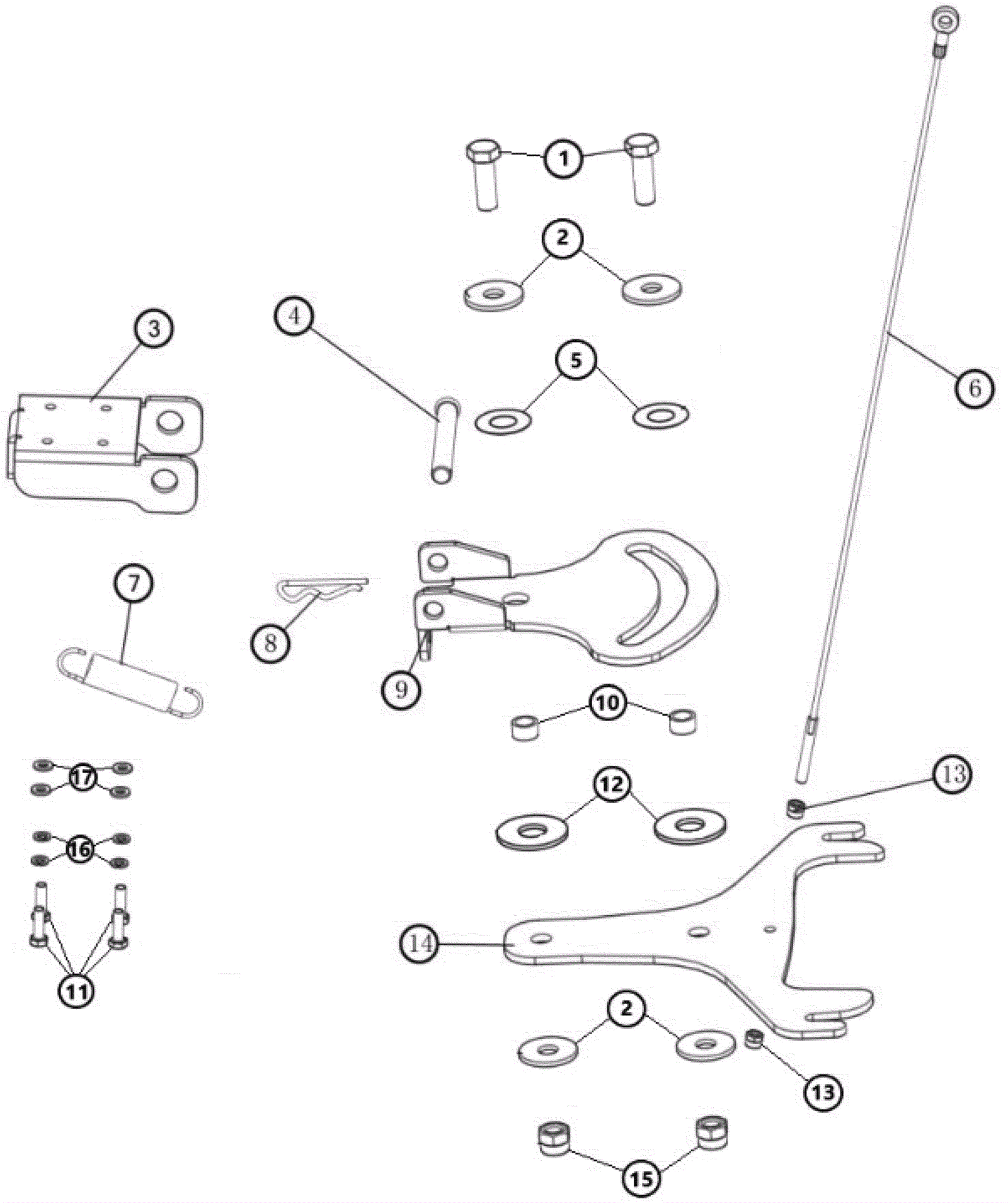

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6365
|
Screw M12 x 35 |
2 |
|
|
2 |
203-6366
|
Washer |
4 |
|
|
3 |
203-6367
|
Charging connector plate |
1 |
|
|
4 |
203-6368
|
Pin |
1 |
|
|
5 |
203-6369
|
Gasket |
2 |
|
|
6 |
203-6370
|
Squeegee lift cable |
1 |
|
|
7 |
203-6371
|
Suction spring |
1 |
|
|
8 |
203-6372
|
Hitch pin clip |
1 |
|
|
9 |
203-6373
|
Suction and scrape fixed plate |
1 |
|
|
10 |
203-6374
|
Suction and pick sleeve |
2 |
|
|
11 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
12 |
203-6375
|
Gasket |
2 |
|
|
13 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
14 |
203-6376
|
Squeegee plate angle bracket |
2 |
|
|
15 |
203-6377
|
Self locking nut |
2 |
|
|
16 |
203-6216
|
Washer M6 split |
4 |
|
|
17 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
