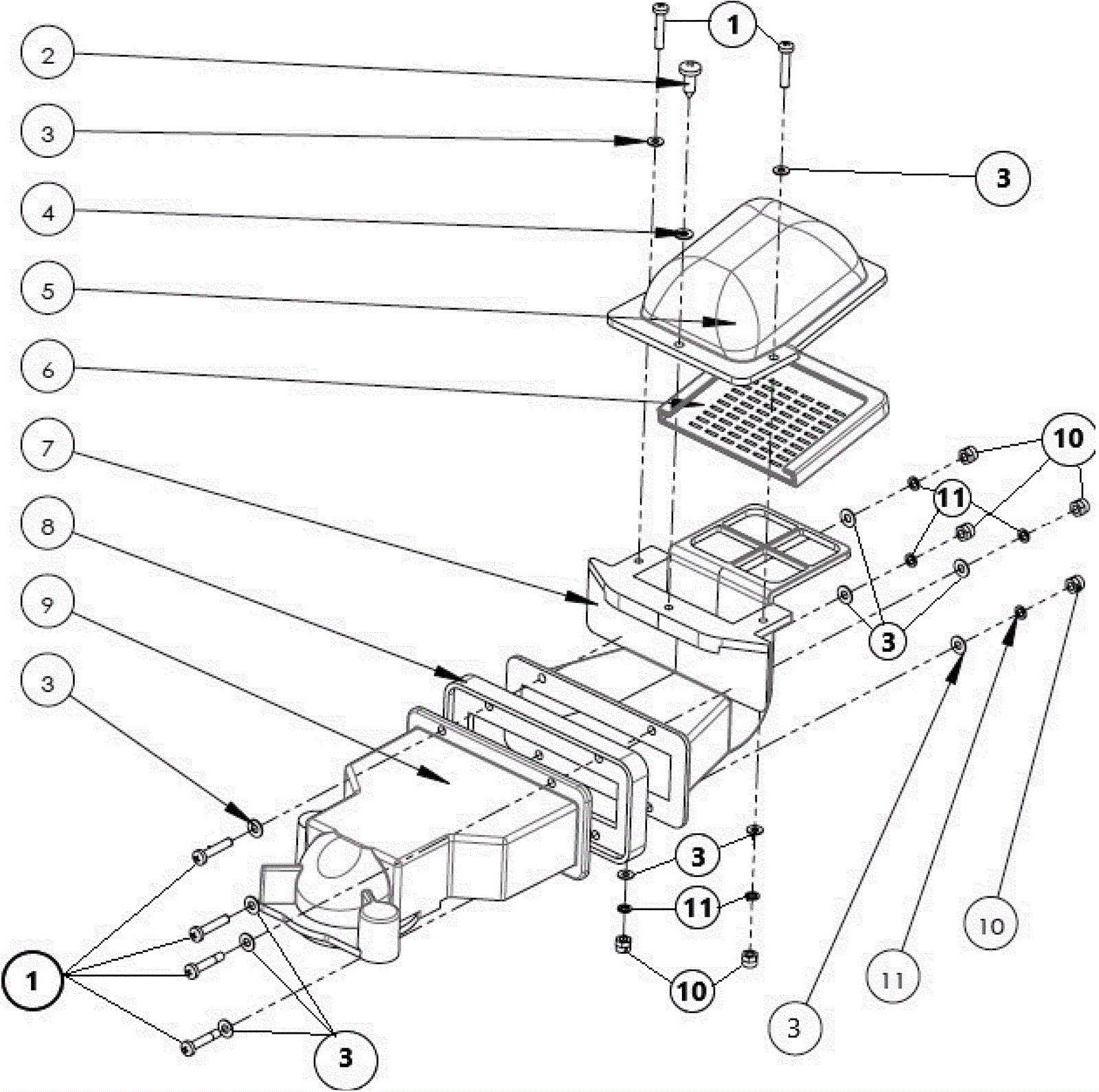

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1180
|
Screw M3-.5 x 16mm pan head stainless steel |
6 |
|
|
2 |
203-6358
|
Screw 4 x 12 |
1 |
|
|
3 |
999-1521
|
Washer M3 flat stainless steel |
12 |
|
|
4 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
5 |
203-6359
|
Filter screen cover |
1 |
|
|
6 |
203-6360
|
Tank filter screen |
1 |
|
|
7 |
203-6361
|
Front duct |
1 |
|
|
8 |
203-6362
|
Filter assembly (leather) |
1 |
|
|
9 |
203-6363
|
Screen installation base |
1 |
|
|
10 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
6 |
|
|
11 |
203-6364
|
M3 spring washer |
6 |
|
|
