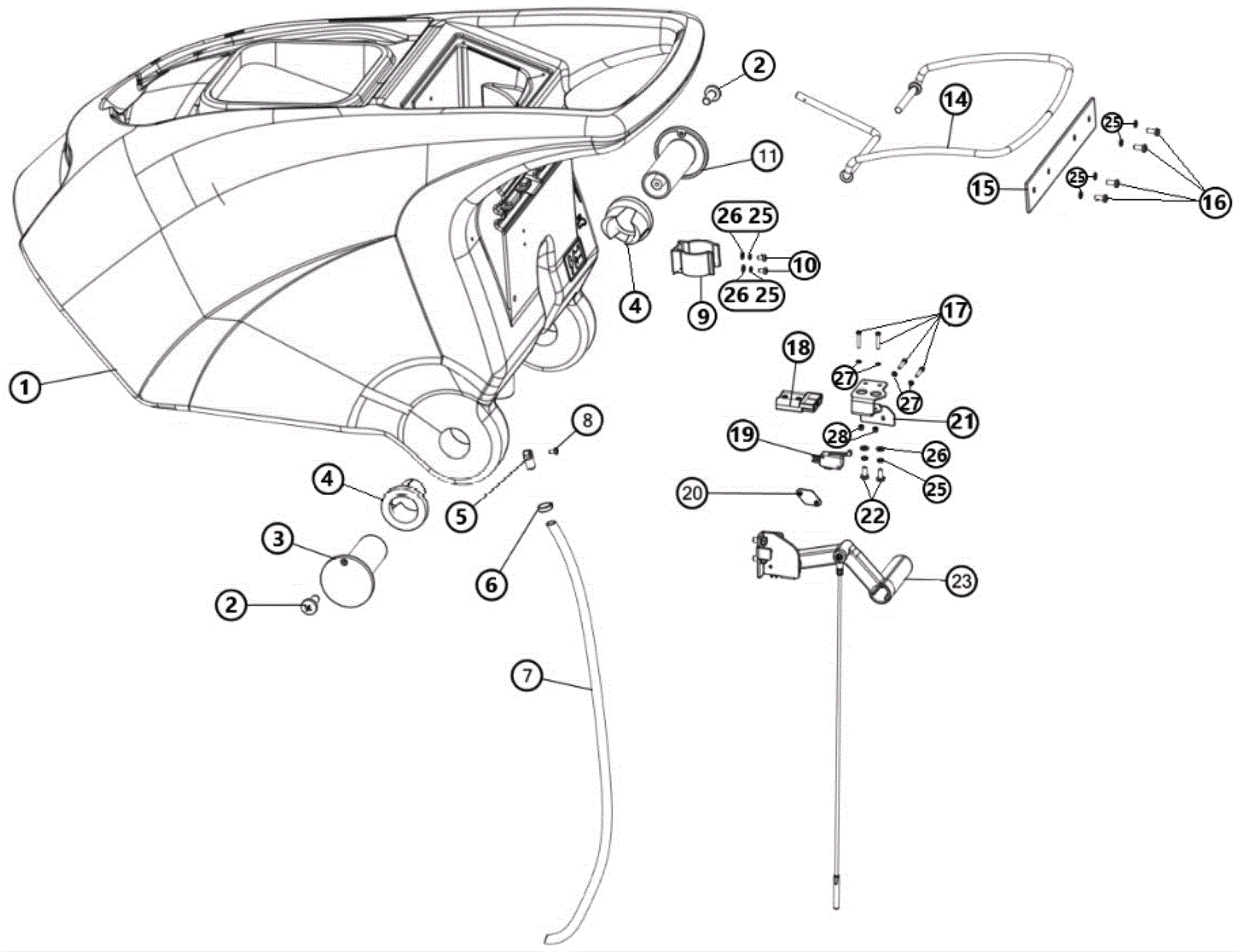

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6315
|
Solution tank (apple green) |
1 |
|
|
2 |
203-6340
|
Screw 4 X 10 |
2 |
|
|
3 |
203-6341
|
Cabinet connection cover |
1 |
|
|
4 |
203-6342
|
Box cover bushing |
2 |
|
|
5 |
203-6343
|
Pipe fixed joint plug |
1 |
|
|
6 |
203-6344
|
Spring clamp plug |
2 |
|
|
7 |
203-6345
|
PVC hose transparent |
1 |
|
|
8 |
203-6252
|
Bolt M4 x 16mm hex |
1 |
|
|
9 |
203-6248
|
Drain hose support |
1 |
|
|
10 |
203-6246
|
Screw M4 x 12mm pan head phillips |
2 |
|
|
11 |
203-6346
|
Cabinet connection cover |
1 |
|
|
12 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
13 |
203-6347
|
Water handle |
1 |
|
|
14 |
203-6348
|
Drive switch handle |
1 |
|
|
15 |
203-6349
|
Switch arm cover plate |
1 |
|
|
16 |
203-6252
|
Bolt M4 x 16mm hex |
4 |
|
|
17 |
203-6350
|
Screw M3 x 20mm pan head phillips |
4 |
|
|
18 |
203-6351
|
Anderson connector |
1 |
|
|
19 |
203-6352
|
Microswitch |
1 |
|
|
20 |
203-6353
|
Switch plate nut |
1 |
|
|
21 |
203-6354
|
Charging mircroswitch fixing plate |
1 |
|
|
22 |
203-6286
|
Screw M4 x 10 |
2 |
|
|
23 |
N/A
|
Not available |
1 |
(See squeegee lift assembly) |
|
24 |
203-6355
|
Water level tube float |
1 |
|
|
25 |
999-0533
|
Washer M4 split lock plain finish |
4 |
|
|
26 |
999-9097
|
Washer M8 flat stainless steel |
8 |
|
|
27 |
999-1521
|
Washer M3 flat stainless steel |
4 |
|
|
28 |
203-6356
|
Nut |
2 |
|
|
