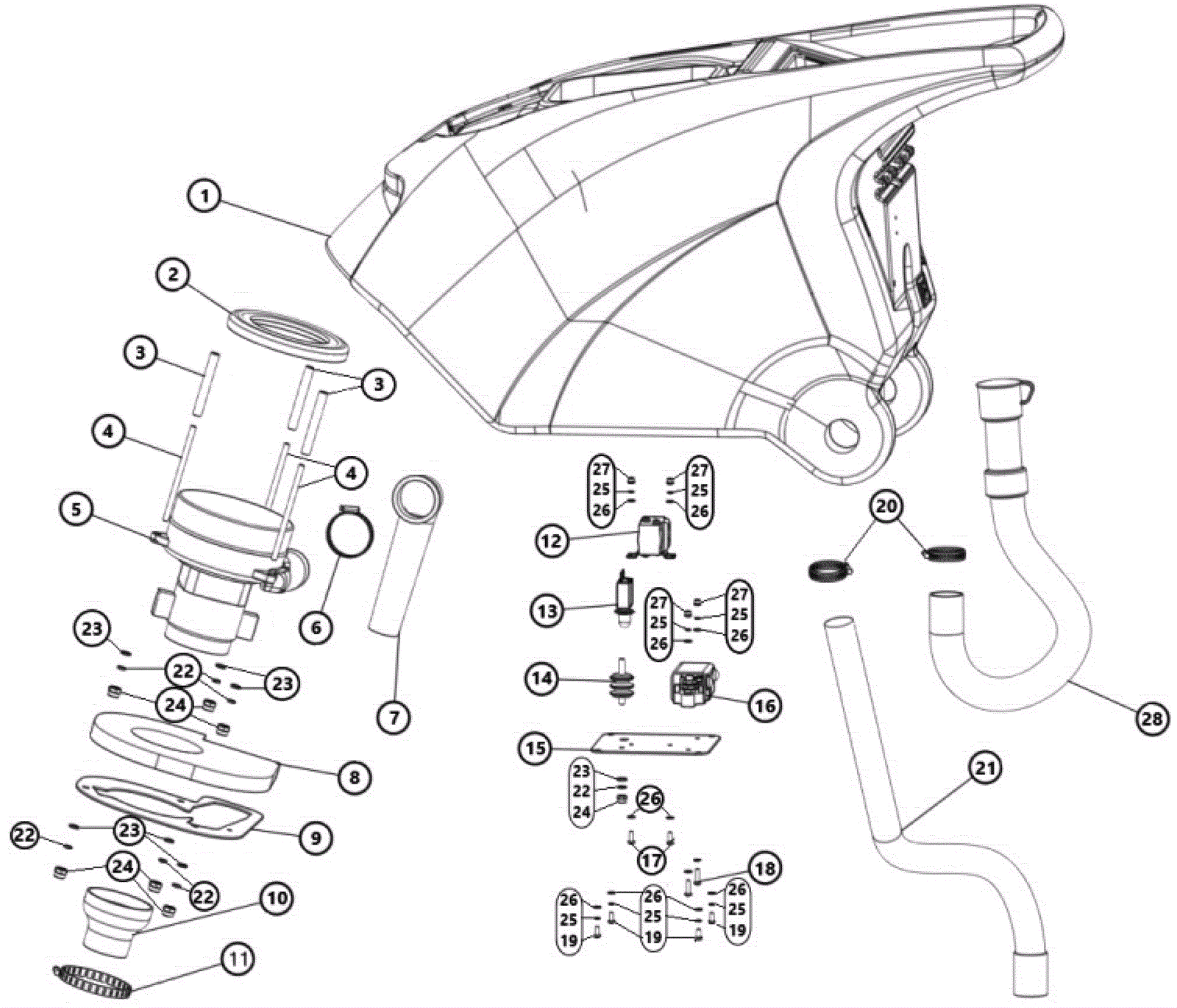

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6315
|
Solution tank (apple green) |
1 |
|
|
2 |
203-6322
|
Vacuum motor bottom pad |
1 |
|
|
3 |
203-6323
|
Motor mounting solenoid |
3 |
|
|
4 |
203-6324
|
Vacuum motor screw |
3 |
|
|
5 |
203-6325
|
Vacuum motor |
1 |
|
|
6 |
203-6326
|
Adjustable hose clamp |
1 |
|
|
7 |
203-6327
|
Vacuum motor exhaust duct |
1 |
|
|
8 |
203-6328
|
Silencing cotton non-self adhesive |
1 |
|
|
9 |
203-6329
|
Vacuum motor dust shield |
1 |
|
|
10 |
203-6330
|
Vacuum motor suction hood |
1 |
|
|
11 |
203-6331
|
Adjustable hose clamp |
1 |
|
|
12 |
203-6261
|
DC contactor |
1 |
|
|
13 |
203-6332
|
30A braker w/ waterproof cap |
1 |
|
|
14 |
203-6333
|
Insulated pile head |
1 |
|
|
15 |
203-6334
|
Electric fixing plate |
1 |
|
|
16 |
203-6335
|
100A box w/strip fuse |
1 |
|
|
17 |
203-6246
|
Screw M4 x 12mm pan head phillips |
2 |
|
|
18 |
203-6285
|
Screw M4 x 16 |
2 |
|
|
19 |
203-6286
|
Screw M4 x 10 |
4 |
|
|
20 |
203-6336
|
Adjustable hose clamp |
2 |
|
|
21 |
375-8167
|
Rear squeegee hose |
1 |
|
|
22 |
203-6216
|
Washer M6 split |
7 |
|
|
23 |
999-1261
|
Washer M6 flat stainless steel |
7 |
|
|
24 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
7 |
|
|
25 |
999-0533
|
Washer M4 split lock plain finish |
8 |
|
|
26 |
999-9097
|
Washer M8 flat stainless steel |
10 |
|
|
27 |
203-6338
|
Self locking nut |
4 |
|
|
28 |
203-6339
|
Drain hose |
1 |
|
|
