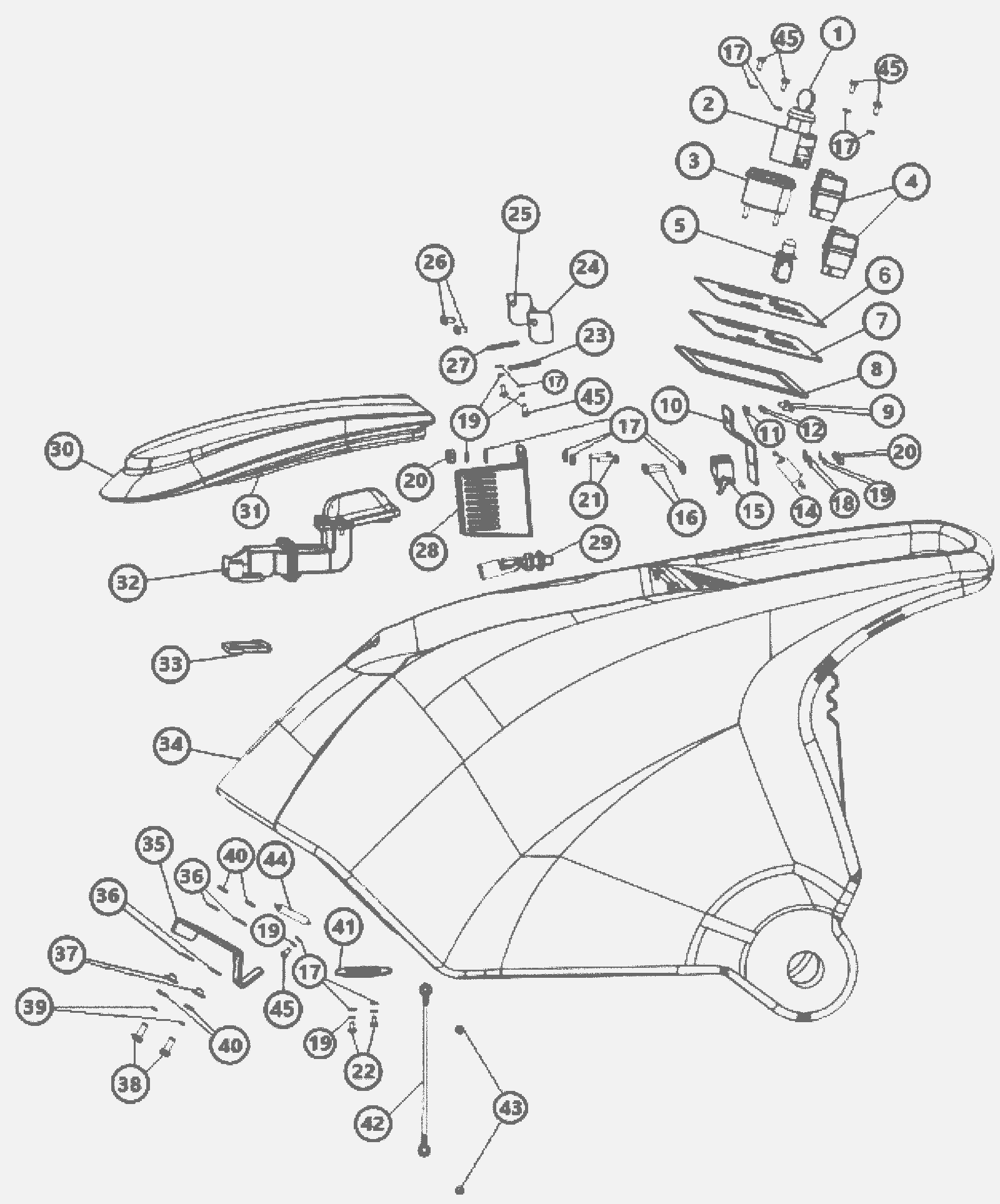

Recovery Tank Assembly - 1

#PartDescription ReqNotesAvailability
1 203-6290 Key (pkg of 2) 1
2 203-6291 Power switch 1
3 203-6292 24V battery gauge 1
4 203-6293 Brush and suction power switch 2
5 203-6294 Protector 5A w/ waterproof cap 1
6 203-6295 Panel decal 1
7 203-6296 Control panel 1
8 203-6297 Control panel gasket 1
9 203-6298 Screw 5 x 16 2
10 203-6299 Motor switch mounting plate 1
11 999-0393 Washer 3/16 flat aluminum 2
12 203-6301 Split washer M5 2
14 203-6302 Drive switch handle spring 1
15 203-6303 Micro switch 1
16 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel 2
17 999-9097 Washer M8 flat stainless steel 14
18 999-9089 Washer M4 flat stainless steel 2
19 999-0533 Washer M4 split lock plain finish 7
20 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
21 203-6285 Screw M4 x 16 2
22 203-6304 Screw M4 x 16 2
23 203-6305 Lid hinge right gasket (black) 1
24 203-6306 Lid hinge right (black) 1
25 203-6307 Square cover left hinge 1
26 203-6308 Screw 4 x 12 2
27 203-6309 Lid hinge left gasket (black) 1
28 203-6310 Sensor cover 1
29 203-6311 Recovery sensor harness 1
30 203-6312 Recovery tank cover 1
31 203-6313 Cover seal strip (black) 1
32 N/A Not available 1 (See recovery tank filter assembly)
33 203-6314 Strainer pad 1
34 203-6315 Solution tank (apple green) 1
35 203-6316 Recovery tank handle 1
36 203-6317 Gasket (thin) 4
37 203-6318 Handle bushing 2
38 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
39 203-6216 Washer M6 split 2
40 203-6215 Washer flat 4
41 203-6319 Recovery tank strainer pad 1
42 203-6320 Recovery tank wire strap 1
43 999-1257 Screw M6-1 x 16mm pan head Phillips 2
44 203-6321 Handle spring 1
45 203-6286 Screw M4 x 10 7
