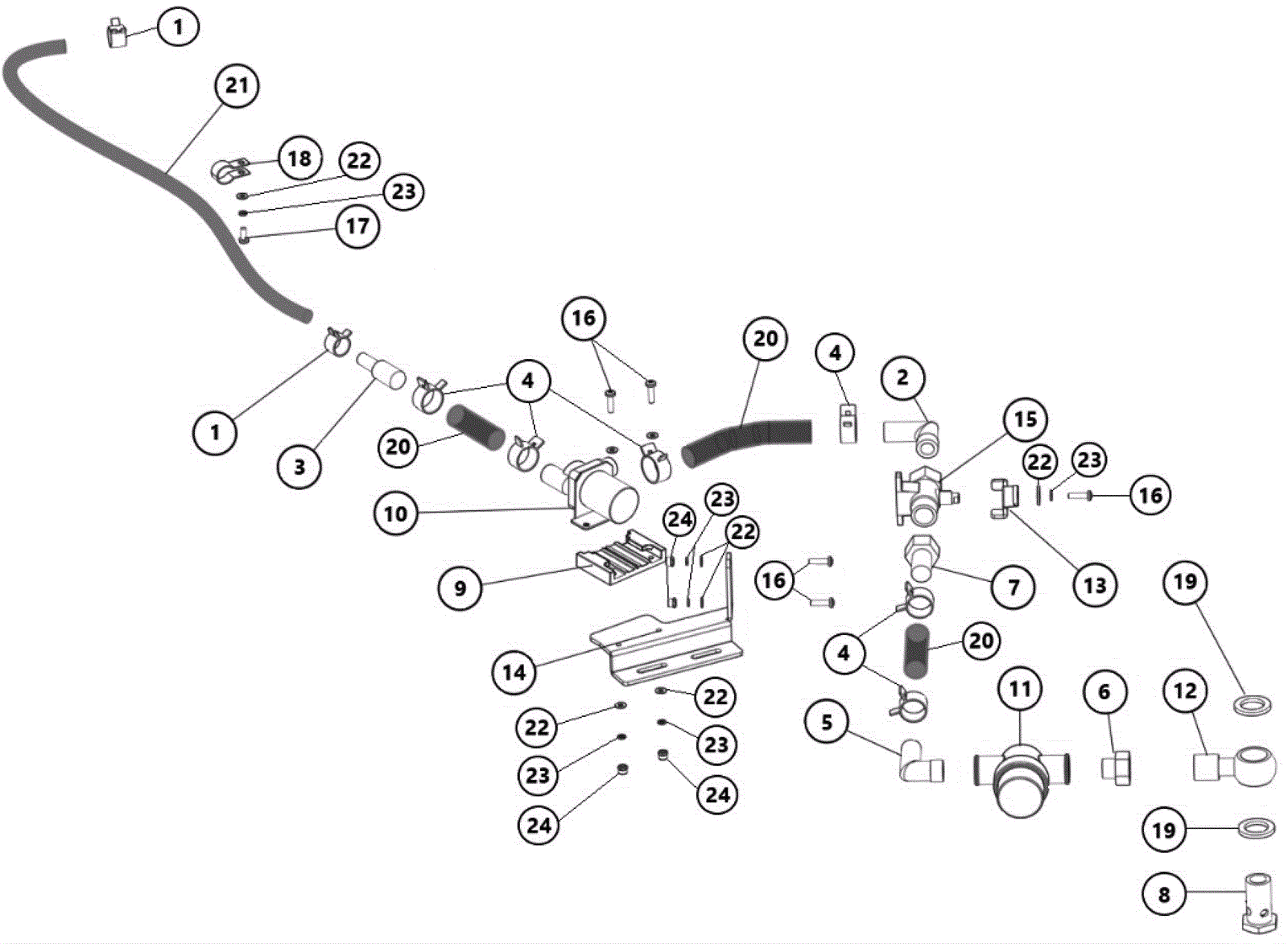

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6270
|
Clamp |
2 |
|
|
2 |
203-6271
|
Elbow fitting |
1 |
|
|
3 |
203-6272
|
Fitting |
1 |
|
|
4 |
203-6273
|
Clamp |
6 |
|
|
5 |
203-6274
|
Elbow fitting |
1 |
|
|
6 |
203-6275
|
Fitting |
1 |
|
|
7 |
203-6276
|
Fitting |
1 |
|
|
8 |
203-6277
|
Outlet fitting joint |
1 |
|
|
9 |
203-6278
|
Electromagnetic bracket |
1 |
|
|
10 |
203-6279
|
Solenoid valve harness assembly |
1 |
|
|
11 |
203-6280
|
Filter |
1 |
|
|
12 |
203-6281
|
Fitting |
1 |
|
|
13 |
203-6282
|
Water switch handle |
1 |
|
|
14 |
203-6283
|
Solenoid valve holder |
1 |
|
|
15 |
203-6284
|
Ball valve |
1 |
|
|
16 |
203-6285
|
Screw M4 x 16 |
5 |
|
|
17 |
203-6286
|
Screw M4 x 10 |
1 |
|
|
18 |
203-6287
|
Wire clamp |
1 |
|
|
19 |
203-6250
|
Drain plug gasket |
2 |
|
|
20 |
203-6288
|
Silicone tube |
3 |
|
|
21 |
203-6289
|
Silcone tube (clear) |
1 |
|
|
22 |
999-9097
|
Washer M8 flat stainless steel |
6 |
|
|
23 |
999-0533
|
Washer M4 split lock plain finish |
6 |
|
|
24 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
