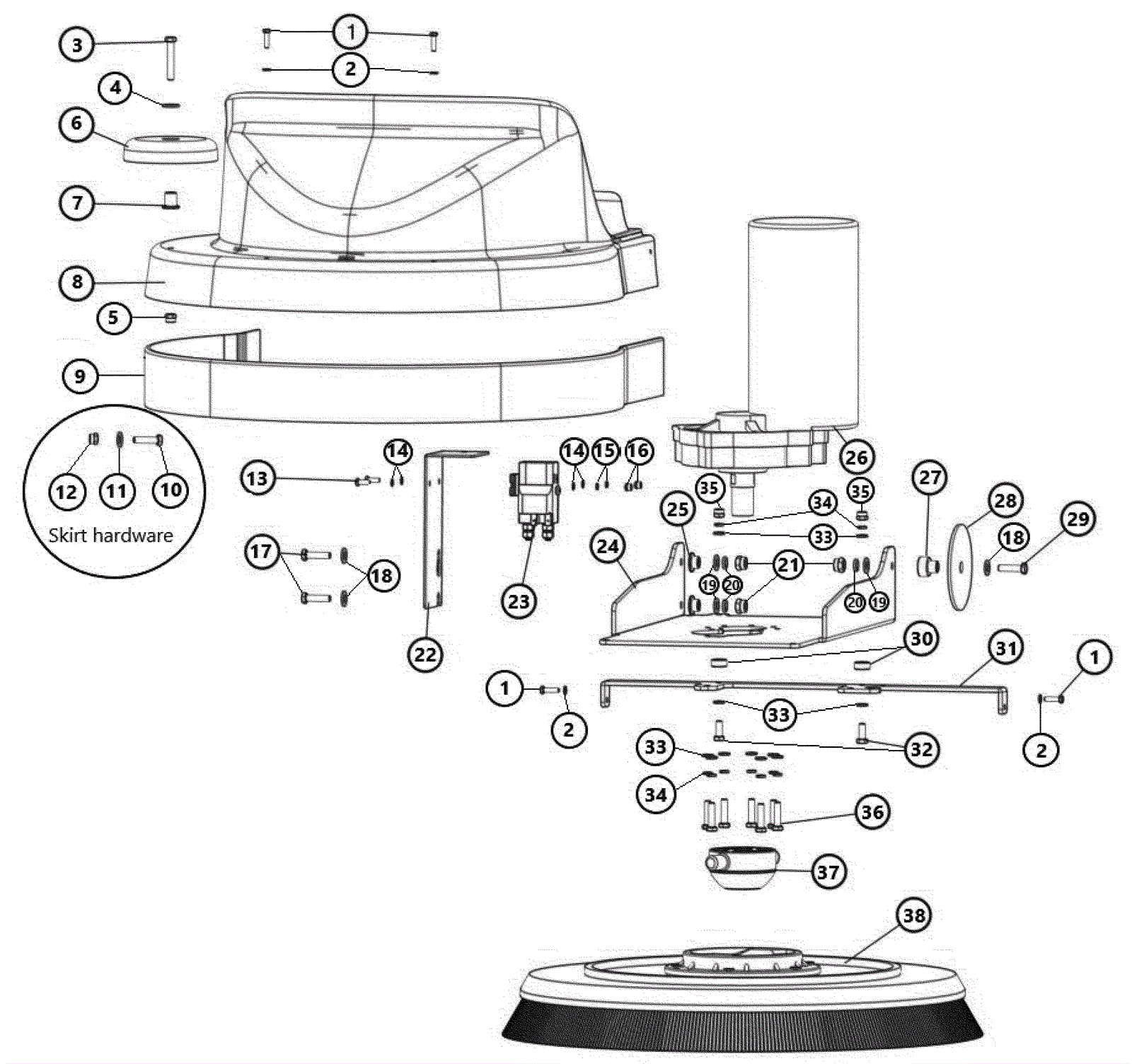

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6252
|
Bolt M4 x 16mm hex |
4 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
3 |
203-6253
|
Bolt M6 x 30mm hex |
1 |
|
|
4 |
203-6215
|
Washer flat |
1 |
|
|
5 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
6 |
203-6254
|
Guide wheel |
1 |
|
|
7 |
203-6255
|
Guide wheel bushing |
1 |
|
|
8 |
203-6256
|
Brush skirt cover |
1 |
|
|
9 |
203-6257
|
Skirt hem |
1 |
|
|
10 |
203-6258
|
Screw M6 x 20mm |
7 |
|
|
11 |
203-6215
|
Washer flat |
7 |
|
|
12 |
203-6259
|
M6 cover nut |
7 |
|
|
13 |
203-6246
|
Screw M4 x 12mm pan head phillips |
2 |
|
|
14 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
15 |
999-0533
|
Washer M4 split lock plain finish |
2 |
|
|
16 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
17 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
18 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
|
19 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
20 |
203-6210
|
Washer M8 split |
3 |
|
|
21 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
22 |
203-6260
|
DC contactor mounting |
1 |
|
|
23 |
203-6261
|
DC contactor |
1 |
|
|
24 |
203-6262
|
Motor mounting plate |
1 |
|
|
25 |
203-6226
|
Motor connection copper bushing |
2 |
|
|
26 |
203-6263
|
Brush motor |
1 |
|
|
27 |
203-7222
|
Bushing |
1 |
|
|
28 |
203-6264
|
Forearm lever shock pad |
1 |
|
|
29 |
999-0787
|
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
|
30 |
203-6265
|
Disc brush cover outer liner |
2 |
|
|
31 |
203-6266
|
Dust shield bracket |
1 |
|
|
32 |
203-6267
|
Bolt M6 x 35 hex |
2 |
|
|
33 |
999-1261
|
Washer M6 flat stainless steel |
11 |
|
|
34 |
203-6216
|
Washer M6 split |
9 |
|
|
35 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
36 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
7 |
|
|
37 |
203-6268
|
Brush buckle aluminum |
1 |
|
|
38 |
203-6269
|
19 inch brush |
1 |
|
|
