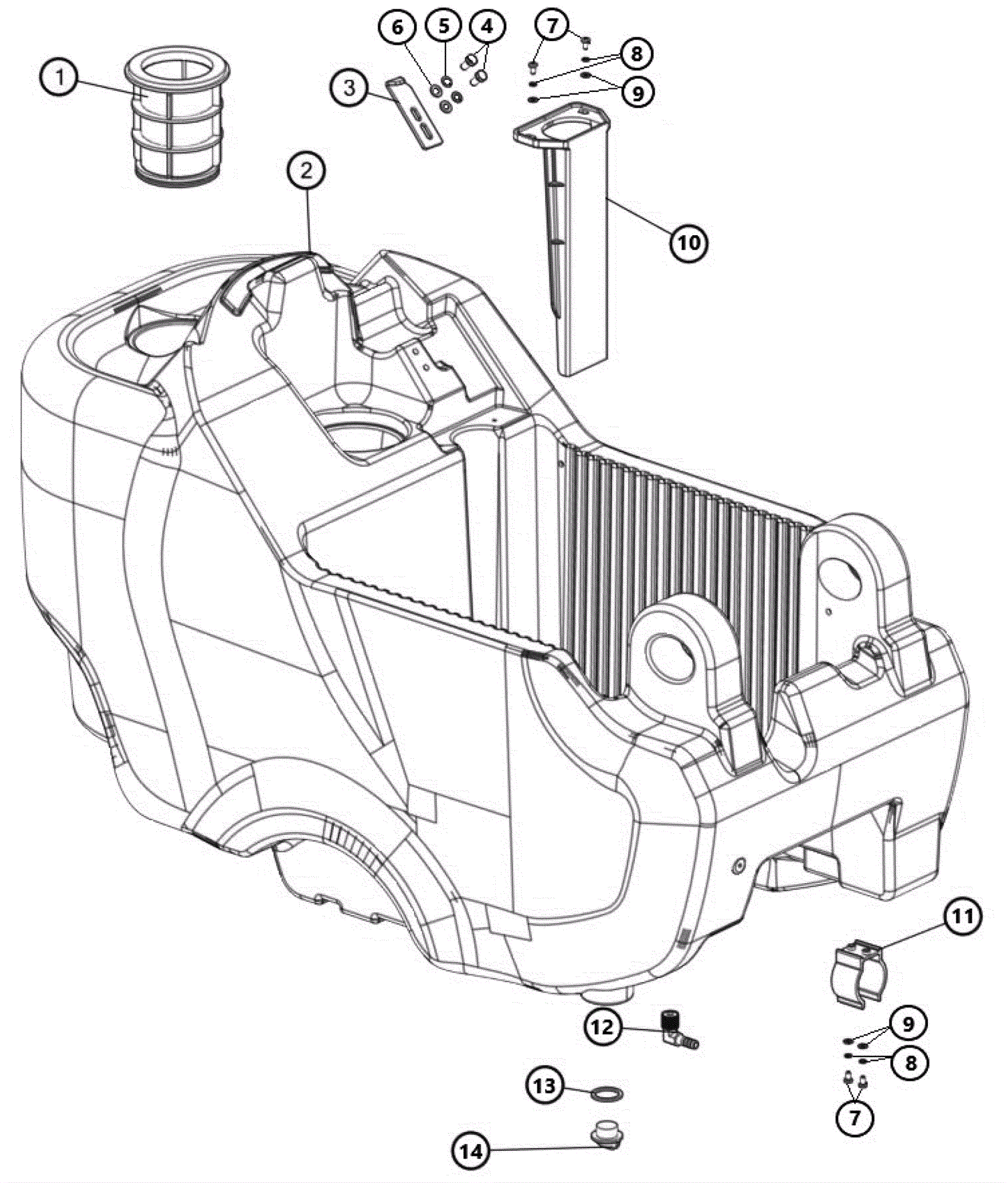

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6242
|
Water filter |
1 |
|
|
2 |
203-6243
|
Clean water tank (dark gray) |
1 |
|
|
3 |
203-6244
|
Recovery tank assistant handle |
1 |
|
|
4 |
203-6245
|
Bolt M6 x 12 hex |
2 |
|
|
5 |
203-6216
|
Washer M6 split |
2 |
|
|
6 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
7 |
203-6246
|
Screw M4 x 12mm pan head phillips |
4 |
|
|
8 |
999-0533
|
Washer M4 split lock plain finish |
4 |
|
|
9 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
10 |
203-6247
|
Motor injection duct |
1 |
|
|
11 |
203-6248
|
Drain hose support |
1 |
|
|
12 |
203-9127
|
Fitting 1/8 external 90 |
1 |
|
|
13 |
203-6250
|
Drain plug gasket |
1 |
|
|
14 |
203-6251
|
Water tank drain plug |
1 |
|
|
