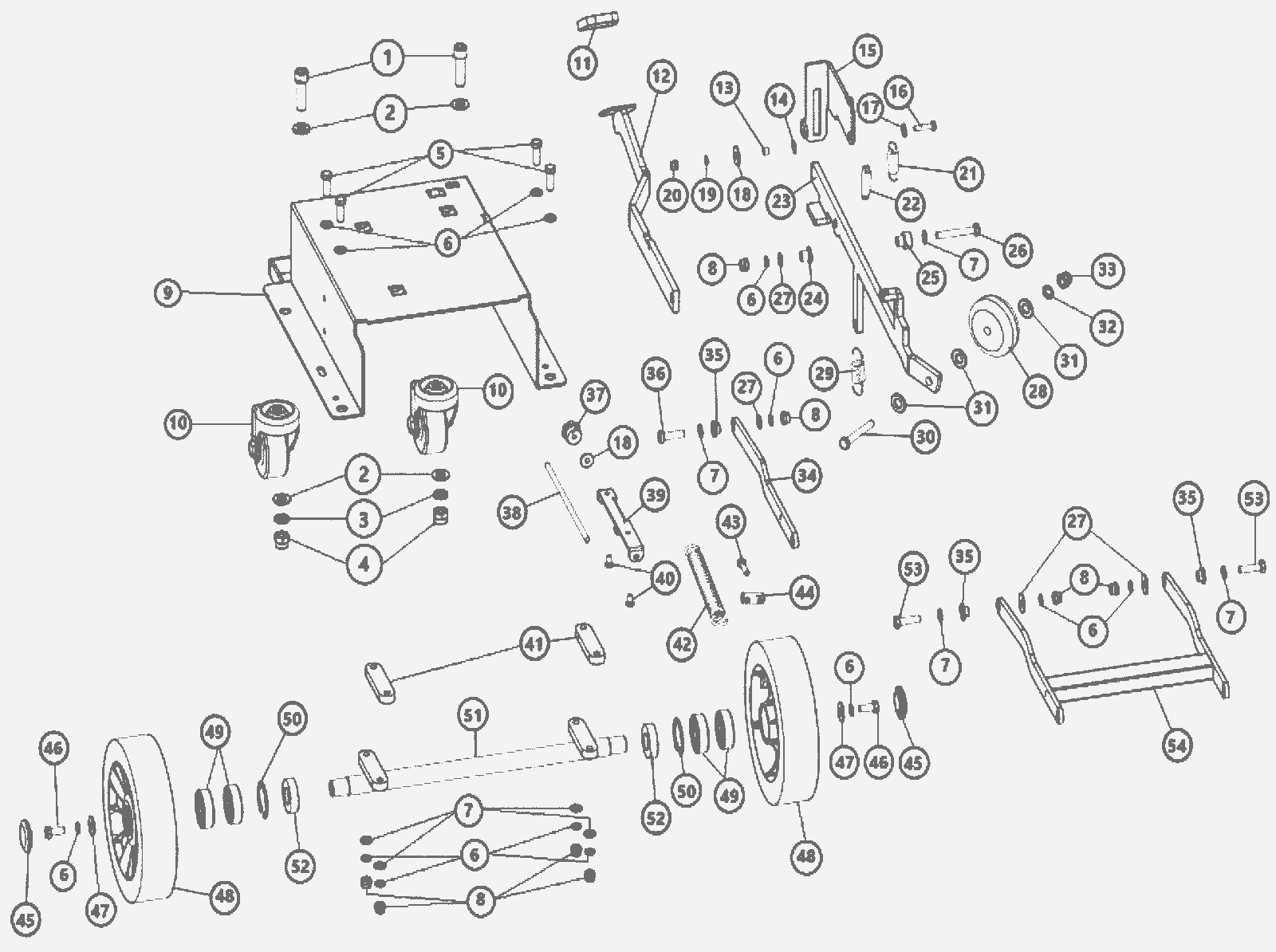

Main Frame Assembly

#PartDescription ReqNotesAvailability
1 203-6208 Bolt M12 x 40 allen head 2
2 999-1346 Washer M12 flat stainless steel 4
3 203-6209 Washer M12 split 2
4 999-0503 Nut M12-1.75 hex stainless steel 2
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
6 203-6210 Washer M8 split 14
7 999-9097 Washer M8 flat stainless steel 8
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 8
9 203-6211 Base plate assembly 1
10 203-6212 Universal wheel 2
11 203-6213 Foot pedal cover 1
12 203-7217 Foot lever arm 1
13 203-6214 Brush plate adjustment bushing 1
14 203-7221 Gasket 1
15 203-7218 Brush plate adjustment 1
16 999-0779 Screw M6-1 x 25mm hex head plain finish 1
17 999-1261 Washer M6 flat stainless steel 1
18 203-6215 Washer flat 2
19 203-6216 Washer M6 split 1
20 999-0497 Nut M6-1 nylon insert lock stainless steel 1
22 203-7220 Pedal spring 1
23 203-6218 Forearm lever B (short height) 1
24 203-6219 Brush disc lifiting pedal (copper) 1
25 203-7222 Bushing 1
26 999-0788 Screw M8-1.25 x 55mm hex head stainless steel 1
27 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
28 203-6220 Single universal wheel 1
29 203-6221 High and low spring press wheel 1
30 203-6222 Outer bolt M10 x 65 hex 1
32 203-6224 Washer M10 split 1
33 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
34 203-6225 Motor conntector 1
35 203-6226 Motor connection copper bushing 3
36 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 1
37 203-6227 M6 square nut 1
38 203-6228 Screw M6 x 200 1
39 203-6229 Support angle 1
40 203-6230 Screw m6 x 10 hex countersunk socket head 2
41 203-6231 Axle pad 2
42 203-6232 Adjustment spring 1
43 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
44 203-6233 Tension spring pin 1
45 203-6234 Die-cast aluminum alloy wheel decor 2
46 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2
47 203-6235 M8 extra large washer 2
48 203-6236 Die-cast aluminum alloy rear wheel 2
49 203-6237 Waterproof bearing 4
50 203-6238 Snap ring 2
51 203-6239 Axle 1
52 203-6240 Oil seal 2
53 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 2
54 203-6241 Motor connection bracket 1
