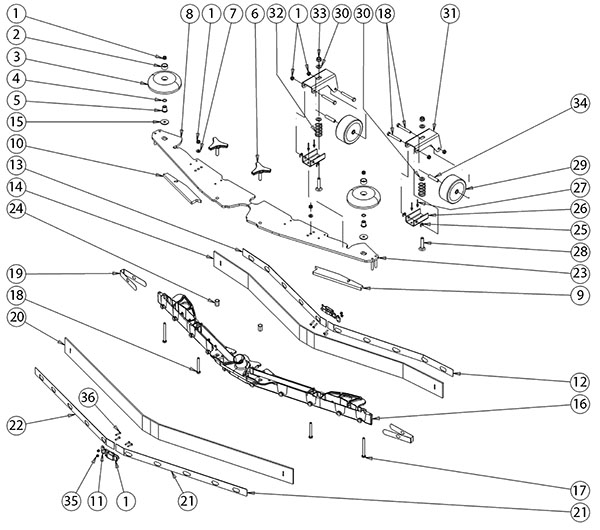

CT 100 Floor Wiper Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4765 Retainer closure $9.72 2 (after 09/2013) usually ships 5-15 days
2 189-5086 Bushing $14.41 2 usually ships 5-15 days
3 189-0060 Wheel $7.85 2 usually ships 5-15 days
4 189-0181 Gasket $2.77 2 usually ships 5-15 days
5 203-0920 Spacer $10.29 2 usually ships 5-15 days
6 203-4768 Knob $9.35 2 ships same day
7 203-1286 Washer D6 $2.79 2 usually ships 5-15 days
8 203-5434 Plate $49.19 1 usually ships 5-15 days
9 203-5437 Gasket $20.57 1 usually ships 5-15 days
10 203-5436 Gasket $20.57 1 usually ships 5-15 days
11 203-4772 Socket $7.11 2 (after 09/2013) usually ships 5-15 days
12a 203-5620 Bracket Call for price 1 (before 09/2013) usually ships 5-15 days
12b 203-5420 Sheet metal $32.91 1 (after 09/2013) usually ships 5-15 days
13a 203-5422 Sheet metal $32.35 1 (before 09/2013) usually ships 5-15 days
13b 203-5422 Sheet metal $32.35 1 (after 09/2013) usually ships 5-15 days
14 203-5008 Squeegee blade front $64.19 1 usually ships 5-15 days
15 189-1398 Washer 6 x 24 inch $2.79 2 usually ships 5-15 days
16 203-5423 Body $113.96 1 usually ships 5-15 days
17 203-4778 Screw 6 x 65 $3.94 2 usually ships 5-15 days
18 203-4779 Screw M6 x 50mm $3.94 6 usually ships 5-15 days
19 203-4585 Closure $1.23 2 usually ships 1-5 days
20 203-5027 Squeegee blade rear $74.68 1 usually ships 5-15 days
21a 203-5622 Bracket Call for price 1 (before 09/2013) usually ships 5-15 days
21b 203-5425 Sheet metal $32.16 1 (after 09/2013) usually ships 5-15 days
22a 203-5623 Bracket $61.96 1 (before 09/2013) ships same day
22b 203-5427 Sheet metal $33.47 1 (after 09/2013) usually ships 5-15 days
23 203-5433 Plate Call for price 1 usually ships 5-15 days
24 203-4786 Insert $2.46 2 usually ships 5-15 days
25 203-4065 Seeger $4.49 4 usually ships 5-15 days
26 203-5241 Support $41.80 2 usually ships 5-15 days
27 203-5624 Rivet $1.45 4 usually ships 5-15 days
28 203-5244 Screw M8 $0.99 2 usually ships 5-15 days
29 203-5625 Wheel $16.17 2 usually ships 5-15 days
30 189-0897 Washer D8 $2.79 4 usually ships 5-15 days
31 203-0916 Support $51.59 2 usually ships 5-15 days
32 189-0285 Spring $26.07 2 usually ships 5-15 days
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
34 203-5626 Tube $15.59 3 usually ships 5-15 days
35 203-4787 Nut M3 $3.37 8 (after 09/2013) usually ships 5-15 days
36 203-4788 Screw 3 x 8 inch $3.94 8 (after 09/2013) usually ships 5-15 days
