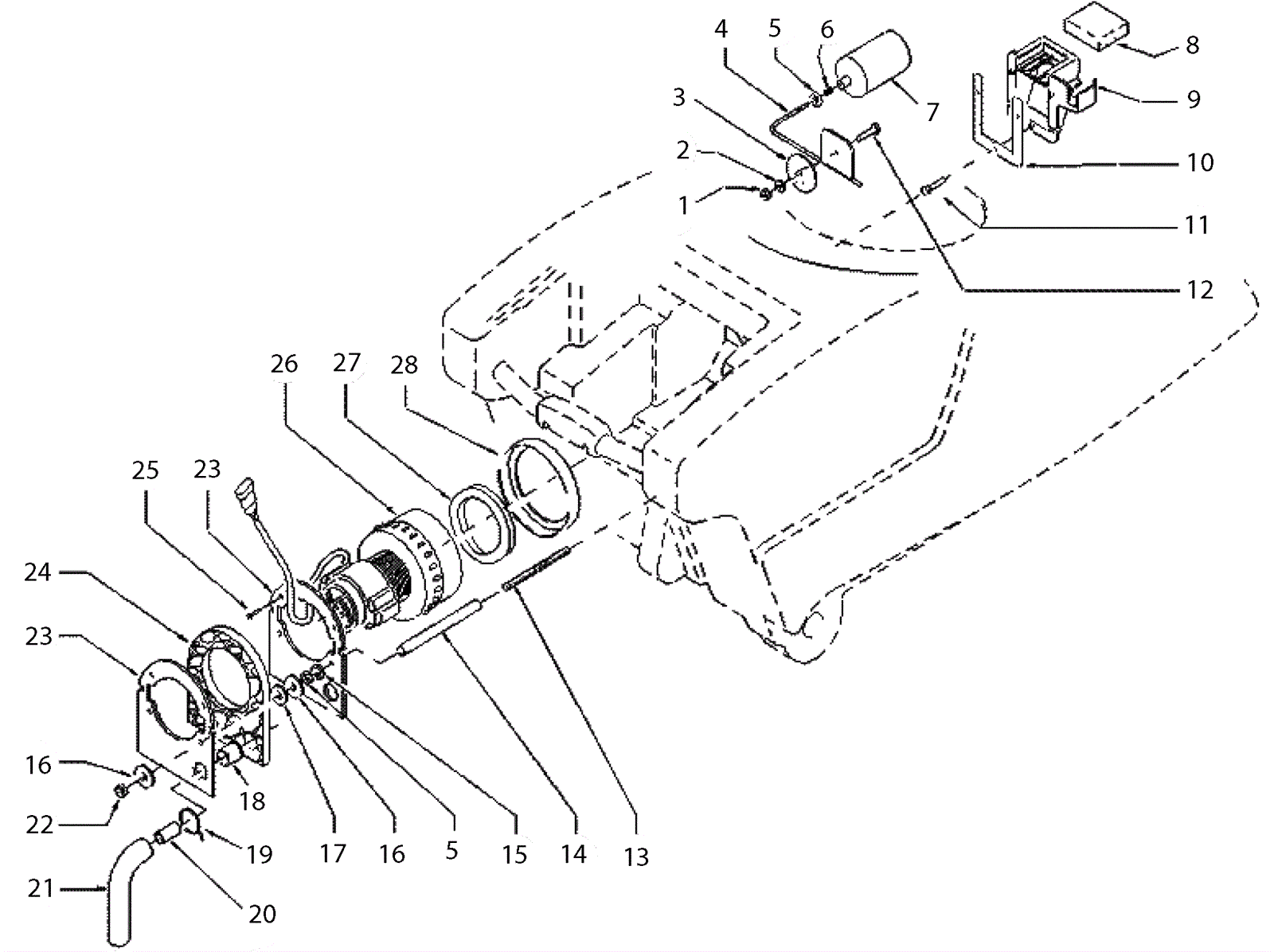

CT 100 Vacuum Cleaner Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-0789 Nut $3.67 1 (after 04/2004) usually ships 10-12 days
2 189-1462 Washer 5 x 14 inch $2.99 1 (after 04/2004) ships same day
3 189-1094 Gasket $5.50 1 (after 04/2004) usually ships 1-5 days
4 203-0799 Rod $133.46 1 (after 04/2004) usually ships 1-5 days
5 189-1489 Nut M6 $3.61 3 (after 04/2004) usually ships 1-5 days
6 189-2225 Insert $22.74 1 (after 04/2004) usually ships 1-5 days
7 189-2226 Float $31.45 1 (after 04/2004) usually ships 1-5 days
8 189-0265 Filter $21.86 1 (after 04/2004) usually ships 1-5 days
9 189-1096 Support $129.37 1 (after 04/2004) usually ships 1-5 days
10 189-1098 Gasket $6.18 1 usually ships 1-5 days
11 189-1486 Screw $2.60 3 (after 04/2004) usually ships 1-5 days
12 189-2227 Screw M5 $5.50 1 (after 04/2004) usually ships 1-5 days
13 189-1626 Screw $4.25 2 (after 04/2004) usually ships 1-5 days
14 203-5338 Spacer $18.60 2 (after 04/2004) usually ships 10-12 days
15 189-1391 Washer D6 $0.99 2 (after 04/2004) usually ships 10-12 days
16 189-1398 Washer 6 x 24 inch $2.99 4 usually ships 10-12 days
17 189-1498 Washer $4.00 2 (after 04/2004) usually ships 1-5 days
18 189-0082 Bushing $19.31 1 (after 04/2004) usually ships 1-5 days
19 189-0084 Clamp $6.26 1 (after 04/2004) usually ships 1-5 days
20 203-5630 Tube Call for price 1 (after 04/2004) usually ships 10-12 days
21 203-5631 Sound proofing $37.81 1 (after 04/2004) usually ships 10-12 days
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
23 203-5632 Flange $87.78 2 (after 04/2004) usually ships 10-12 days
24 203-5633 Sound proofing $27.13 1 (after 04/2004) usually ships 10-12 days
25 203-4874 Screw $4.25 4 (after 04/2004) usually ships 10-12 days
26 203-4666 Carbon brush (sold individually) $29.02 2 usually ships 10-12 days
27 203-5025 3 stage vacuum motor $315.67 1 (after 05/2004) usually ships 10-12 days
28 203-1715 Gasket $13.78 1 (after 04/2004) usually ships 10-12 days
29 189-0185 Gasket $12.47 1 (after 04/2004) usually ships 10-12 days
