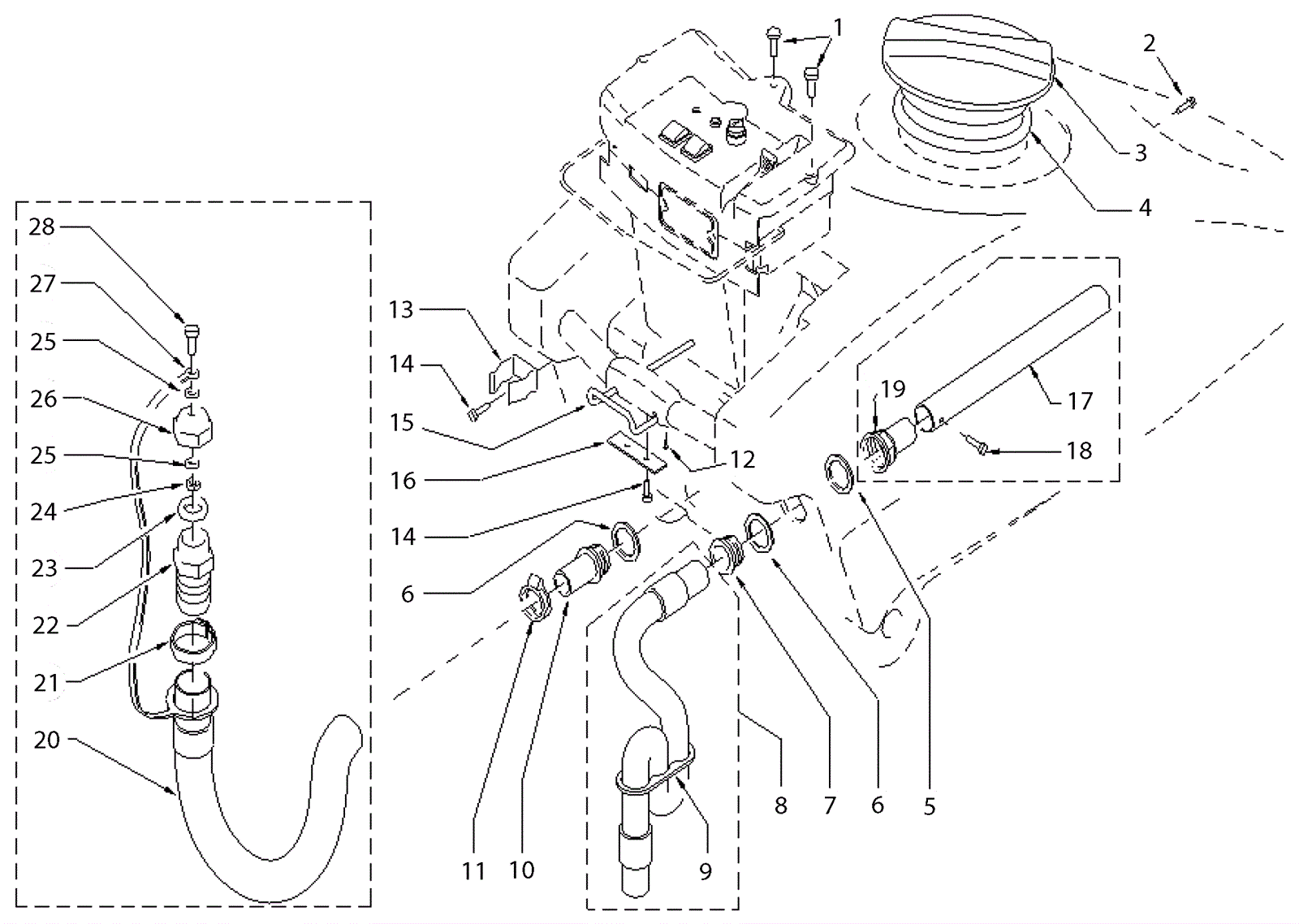

CT 100 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-1638 Screw 6 x 20 inch $6.26 3 (after 12/2002) usually ships 1-5 days
2 189-2230 Screw M6 $2.60 2 (after 12/2002) usually ships 1-5 days
3 203-4584 Cap $85.81 1 (after 01/2003) usually ships 11-14 days
4 189-0293 Gasket $46.82 1 (after 12/2002) usually ships 11-14 days
5 189-0694 Gasket $6.18 1 (after 12/2002) usually ships 1-5 days
6 203-0812 Gasket $5.24 2 (after 12/2002) usually ships 11-14 days
7 203-0813 Suction opening $40.54 1 (after 12/2002) usually ships 11-14 days
8 203-4300 Squeegee vacuum hose assembly $65.36 1 (after 12/2002) usually ships 11-14 days
9 189-0295 Plaque $18.67 1 (after 12/2002) usually ships 11-14 days
10 189-0693 Hose holder $22.48 1 (after 12/2002) usually ships 1-5 days
11 189-2258 Clamp $20.67 1 (after 12/2002) usually ships 1-5 days
12 189-1634 Screw 4 x 8 inch $4.20 1 (after 12/2002) usually ships 1-5 days
13 189-0239 Ductlock $17.18 1 (after 12/2002) usually ships 1-5 days
14 189-1629 Screw 5 x 12 inch screw $4.25 4 (after 12/2002) ships same day
15 189-2261 Push-button $449.71 1 usually ships 1-5 days
16 189-2260 Plaque $54.68 1 (after 12/2002) usually ships 1-5 days
17 189-2257 Pipe $35.83 1 (after 01/2003) usually ships 1-5 days
18 189-1451 Screw $4.25 1 usually ships 1-5 days
19 203-0810 Connector $16.09 1 (after 01/2003) usually ships 1-5 days
20 189-2259 Tube $58.64 1 usually ships 11-14 days
21 203-5619 Clamp $12.49 1 (after 01/2008) usually ships 11-14 days
22 189-2262 Nut $83.59 1 (01/2003-12/2007) usually ships 11-14 days
23 189-2263 Connector $32.30 1 (after 01/2003) usually ships 11-14 days
24 203-4140 Gasket $16.16 1 (after 01/2003) usually ships 11-14 days
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (after 01/2003) ships same day
26 189-0897 Washer D8 $2.99 2 (after 01/2003) usually ships 11-14 days
27 203-4335 Recovery tank drain hose plug $36.76 1 (after 01/2003) usually ships 11-14 days
28 189-1544 Screw $4.20 1 (after 01/2003) usually ships 11-14 days
N/S 203-4336 Strap $16.64 1 (after 01/2003) usually ships 1-5 days
