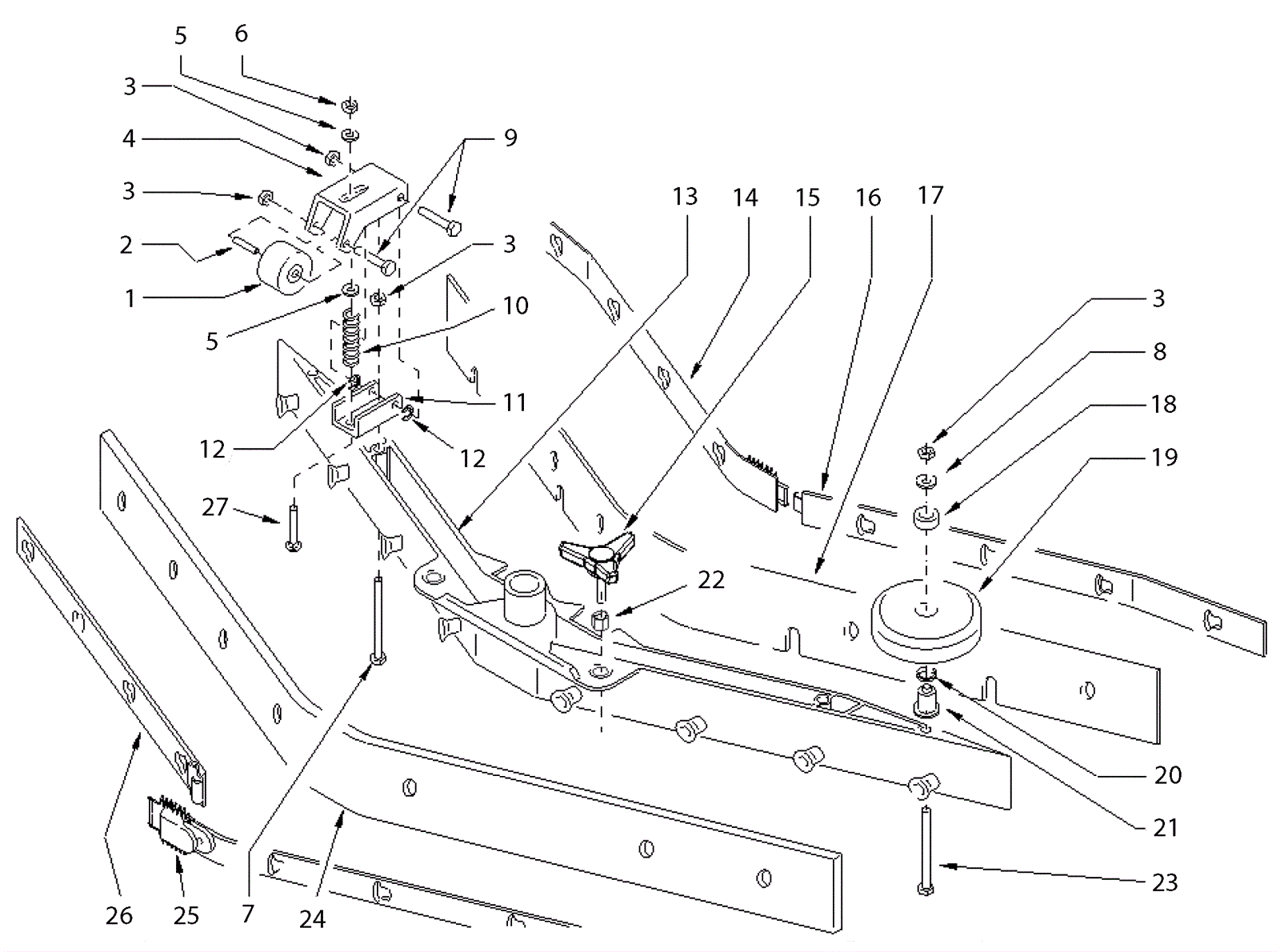

CT 100 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-2237 Wheel $41.87 2 usually ships 5-15 days
2 189-2238 Spacer D6 $31.21 2 usually ships 5-15 days
3 189-1536 Nut with nylon ring $1.98 8 usually ships 5-9 days
4 203-0916 Support $51.59 2 usually ships 5-15 days
5 189-0897 Washer D8 $2.79 4 usually ships 5-15 days
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
7 189-1509 Screw M6 $3.94 2 usually ships 5-15 days
8 203-1286 Washer D6 $2.79 2 usually ships 5-15 days
9 203-4779 Screw M6 x 50mm $3.94 4 usually ships 5-15 days
10 189-0285 Spring $26.07 2 usually ships 5-15 days
11 203-5241 Support $41.80 2 usually ships 5-15 days
12 203-4065 Seeger $4.49 4 usually ships 5-15 days
13 189-5084 Body $144.33 1 usually ships 5-15 days
14 203-3347 Left side squeegee blade retainer $118.45 1 usually ships 5-15 days
15 203-4768 Knob $9.35 2 ships same day
16 203-3348 Right side squeegee blade retainer $84.46 1 usually ships 5-15 days
17 203-1820 Squeegee blade curved front $123.49 1 usually ships 5-15 days
18 189-5086 Bushing $14.41 2 usually ships 5-15 days
19 189-0060 Wheel $7.85 2 usually ships 5-15 days
20 189-0181 Gasket $2.77 2 usually ships 5-15 days
21 203-0920 Spacer $10.29 2 usually ships 5-15 days
22 203-4338 Insert $5.28 2 usually ships 5-15 days
23 203-4778 Screw 6 x 65 $3.94 2 usually ships 5-15 days
24 203-1822 Squeegee blade curved rear $156.41 1 usually ships 5-15 days
25 203-5616 Blade holder $118.45 1 usually ships 5-15 days
26 189-5081 Squeegee blade holder $149.19 1 usually ships 1-5 days
27 203-5244 Screw M8 $0.99 2 usually ships 5-15 days
