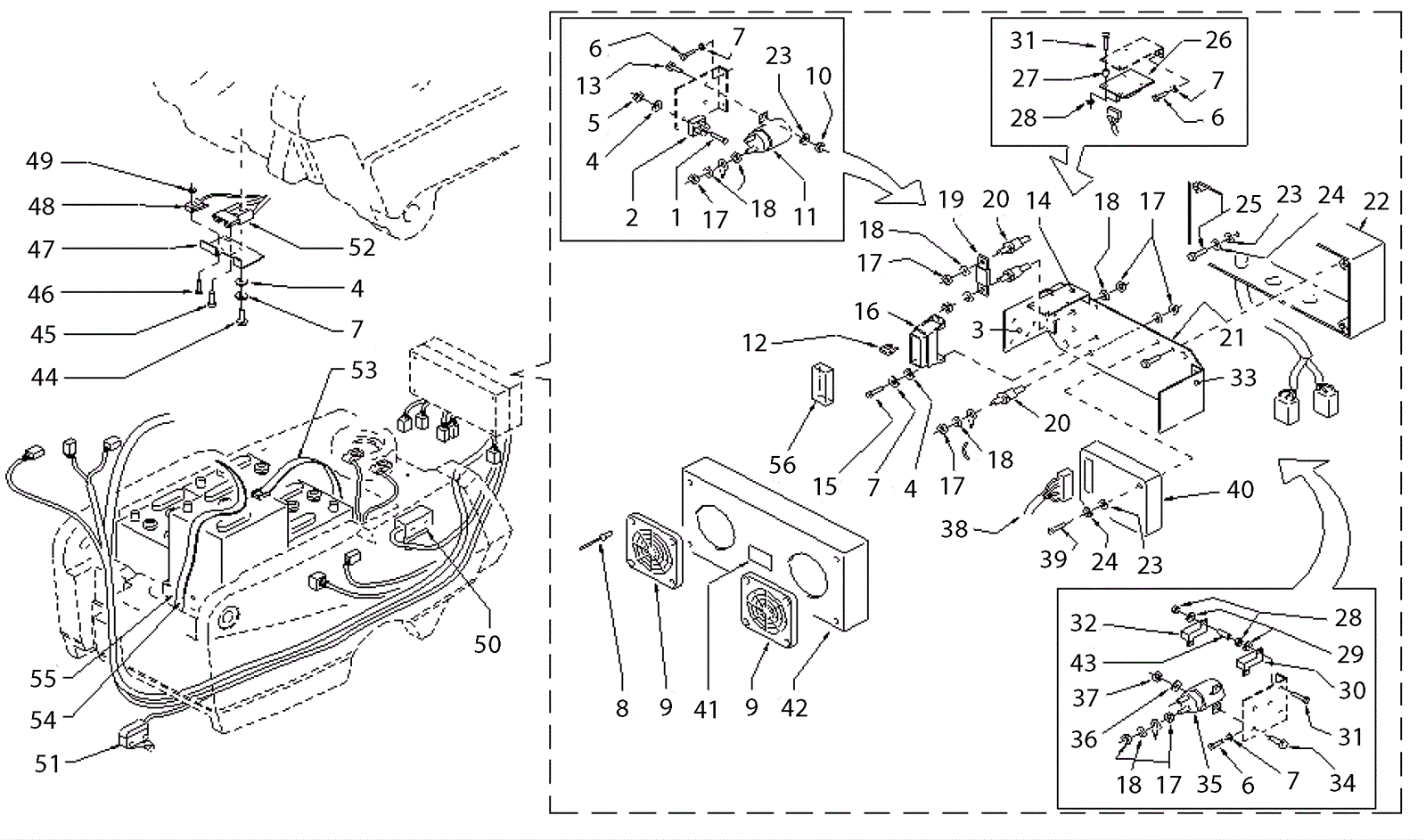

CT 100 Electrical Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 189-1527 Screw 4 x 16 inch $4.20 1 usually ships 1-5 days
2 189-0455 Bridge / Jumper $58.53 1 (after 12/2002) usually ships 1-5 days
3 203-1693 Bracket $41.64 1 (after 12/2002) usually ships 1-5 days
4 189-1375 Washer D4 $3.10 10 (after 12/2002) usually ships 11-14 days
5 189-1384 Nut M4 $0.99 2 (after 12/2002) usually ships 11-14 days
6 203-0960 Screw M4 $4.25 4 (after 12/2002) usually ships 1-5 days
7 203-4740 Washer D4 $2.99 6 (after 12/2002) usually ships 1-5 days
8 203-5608 Rivet $5.19 8 (after 12/2002) usually ships 11-14 days
9 203-1697 Grating $54.68 2 (after 12/2002) usually ships 1-5 days
10 189-1484 Nut M5 $3.67 2 usually ships 1-5 days
11 189-0105 Relay $214.81 1 usually ships 11-14 days
12a 189-0255 Fuse 40 amp $6.26 1 (after 12/2002) usually ships 1-5 days
12b 203-3346 10amp fuse $6.26 1 (14) (after 12/2002) usually ships 1-5 days
13 203-5002 Screw 5 x 10 inch $4.20 2 (after 12/2002) usually ships 11-14 days
14 203-5609 Carrying bag $58.63 1 usually ships 11-14 days
15 203-1701 Screw M4 $0.99 2 (after 12/2002) usually ships 1-5 days
16 189-0256 Fuse carrier $184.31 1 usually ships 1-5 days
17 189-1379 Nut M8 $30.60 18 (after 12/2002) usually ships 1-5 days
18 189-1403 Washer D8 $3.10 14 (after 12/2002) usually ships 11-14 days
19 203-1703 Fuse $41.88 1 (after 12/2002) usually ships 1-5 days
20 203-5610 Support $37.08 3 (after 12/2002) usually ships 11-14 days
21 203-1704 Plate $62.68 1 (after 12/2002) usually ships 1-5 days
22 203-5611 Box base $135.34 1 usually ships 11-14 days
23 189-1353 Washer D5 $2.99 6 (after 12/2002) usually ships 11-14 days
24 203-4956 Spring lock washer $2.99 4 (after 12/2002) usually ships 11-14 days
25 189-1629 Screw 5 x 12 inch screw $4.25 4 ships same day
26 203-5612 Brush control board $66.20 1 usually ships 11-14 days
27 203-5613 Carrying bag $11.02 3 usually ships 11-14 days
28 189-1446 Nut M3 $3.61 4 (after 12/2002) usually ships 1-5 days
29 189-2241 Washer D3 $5.19 4 usually ships 1-5 days
30 203-3369 Resistor $79.41 1 (after 12/2002) usually ships 1-5 days
31 203-4739 Screw $4.20 2 (after 12/2002) usually ships 1-5 days
32 189-0450 Resistance $75.30 1 (after 12/2002) usually ships 1-5 days
33 203-1709 Bracket $46.07 1 (after 12/2002) usually ships 1-5 days
34 189-1442 Screw M6 zinc $5.06 2 (after 12/2002) usually ships 1-5 days
35 203-4144 Connection (contactor) $452.87 1 (after 12/2002) usually ships 1-5 days
36 189-1345 Washer d10 cham $5.19 2 (after 12/2002) usually ships 1-5 days
37 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
38 203-1711 Connector $24.65 1 (after 11/2003) usually ships 1-5 days
39 203-5614 Screw M4 Call for price 2 (after 12/2002) usually ships 11-14 days
40 203-2870 Traction card $1,074.47 1 (after 12/2002) usually ships 1-5 days
41 203-5615 Decal $5.30 1 (after 12/2002) usually ships 11-14 days
42 203-1714 Box cover $56.98 1 usually ships 1-5 days
43 189-2250 Spacer $5.30 2 (after 12/2002) usually ships 1-5 days
44 203-4738 Screw M4 $4.20 2 (after 06/2004) usually ships 11-14 days
45 203-4737 Screw $4.20 1 (after 12/2002) usually ships 1-5 days
46 189-1457 Screw M2 $4.20 2 (after 12/2002) usually ships 1-5 days
47 203-1783 Support $79.41 1 (after 12/2002) usually ships 1-5 days
48 203-4734 4V microswitch $73.10 1 (after 12/2002) usually ships 11-14 days
49 189-1458 Nut M2 $3.61 2 (after 12/2002) usually ships 1-5 days
50 203-4632 Deck limit switch $117.62 1 (after 12/2002) usually ships 11-14 days
51 203-1754 Microswitch $75.38 1 (after 12/2002) usually ships 11-14 days
52 203-4166 50amp charger plug (red) $62.58 1 (after 12/2002) usually ships 11-14 days
53 203-1775 Belt $46.07 2 (after 12/2002) usually ships 1-5 days
54 203-1778 Belt $23.03 2 (after 12/2002) usually ships 1-5 days
55 203-1779 Battery plate $75.30 4 (after 12/2002) usually ships 11-14 days
56 189-0462 Lid $8.21 1 usually ships 1-5 days
