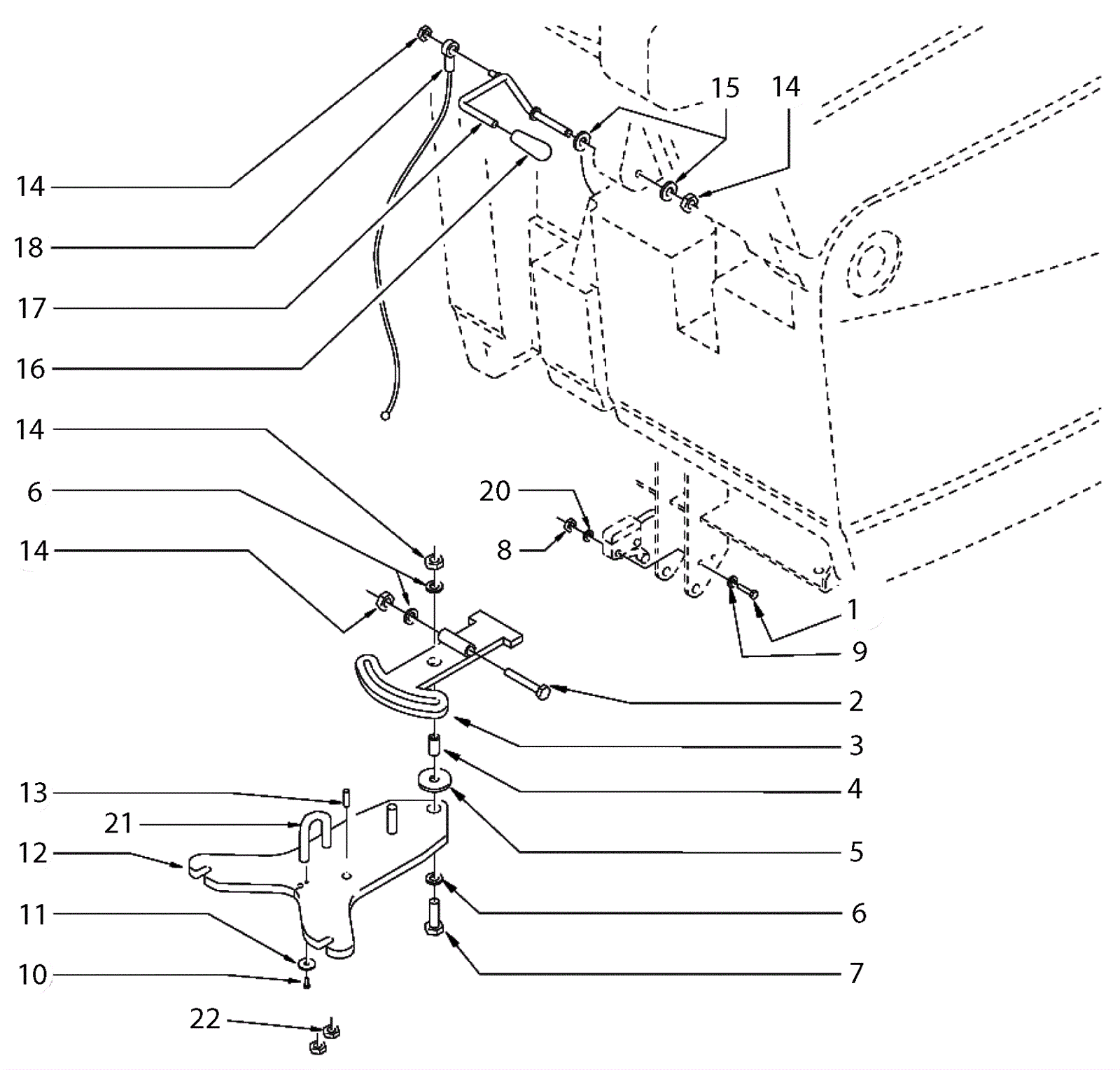

CT 100 Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-1448 Screw $2.42 2 (after 12/2002) usually ships 1-5 days
2 189-1491 Screw $3.94 1 (after 12/2002) usually ships 5-15 days
3a 203-1830 Arm $198.96 1 (12/2002-06/2012) usually ships 1-5 days
3b 203-5604 Support $93.03 1 (after 06/2012) usually ships 5-15 days
4 203-1831 Bushing / Bush $9.67 1 (after 12/2002) usually ships 1-5 days
5a 203-1341 Washer D12 $2.79 1 (after 06/2012) usually ships 1-5 days
5b 189-1394 Washer D13 $2.79 1 (12/2002-06/2012) usually ships 1-5 days
6 189-0897 Washer D8 $2.79 3 (after 12/2002) usually ships 5-15 days
7 189-1344 Screw M8 $3.94 1 (after 12/2002) usually ships 5-15 days
8 189-1472 Nut M4 $3.37 2 (after 12/2002) usually ships 1-5 days
9 189-1375 Washer D4 $2.90 2 (after 12/2002) usually ships 1-5 days
10 189-1376 Screw 4 x 10 inch $3.94 1 (12/2002-02/2013) usually ships 5-15 days
11 203-0903 Washer D5 $2.90 1 (12/2002-02/2013) usually ships 5-15 days
12a 203-1832 Bracket $343.77 1 (12/2002-02/2013) usually ships 1-5 days
12b 203-5605 Plate $229.20 1 (after 02/2013) usually ships 5-15 days
13 203-5606 Grub screw $13.43 1 (after 04/2004) usually ships 5-15 days
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 (after 12/2002) ships same day
15 189-1400 Washer $2.79 2 (after 12/2002) usually ships 5-15 days
16 189-1129 Handgrip $24.78 1 (after 12/2002) usually ships 1-5 days
17 203-0892 Lever $101.29 1 (after 12/2002) usually ships 1-5 days
18 203-1833 Squeegee lift cable kit $46.97 1 (after 12/2002) usually ships 5-15 days
19 203-5607 Cable Call for price 1 (after 02/2013) usually ships 5-15 days
20 203-4740 Washer D4 $2.79 2 (after 12/2002) usually ships 1-5 days
21 203-4845 Bracket $10.85 1 (after 02/2013) usually ships 1-5 days
22 189-1536 Nut with nylon ring $1.98 2 (after 02/2013) usually ships 5-9 days
