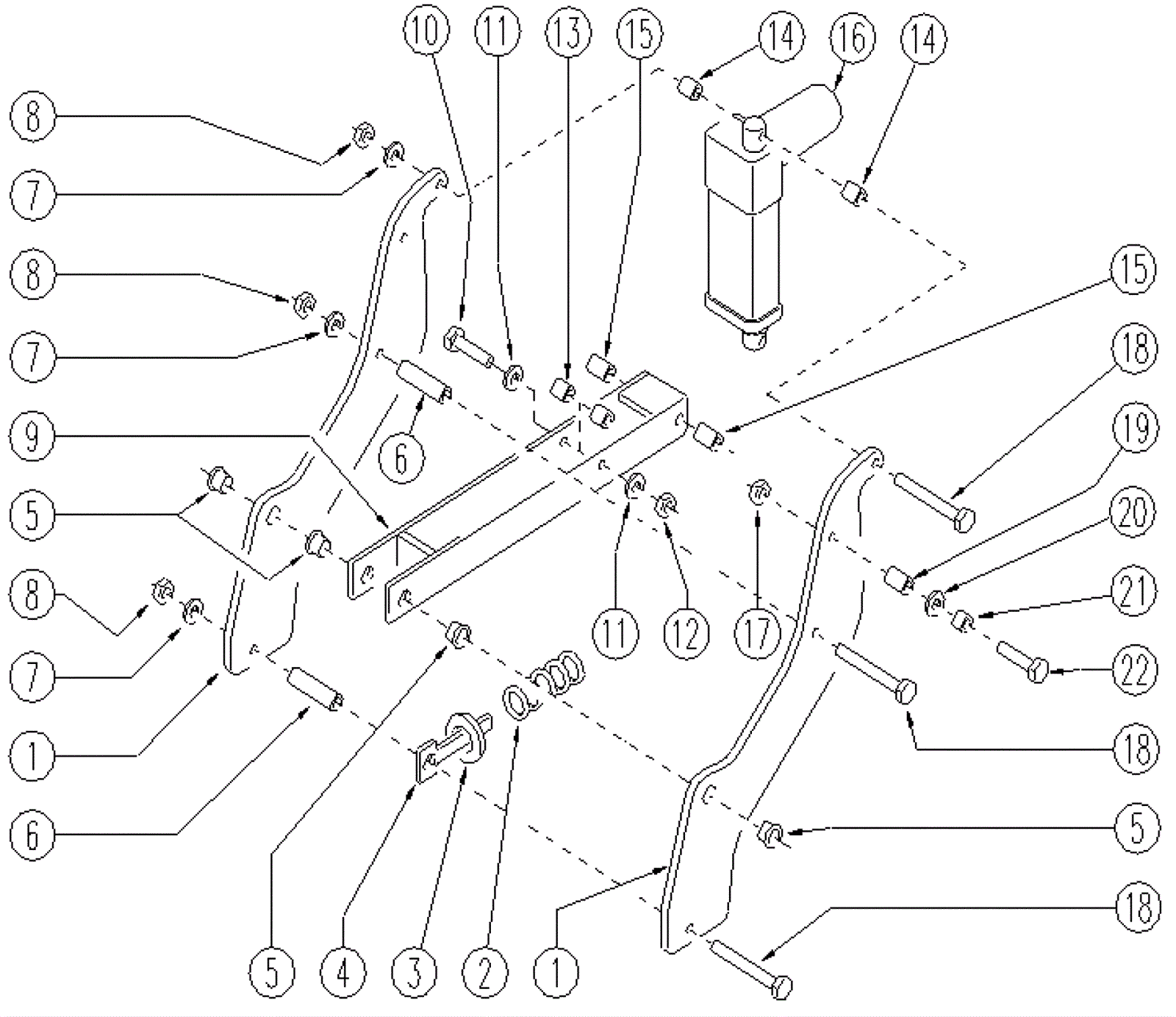

CT 100 Head Assmebly 3

#PartDescriptionPriceReqNotesAvailability
1 203-1741 Lever $155.95 2 (after 12/2002) usually ships 1-5 days
2 203-1742 Spring $80.48 1 (after 12/2002) usually ships 1-5 days
3 189-1366 Washer D14 $2.79 1 (after 12/2002) usually ships 1-5 days
4 203-1743 Spring guide $66.57 1 (after 12/2002) usually ships 1-5 days
5 203-1744 Bushing $9.02 4 (after 12/2002) usually ships 1-5 days
6 203-5052 Spacer D8 $23.47 2 (after 12/2002) usually ships 10-12 days
7 189-0897 Washer D8 $2.79 3 (after 12/2002) usually ships 10-12 days
8 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 (after 12/2002) ships same day
9 203-1746 Lever $304.00 1 (after 12/2002) usually ships 1-5 days
10 203-1747 Screw $4.86 1 (after 12/2002) usually ships 1-5 days
11 203-1286 Washer D6 $2.79 3 (after 12/2002) usually ships 10-12 days
12 203-0524 Nut M6 lock $5.50 1 usually ships 1-5 days
13 189-0523 Bushing $9.72 2 (after 12/2002) usually ships 1-5 days
14 203-1750 Spacer D8 $27.94 2 (after 12/2002) usually ships 1-5 days
15 189-0168 Bushing $3.17 2 (after 12/2002) usually ships 1-5 days
16 203-1751 Actuator $704.55 1 (after 12/2002) usually ships 10-12 days
17 189-1536 Nut with nylon ring $1.98 1 usually ships 5-9 days
18 203-1752 Screw M8 $5.50 3 (after 12/2002) usually ships 1-5 days
19 203-5603 Spacer $17.38 1 usually ships 10-12 days
20 189-1391 Washer D6 $0.99 1 usually ships 10-12 days
21 189-0918 Bearing $26.84 1 usually ships 1-5 days
22 189-1483 Screw 6 x 40 inch $0.99 1 usually ships 1-5 days
