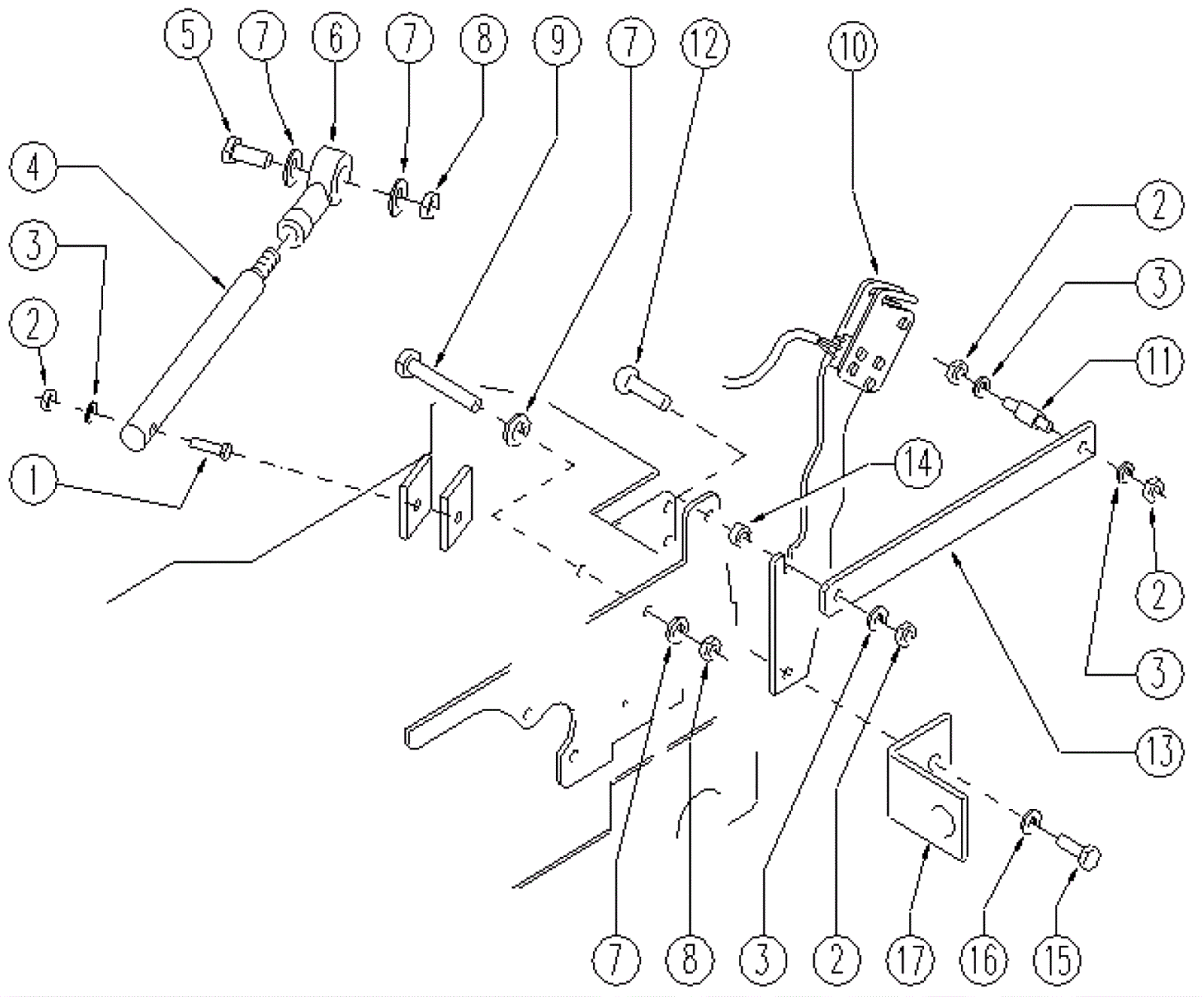

CT 100 Head Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 189-1373 Screw 8 x 45 inch $4.20 1 (after 12/2002) ships same day
2 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 (after 12/2002) ships same day
3 189-0897 Washer D8 $2.99 4 (after 04/2003) usually ships 10-12 days
4 203-1732 Lever $125.22 1 (after 12/2002) usually ships 1-5 days
5 203-1733 Screw 12 x 45 inch zinc $6.26 1 (after 12/2002) usually ships 10-12 days
6 203-1739 Articulation $196.37 1 (after 12/2002) usually ships 1-5 days
7 189-1414 Washer D12 $3.67 4 (after 12/2002) usually ships 10-12 days
8 189-1413 Nut M12 $4.25 2 (after 12/2002) usually ships 1-5 days
9 203-4836 Screw M12 $4.20 1 (after 12/2002) usually ships 10-12 days
10 203-1740 Support assembly $584.98 1 usually ships 1-5 days
11 203-5602 Pin $38.60 1 (after 02/2003) usually ships 10-12 days
12 189-1428 Screw M8 $0.99 1 (after 04/2003) usually ships 1-5 days
13 203-1736 Lever $58.53 1 (after 12/2002) usually ships 1-5 days
14 189-0095 Bushing $3.26 1 (after 12/2002) usually ships 1-5 days
15 189-1512 Screw 8 x 20 inch $4.20 1 (after 12/2002) usually ships 10-12 days
16 189-1403 Washer D8 $3.10 1 (after 12/2002) usually ships 10-12 days
17 203-1737 Support $54.48 1 (after 12/2002) usually ships 1-5 days
