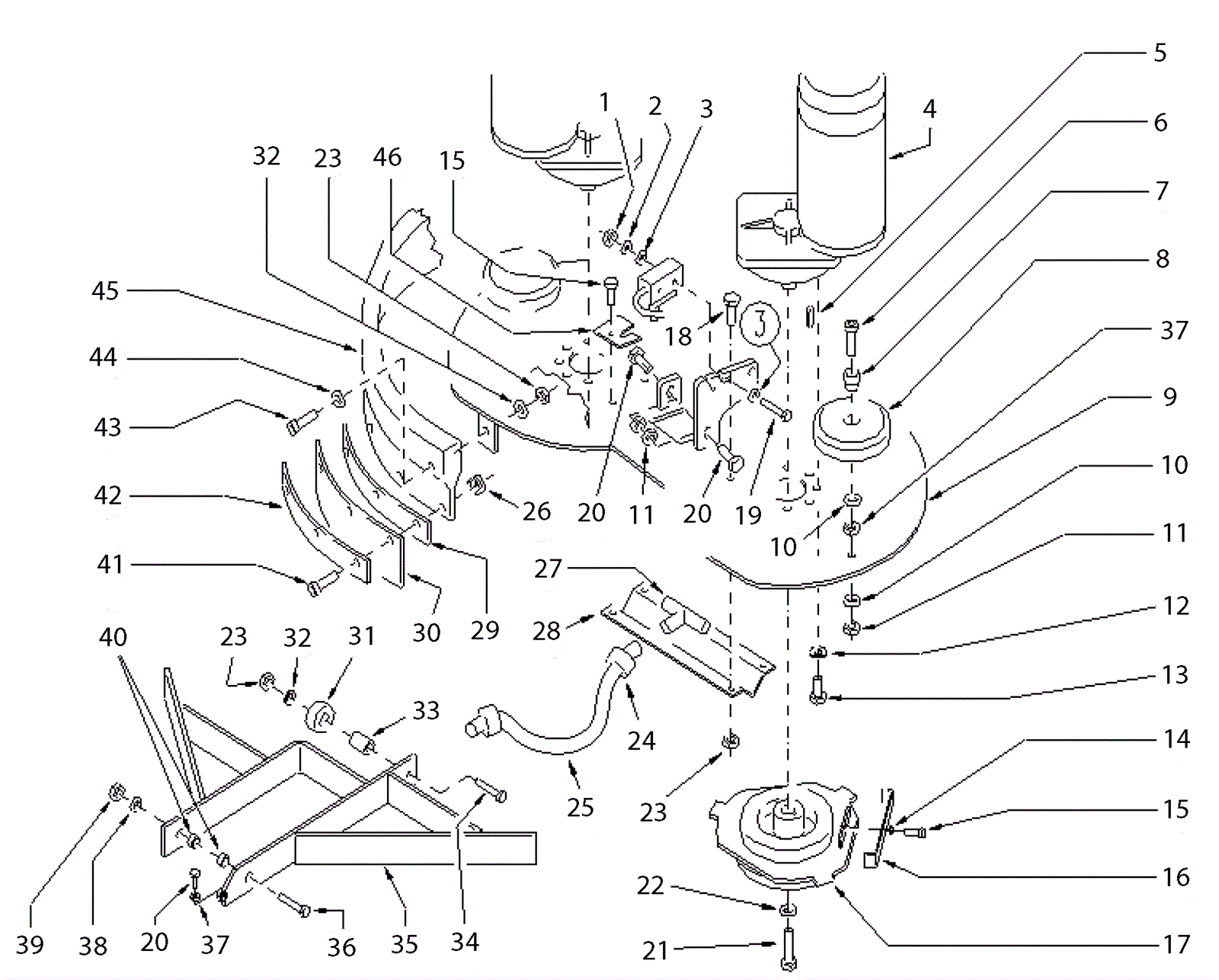

CT 100 Head Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 189-1472 Nut M4 $3.61 2 (after 12/2002) usually ships 1-5 days
2 203-4740 Washer D4 $2.99 2 usually ships 1-5 days
3 203-0145 Washer 4-16 inch $2.99 4 (after 12/2002) usually ships 11-14 days
4a 203-4797 Carbon brush (sold individually) $30.02 8 usually ships 1-5 days
4b 203-5599 24V motor $1,340.22 2 usually ships 11-14 days
5 203-0644 Square keyway $4.25 2 (after 12/2002) usually ships 11-14 days
6a 189-1399 Screw M8 zinc $5.19 2 (after 09/2006) usually ships 1-5 days
6b 203-0182 Screw M8 $5.19 2 (12/2002-09/2006) usually ships 1-5 days
7 189-0901 Bushing $32.81 2 (after 12/2002) usually ships 1-5 days
8 189-0060 Wheel $8.40 2 (after 12/2002) usually ships 11-14 days
9 203-1757 Head $475.81 1 (after 12/2002) usually ships 1-5 days
10 189-0897 Washer D8 $2.99 2 (after 12/2002) usually ships 11-14 days
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 (after 02/2003) ships same day
12 203-0971 Washer D6 $2.99 14 (after 12/2002) usually ships 11-14 days
13 189-1357 Screw 6 x 12 inch $4.20 14 (after 12/2002) usually ships 11-14 days
14 203-4740 Washer D4 $2.99 2 (after 06/2003) usually ships 1-5 days
15 189-1376 Screw 4 x 10 inch $4.20 3 (after 12/2002) usually ships 11-14 days
16 203-1759 Spring $73.66 2 (after 12/2002) usually ships 11-14 days
17 375-8019 Driver kit (aluminum) $72.49 2 (after 02/2012) usually ships 10-13 days
18 189-1627 Screw 6-16 inch $4.20 4 (after 12/2002) usually ships 1-5 days
19 203-5600 Screw M4 $2.60 2 (after 12/2002) usually ships 11-14 days
20 189-1479 Screw 8 x 25 inch $4.20 3 (after 06/2003) usually ships 1-5 days
21 203-4437 Screw 8 x 30 inch $5.19 3 (after 05/2003) usually ships 1-5 days
22 189-1449 Washer D10 $5.19 2 (after 12/2002) usually ships 1-5 days
23 203-0524 Nut M6 lock $5.50 10 (after 12/2002) usually ships 1-5 days
24 189-0716 Clamp 14-24 inch $5.13 2 usually ships 11-14 days
25 203-1810 Hose $18.49 1 usually ships 11-14 days
26 203-4306 Nut M6 $3.61 6 (after 12/2002) usually ships 11-14 days
27 203-1768 Union / connector $16.81 1 (after 12/2002) usually ships 11-14 days
28 203-1763 Distributor $75.04 1 (after 12/2002) usually ships 1-5 days
29 203-4307 Skirt spacer $39.53 2 (after 12/2002) usually ships 11-14 days
30 203-1767 Flap $30.22 2 (after 12/2002) usually ships 11-14 days
31 189-2237 Wheel $44.79 1 (after 12/2002) usually ships 11-14 days
32 203-1286 Washer D6 $2.99 6 (after 12/2002) usually ships 11-14 days
33 189-2238 Spacer D6 $33.40 1 (after 12/2002) usually ships 11-14 days
34 189-1488 Screw M6 $4.20 1 (after 12/2002) usually ships 11-14 days
35 203-1766 Bracket $674.62 1 (after 12/2002) usually ships 1-5 days
36 203-1764 Screw M12 $10.15 1 (after 12/2002) usually ships 1-5 days
37 189-1492 Nut M8 $0.99 1 (after 06/2003) usually ships 11-14 days
38 189-1414 Washer D12 $3.67 1 (after 12/2002) usually ships 11-14 days
39 189-1413 Nut M12 $4.25 1 (after 12/2002) usually ships 1-5 days
40 203-1765 Spacer $21.13 2 (after 12/2002) usually ships 1-5 days
41 189-1638 Screw 6 x 20 inch $6.26 6 (after 12/2002) usually ships 1-5 days
42 189-2377 Flap Press $22.68 2 (after 12/2002) usually ships 1-5 days
43 189-1649 Screw 6 x 35 inch $6.26 5 (after 12/2002) usually ships 1-5 days
44 189-1391 Washer D6 $0.99 5 (after 12/2002) usually ships 11-14 days
45 203-1771 Skirt/gasket $150.77 1 usually ships 11-14 days
46 203-1773 Plaque $66.73 1 (after 12/2002) usually ships 1-5 days
