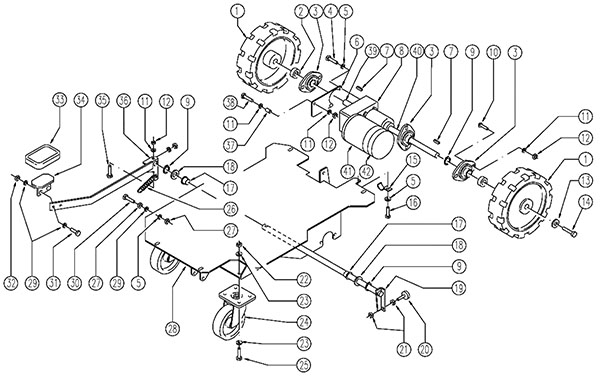

CT 100 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5026 Wheel $195.70 2 (after 01/2013) usually ships 5-15 days
2 189-0227 Spacer $15.55 2 (after 12/2002) usually ships 1-5 days
3 189-0226 Bearing $13.04 3 (after 12/2002) usually ships 1-5 days
4 189-1497 Screw 6 x 16 inch $3.94 2 (after 12/2002) usually ships 5-15 days
5 203-0971 Washer D6 $2.79 4 (after 12/2002) usually ships 5-15 days
6 203-1790 Plate $70.37 1 (after 12/2002) usually ships 5-15 days
7 189-0907 Square keyway $5.85 2 (after 12/2002) usually ships 5-15 days
8 189-2222 Transaxle $1,795.89 1 (after 12/2002) usually ships 1-5 days
9 189-0645 Ring $4.84 3 (after 12/2002) usually ships 1-5 days
10 189-1544 Screw $3.94 6 (after 12/2002) usually ships 1-5 days
11 189-0897 Washer D8 $2.79 9 (after 12/2002) usually ships 5-15 days
12 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 7 ships same day
13 189-1410 Washer D8 zinc $10.64 2 usually ships 1-5 days
14 189-2232 Screw M8 $0.99 2 (after 12/2002) usually ships 1-5 days
15 203-1795 Clip $4.84 1 (after 12/2002) usually ships 1-5 days
16 189-1357 Screw 6 x 12 inch $3.94 1 (after 12/2002) usually ships 5-15 days
17 189-0273 Bearing $19.01 2 (after 12/2002) usually ships 5-15 days
18 203-1796 Washer D20 $2.82 2 (after 12/2002) usually ships 1-5 days
19 203-5592 Axle $198.81 1 (after 06/2003) usually ships 5-15 days
20 203-1798 Plug / stopper $9.67 2 (after 12/2002) usually ships 1-5 days
21 189-1492 Nut M8 $0.99 4 (after 12/2002) usually ships 5-15 days
22 189-1415 Nut $3.43 8 (after 12/2002) usually ships 1-5 days
23 203-4537 Washer M10 $16.28 16 (after 12/2002) usually ships 1-5 days
24 203-1799 Small wheel $187.89 2 (after 12/2002) usually ships 5-15 days
25 203-1800 Screw 10 x 25 inch $3.94 8 (after 12/2002) usually ships 1-5 days
26 189-0575 Spring $11.67 1 (after 12/2002) usually ships 1-5 days
27 189-1489 Nut M6 $3.37 2 (after 12/2002) usually ships 1-5 days
28 203-1802 Frame $3,426.65 1 (after 12/2002) usually ships 1-5 days
29 203-1286 Washer D6 $2.79 5 (after 12/2002) usually ships 5-15 days
30 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 1 (after 12/2002) ships same day
31 189-1445 Turned eye screw $0.99 2 (after 12/2002) usually ships 5-15 days
32 189-1536 Nut with nylon ring $1.98 2 usually ships 5-9 days
33 189-0233 Rubber shim $34.78 1 usually ships 1-5 days
34 189-0913 Pedal $43.12 1 (after 12/2002) usually ships 1-5 days
35 189-1404 Screw M8 $0.99 1 (after 06/2003) usually ships 1-5 days
36 203-5594 Lever $152.20 1 (after 06/2003) usually ships 5-15 days
37 203-1808 Spacer 8 x 30 inch $5.95 1 (after 12/2002) usually ships 1-5 days
38 203-1344 Screw $3.94 1 (after 12/2002) usually ships 1-5 days
39 203-5595 Left hand axle $192.45 1 usually ships 5-15 days
40 203-5596 Right hand axle $262.43 1 usually ships 5-15 days
41 203-5597 24V motor $1,841.65 1 usually ships 5-15 days
42 203-5598 Carbon Call for price 4 usually ships 5-15 days
