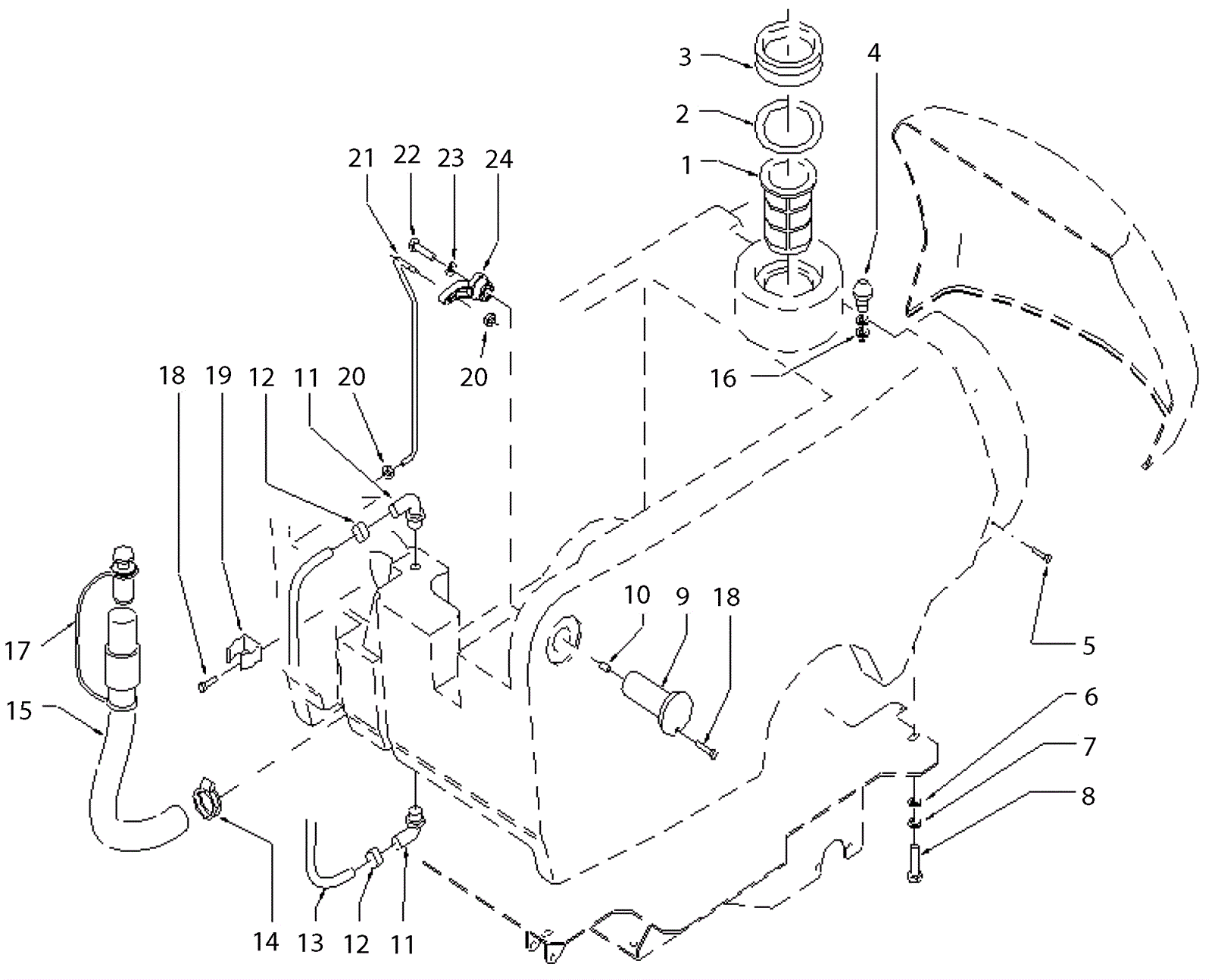

CT 100 Water Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-2266 Filter $64.13 1 (after 12/2002) usually ships 11-14 days
2 203-1715 Gasket $13.78 1 (after 12/2002) usually ships 11-14 days
3 203-1716 Gasket $20.01 1 (after 12/2002) usually ships 1-5 days
4 189-2269 Pin $58.53 1 (after 12/2002) usually ships 1-5 days
5 189-2271 5-10 inch screw $5.19 4 (after 12/2002) usually ships 1-5 days
6 189-1532 Washer D10 $2.99 4 (after 12/2002) usually ships 1-5 days
7 189-2272 Washer D10 $2.99 4 (after 12/2002) usually ships 1-5 days
8 189-2273 Screw 10 x 20 inch $4.20 4 (after 12/2002) usually ships 1-5 days
9 189-1109 Pin $91.81 2 (after 12/2002) usually ships 1-5 days
10 189-1108 Insert $3.32 1 (after 12/2002) usually ships 1-5 days
11 189-0142 Union/connector $12.60 2 (after 12/2002) usually ships 11-14 days
12 189-0141 Clamp 10-16 inch $5.76 2 (after 12/2002) usually ships 1-5 days
13 203-1724 Hose $37.49 1 (after 12/2002) usually ships 11-14 days
14 189-0123 Clamp 35-40 inch $1.14 1 (after 12/2002) usually ships 11-14 days
15a 203-0501 Hose $32.73 1 (12/2002-03/2013) usually ships 11-14 days
15b 203-5591 Tube $71.15 1 (after 03/2013) usually ships 11-14 days
16 203-1325 Washer 10 x 21 inch washer $0.99 2 usually ships 1-5 days
17 203-4348 Cap assembly $12.00 1 (before 03/2003) usually ships 11-14 days
18 189-1629 Screw 5 x 12 inch screw $4.25 4 (after 12/2002) ships same day
19 203-4318 Clasp $42.74 1 (after 12/2002) usually ships 11-14 days
20 203-0524 Nut M6 lock $5.50 2 (after 12/2002) usually ships 1-5 days
21 203-1725 Rod $61.14 1 (after 12/2002) usually ships 1-5 days
22 189-1357 Screw 6 x 12 inch $4.20 1 (after 12/2002) usually ships 11-14 days
23 189-1356 Washer 6-18 inch $1.03 1 (after 12/2002) usually ships 1-5 days
24 189-1115 Lever $21.13 1 (after 12/2002) usually ships 1-5 days
