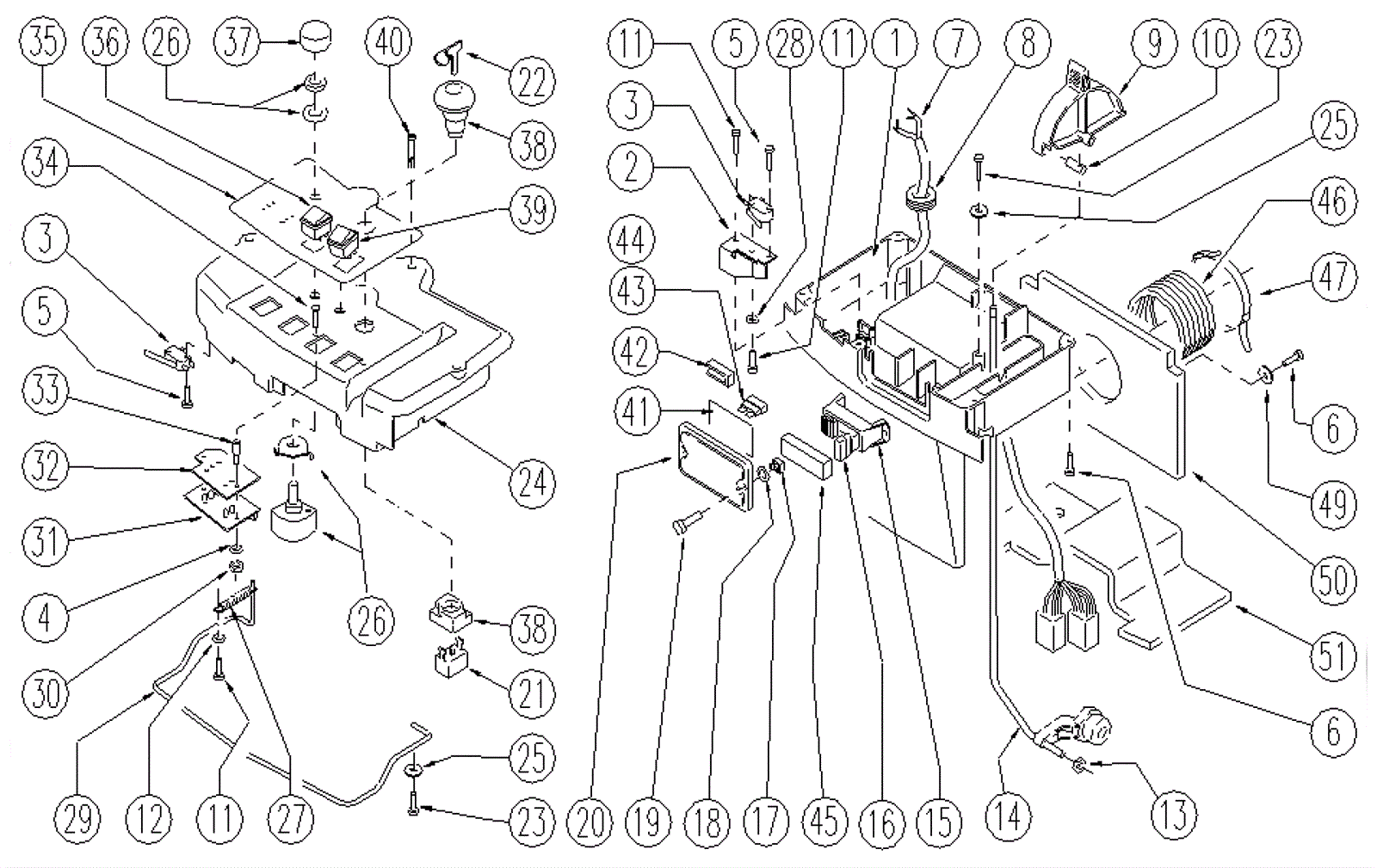

CT 100 Electrical Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 203-5583 Lower control panel $249.25 1 usually ships 5-15 days
2 189-2240 Spring $93.53 1 (after 03/2004) usually ships 1-5 days
3 203-1058 Microswitch $23.03 3 (after 03/2004) usually ships 1-5 days
4 189-2241 Washer D3 $4.84 2 (after 03/2004) usually ships 1-5 days
5 189-1640 Screw $4.86 6 (after 03/2004) usually ships 1-5 days
6 189-1624 Screw 3 1/2 x 16 inch $3.96 6 (after 03/2004) usually ships 1-5 days
7 189-2242 Wiring $204.79 1 usually ships 5-15 days
8 189-1133 Fairlead $4.84 1 (after 03/2004) usually ships 1-5 days
9 189-0288 Lever $39.14 1 (after 03/2004) usually ships 1-5 days
10 189-0289 Solution rod $31.21 1 (after 03/2004) usually ships 1-5 days
11 189-2243 5-10 inch M. 3 screw $3.96 5 (after 03/2004) usually ships 1-5 days
12 203-1377 D. 5 Washer $2.90 1 (after 03/2004) usually ships 1-5 days
13 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
14 189-2244 Rod $265.03 1 usually ships 1-5 days
15 189-0659 Fuse holders $55.66 1 (after 03/2004) usually ships 1-5 days
16 189-0107 5 amp fuse $23.76 4 (after 03/2004) usually ships 1-5 days
17 189-1637 Nut M6 $5.82 2 (after 03/2004) usually ships 1-5 days
18 189-0755 Gasket $5.78 4 (after 03/2004) usually ships 1-5 days
19 189-1638 Screw 6 x 20 inch $5.85 2 (after 03/2004) usually ships 1-5 days
20 203-5584 Cover Call for price 1 (after 03/2004) usually ships 5-15 days
21 203-4349 Switch $24.30 1 usually ships 1-5 days
22 203-3401 Key (pkg of 2) $32.16 1 ships same day
23 203-5585 Screw 3 1/2 x 12 inch $4.86 2 usually ships 5-15 days
24 203-4364 Control panel $284.74 1 usually ships 5-15 days
25 189-1462 Washer 5 x 14 inch $2.79 2 ships same day
26 203-5586 Potentiometer $70.46 1 (after 03/2004) usually ships 5-15 days
27 189-2246 Spring $9.49 1 (after 03/2004) usually ships 1-5 days
28 189-1375 Washer D4 $2.90 1 (after 03/2004) usually ships 1-5 days
29 189-2247 Lever $457.02 1 (after 03/2004) usually ships 1-5 days
30 189-1446 Nut M3 $3.37 2 (after 03/2004) usually ships 1-5 days
31 203-3343 LED board $172.23 1 usually ships 1-5 days
32 203-3344 Plate $15.55 1 (after 03/2004) usually ships 1-5 days
33 189-2250 Spacer $4.95 2 (after 03/2004) usually ships 1-5 days
34 189-2251 Screw 3 x 6 inch $4.86 2 (after 03/2004) usually ships 1-5 days
35 203-4312 Control panel decal $39.14 1 (after 03/2004) usually ships 1-5 days
36 189-2223 Switch $23.03 1 (after 03/2004) usually ships 5-15 days
37 189-0260 Knob $66.57 1 (after 03/2004) usually ships 1-5 days
38 189-0264 Key switch complete $137.79 1 usually ships 5-15 days
39 203-3345 Push button $17.17 1 (after 03/2004) usually ships 1-5 days
40 203-0805 Toothed clip $4.95 1 (after 03/2004) usually ships 1-5 days
41 203-5587 Decal $4.77 1 (after 03/2004) usually ships 5-15 days
42 189-0927 Fuse tweezers $89.76 1 (after 03/2004) usually ships 1-5 days
43 203-3346 10amp fuse $5.85 1 (after 03/2004) usually ships 1-5 days
44 189-0255 Fuse 40 amp $5.85 1 (after 03/2004) usually ships 1-5 days
45 189-0462 Lid $7.67 1 (after 03/2004) usually ships 1-5 days
46 189-0085 Hose $30.91 1 usually ships 1-5 days
47 203-5588 Clamp $1.45 1 usually ships 5-15 days
49 203-0903 Washer D5 $2.90 2 (after 03/2004) usually ships 5-15 days
50 203-5589 Sound proofing posterior $15.32 1 (after 03/2004) usually ships 5-15 days
51 203-5590 Sound proofing $43.07 1 (after 03/2004) usually ships 5-15 days
