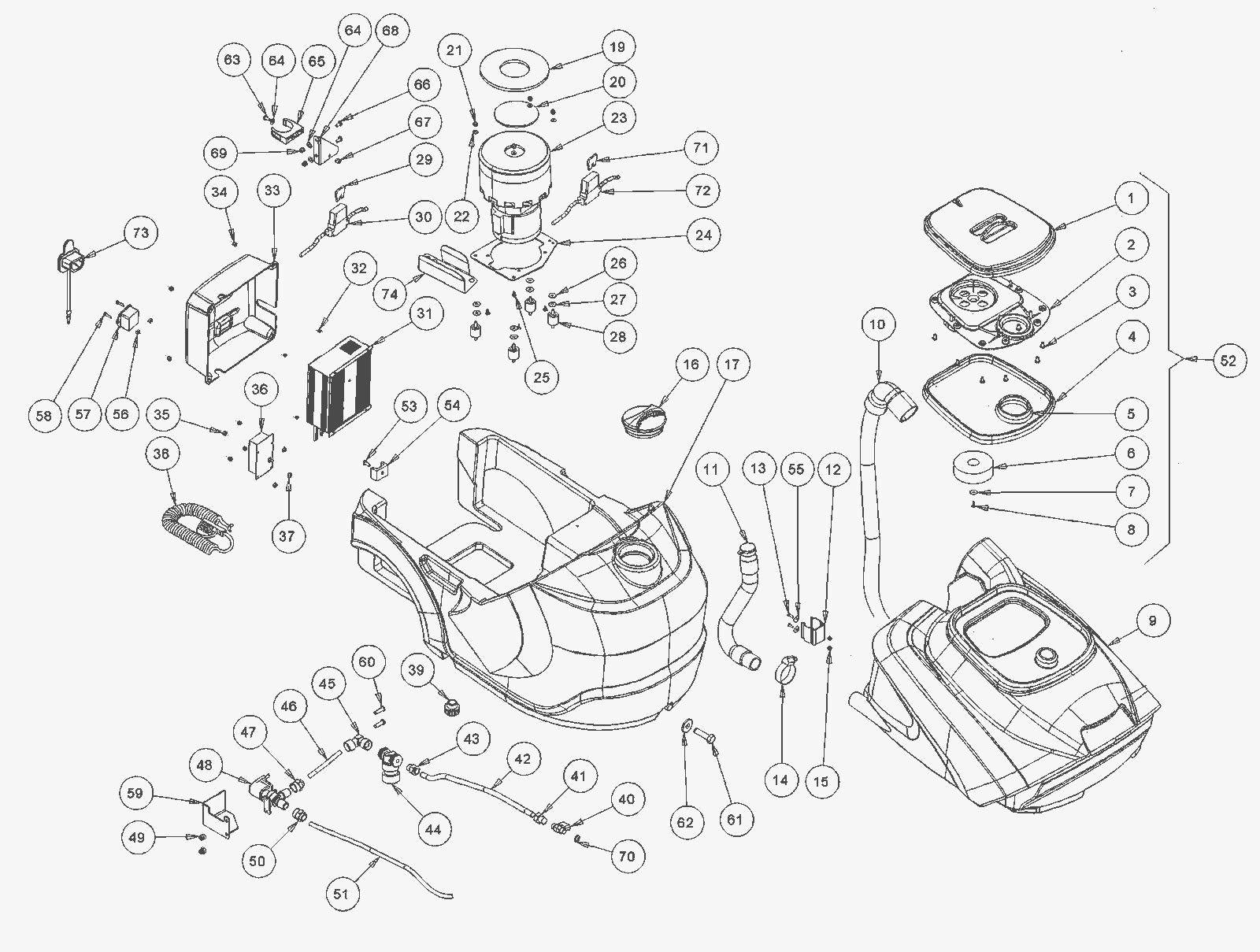

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-4942
|
Outside recovery tank cover |
1 |
|
|
2 |
203-4943
|
Inside recovery tank cover |
1 |
|
|
3 |
203-4944
|
Screw M6 x 10 |
8 |
|
|
4 |
203-4945
|
Gasket |
1 |
|
|
5 |
203-4946
|
Gasket |
1 |
|
|
6 |
203-4947
|
Shutoff float |
1 |
|
|
7 |
203-5171
|
Washer |
1 |
|
|
8 |
375-9544
|
Screw 5 x 12 |
1 |
|
|
9 |
203-5504
|
Recovery tank |
1 |
|
|
10 |
203-4579
|
Suction squeegee hose |
1 |
|
|
11 |
203-5043
|
Recovery tank drain hose |
1 |
|
|
12 |
203-4318
|
Clasp |
1 |
|
|
13 |
203-3260
|
Screw 4 x 16 |
2 |
|
|
14a |
203-4948
|
Clamp |
1 |
(Before December 9, 2014) |
|
14b |
203-5505
|
Clamp |
1 |
(After December 8, 2014) |
|
15 |
189-1384
|
Nut M4 |
2 |
|
|
16 |
203-4950
|
Cap |
1 |
|
|
17 |
203-5506
|
Solution tank |
1 |
|
|
19a |
203-4953
|
Gasket |
1 |
(Before September 23, 2016) |
|
19b |
203-4953
|
Gasket |
1 |
(After September 22, 2016) |
|
20 |
203-4954
|
Net |
1 |
|
|
21 |
189-1468
|
Nut M5 |
4 |
|
|
22 |
203-4956
|
Spring lock washer |
4 |
|
|
23a |
203-4666
|
Carbon brush (sold individually) |
2 |
|
|
23b |
203-5035
|
Vacuum motor |
1 |
|
|
24 |
203-4957
|
Plate |
1 |
|
|
25 |
375-9544
|
Screw 5 x 12 |
4 |
|
|
26 |
189-1462
|
Washer 5 x 14 inch |
4 |
|
|
27 |
189-1462
|
Washer 5 x 14 inch |
4 |
|
|
28 |
203-4959
|
Vibration dampener |
4 |
|
|
29 |
203-5507
|
Fuse |
1 |
|
|
30 |
203-5508
|
Fuse holder wiring |
1 |
|
|
31a |
203-5038
|
Onboard battery charger |
1 |
(Before February 19, 2013) |
|
31b |
203-5038
|
Onboard battery charger |
1 |
(After February 18, 2013) |
|
32 |
203-5071
|
Nut |
4 |
|
|
33a |
203-5509
|
Cover |
1 |
(Before July 22, 2014) |
|
33b |
203-5510
|
Cover |
1 |
(After July 21, 2014) |
|
34 |
203-3202
|
Nut M4 |
4 |
|
|
35 |
203-3202
|
Nut M4 |
4 |
|
|
36a |
203-3394
|
Circuit board kit |
1 |
|
|
36b |
203-5513
|
Power board |
1 |
|
|
37 |
203-5178
|
Washer |
4 |
|
|
38 |
203-3187
|
Charging cord |
1 |
|
|
39a |
203-4757
|
Cap |
1 |
(Before October 31, 2016) |
|
39b |
203-5514
|
1/2 inch cap |
1 |
(After November 1, 2016) |
|
40 |
203-4966
|
Valve |
1 |
|
|
41 |
203-4967
|
Connector |
1 |
|
|
42 |
203-4965
|
Tube (sold by the meter) |
1 |
|
|
43a |
203-5515
|
Connector |
1 |
(Before September 11, 2013) |
|
43b |
203-5557
|
Connector |
1 |
(After September 10, 2013) |
|
44a |
203-4578
|
Solution filter with screen |
1 |
(Before February 29, 2012) |
|
44b |
203-4578
|
Solution filter with screen |
1 |
(After February 28, 2012) |
|
45 |
203-4970
|
Connector |
1 |
|
|
46 |
203-4965
|
Tube (sold by the meter) |
1 |
|
|
47 |
203-4972
|
Connector |
1 |
|
|
48 |
203-5041
|
Solution solenoid valve |
1 |
|
|
49a |
375-9544
|
Screw 5 x 12 |
2 |
(Before May 23, 2013) |
|
50 |
203-4972
|
Connector |
1 |
|
|
52 |
203-4973
|
Recovery tank cover |
1 |
includes 1-8 |
|
53 |
203-5517
|
Screw M4 x 12mm |
1 |
|
|
54 |
203-5518
|
Clamp |
1 |
|
|
55 |
203-3261
|
Washer D.4 x 18 |
2 |
|
|
56 |
203-5071
|
Nut |
2 |
|
|
57 |
203-5519
|
Plug |
1 |
|
|
58 |
203-5520
|
Screw M3 x 8mm |
2 |
|
|
59 |
203-4975
|
Solenoid valve guard |
1 |
(After May 22, 2013) |
|
60 |
203-4976
|
Screw |
2 |
(After May 22, 2013) |
|
61 |
203-4977
|
Screw |
1 |
|
|
62 |
189-1462
|
Washer 5 x 14 inch |
1 |
|
|
63 |
203-4976
|
Screw |
1 |
(After September 9, 2014) |
|
64 |
203-0235
|
Washer |
3 |
(After September 9, 2014) |
|
65 |
203-3395
|
Hose clip |
1 |
(After September 9, 2014) |
|
66 |
203-5180
|
Screw |
2 |
(After September 9, 2014) |
|
67 |
189-1472
|
Nut M4 |
1 |
(After September 9, 2014) |
|
68 |
203-5521
|
Bracket |
1 |
(After September 9, 2014) |
|
69 |
189-1472
|
Nut M4 |
2 |
(After September 9, 2014) |
|
70 |
175-3779
|
Gasket |
1 |
(After April 21, 2014) |
|
71 |
203-3211
|
20amp main card fuse |
1 |
|
|
72 |
203-5461
|
Wiring |
1 |
|
|
73 |
203-5461
|
Wiring |
1 |
(After January 15, 2017) |
|
74 |
203-5522
|
Bracket |
1 |
(After January 15, 2017) |
|
