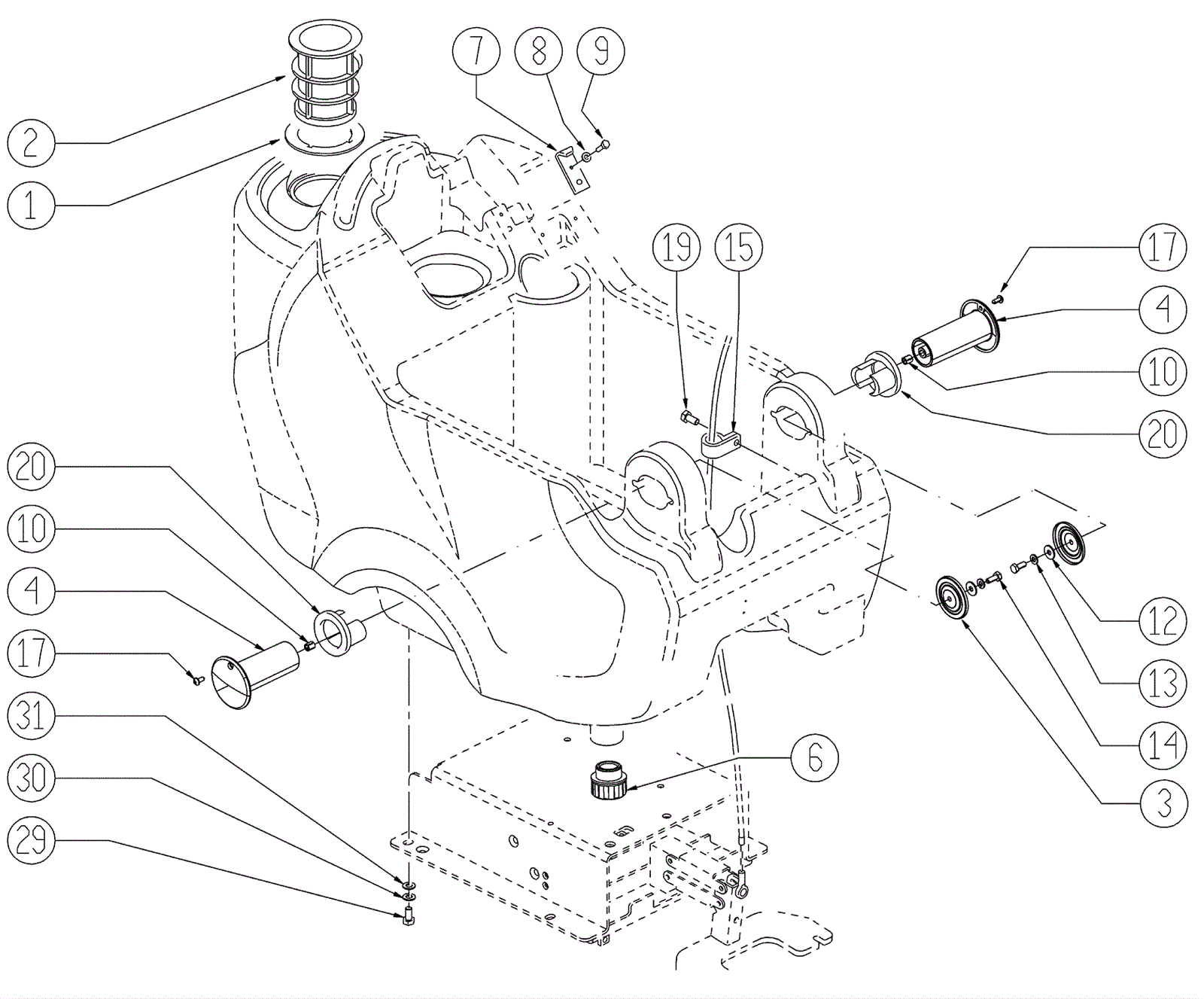

Tank Assembly

#PartDescription ReqNotesAvailability
1 203-4753 Gasket 1
2 203-4754 Filter 1
3 203-4755 Sheet metal 2
4 189-1109 Pin 2
6 203-4757 Cap 1
7 203-4758 Plate 1
8 203-0971 Washer D6 1
9 203-4759 Screw 1
10 189-1108 Insert 2
12 189-1391 Washer D6 2
13 203-0971 Washer D6 2
14 189-1497 Screw 6 x 16 inch 2
15 203-4761 P clamp 2
17 375-9544 Screw 5 x 12 2
19 203-4713 Screw 1
20 203-4763 Rubber insert 2
29 189-1499 Screw 4
30 189-1511 Washer 4
31 189-0897 Washer D8 4
