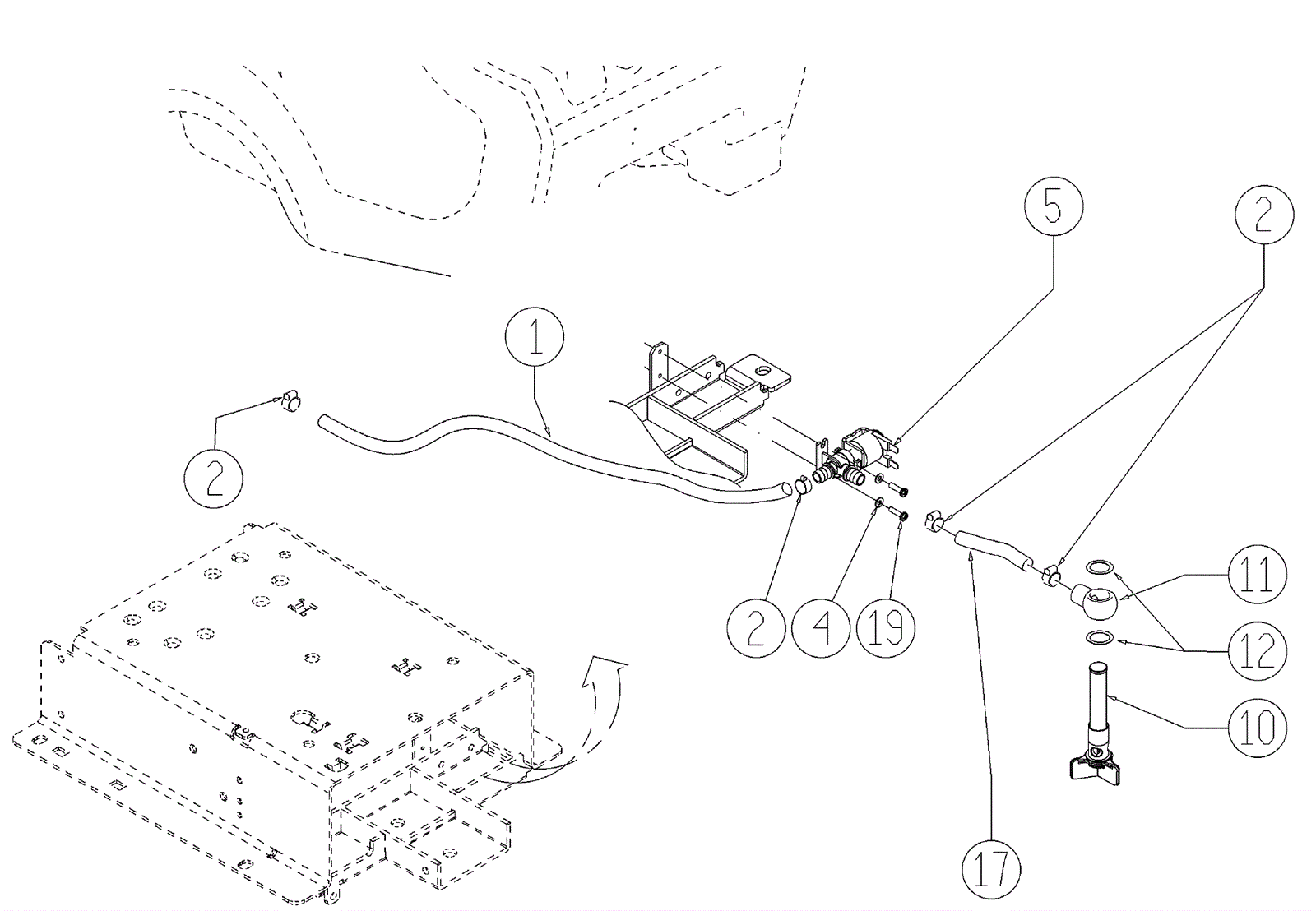

Solenoid Valve Assembly

#PartDescription ReqNotesAvailability
1 203-4747 Tube (Sold by the meter) 1
2 189-0716 Clamp 14-24 inch 4
4 203-0235 Washer 2
5 203-4749 Solenoid valve 1
10 203-0852 Filter 1
11 203-4751 Connector 1
12 675-9928 Washer gasket 2
17 203-4747 Tube (Sold by the meter) 1
19 203-4752 Screw 2
