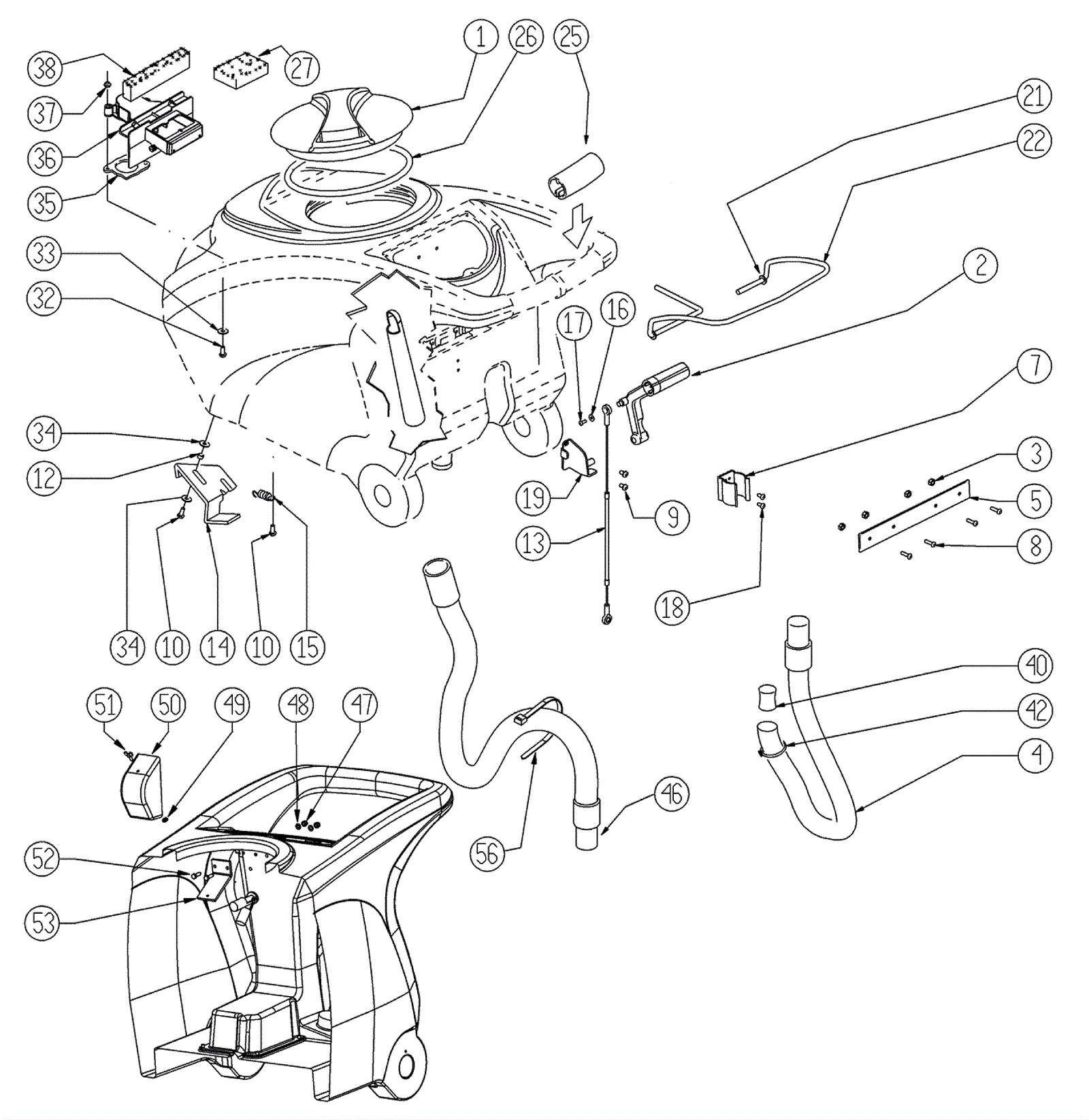

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 203-4584 Cap 1
2 203-3061 Lever 1
3 203-0524 Nut M6 lock 4
4 203-4683 Drain hose 1
5 203-4684 Plate 1
7 203-4318 Clasp 1
8 189-1465 Screw 4
9 189-1357 Screw 6 x 12 inch 2
10 189-1497 Screw 6 x 16 inch 3
12 203-4686 Spacer 2
13 203-5967 Squeegee lift cable 1
14 203-4687 Handle 1
15 203-4688 Spring 1
16 203-0145 Washer 4-16 inch 1
17 203-1733 Screw 12 x 45 inch zinc 1
18 189-1431 Screw 2
19 203-4690 Squeegee bracket 1
21 189-0897 Washer D8 2
22 203-4691 Lever 1
25 203-4692 Knob 2
26 189-0293 Gasket 1
27 203-4693 Filter 1
32 203-4694 Screw 2
33 203-0235 Washer 2
34 375-9658 Washer nylon 4
35 203-4696 Gasket 1
36 203-4697 Box 1
37 189-1472 Nut M4 2
38 203-4699 Gasket 1
40 203-4700 Gasket 1
42 189-0123 Clamp 35-40 inch 1
46 203-4339 Vacuum hose assembly 1
47 203-0789 Nut 2
48 189-1353 Washer D5 2
49 203-4703 Washer 1
50 203-4704 Cover 1
51 203-4705 Screw 1
53 203-4707 Bracket 1
56 203-4708 Clamp 1
