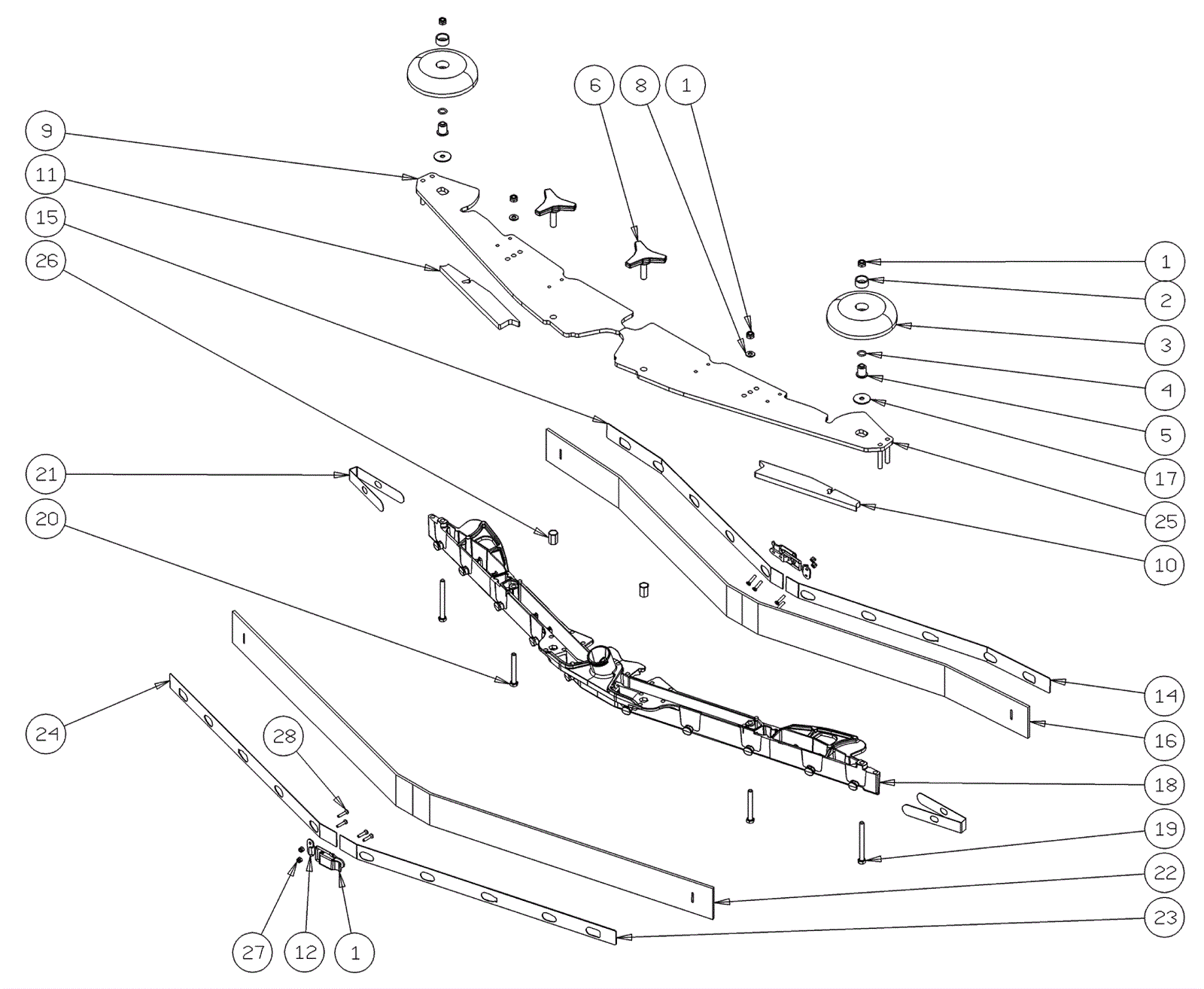

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 203-4765 Retainer closure 2 (after 09/2013)
2 189-5086 Bushing 2
3 189-0060 Wheel 2
4 189-0181 Gasket 2
5 203-0920 Spacer 2
6 203-4768 Knob 2
8 203-1286 Washer D6 2
9 203-4769 Plate 1
10 203-4770 Gasket 1
11 203-4771 Gasket 1 (after 09/2013)
12 203-4772 Hook 2 (before 09/2013)
14 203-4774 Front left hand squeegee band 1
15 203-4776 Front right hand squeegee band 1
16 203-3360 Squeegee blade front 1
17 189-1391 Washer D6 4
18 203-4777 Squeegee weldment 1
19 203-4778 Screw 6 x 65 2
20 203-4779 Screw M6 x 50mm 2
21 203-4780 Closure 2
22 203-3361 Squeegee blade rear 1
23 203-4782 Rear right hand squeegee band 1
24 203-4784 Rear left hand squeegee band 1
25 203-4785 Plate 1
26 203-4786 Insert 2
27 203-4787 Nut M3 8 (after 09/2013)
28 203-4788 Screw 3 x 8 inch 8 (after 09/2013) (after 09/2013)
