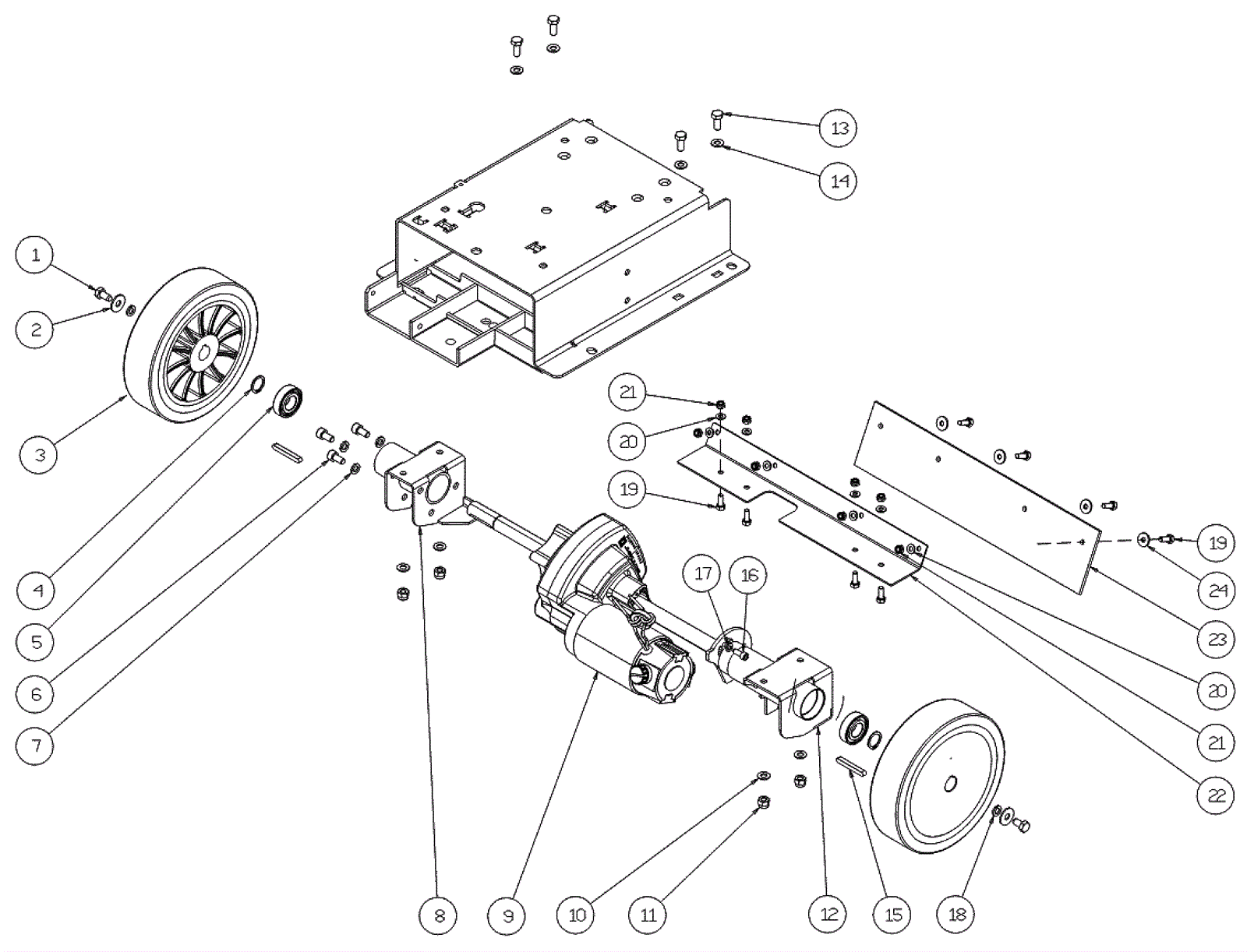

Wheel Assembly

#PartDescription ReqNotesAvailability
1 189-1499 Screw 2
2 375-9615 Washer D. 8 x 24 inox 2
3 203-5145 Wheel 2
4 189-7523 Outer snap ring 2
5a 203-5148 Bearing 2 (from 09/2011 to 04/2013)
5b 203-5149 Bearing 2 (after 04/2013)
5c 250-1152 Bearing 2 (after 09/2011)
6 203-1366 Screw 3
7 375-9732 Washer D8 3
8 203-5150 Support bracket 1
9a 203-5151 Carbon brush 2
9b 203-7210 Traction drive motor 1
10 189-0897 Washer D8 4
11 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
12 203-5154 Support bracket 1
13 189-1499 Screw 4
14 189-0897 Washer D8 4
15a 203-5047 Keyway 2 (after 06/2012)
15b 189-0907 Square keyway 2 (before 06/2012)
16 203-1323 Screw 2
17 203-0971 Washer D6 2
18 203-0971 Washer D6 2
19 189-1497 Screw 6 x 16 inch 8 (after 07/2012)
20 203-1286 Washer D6 8 (after 07/2012)
21 189-1536 Nut with nylon ring 8 (after 07/2012)
22 203-5155 Bracket 1 (after 07/2012)
23 203-5156 Flap 1 (after 07/2012)
24 189-1391 Washer D6 4 (after 07/2012)
