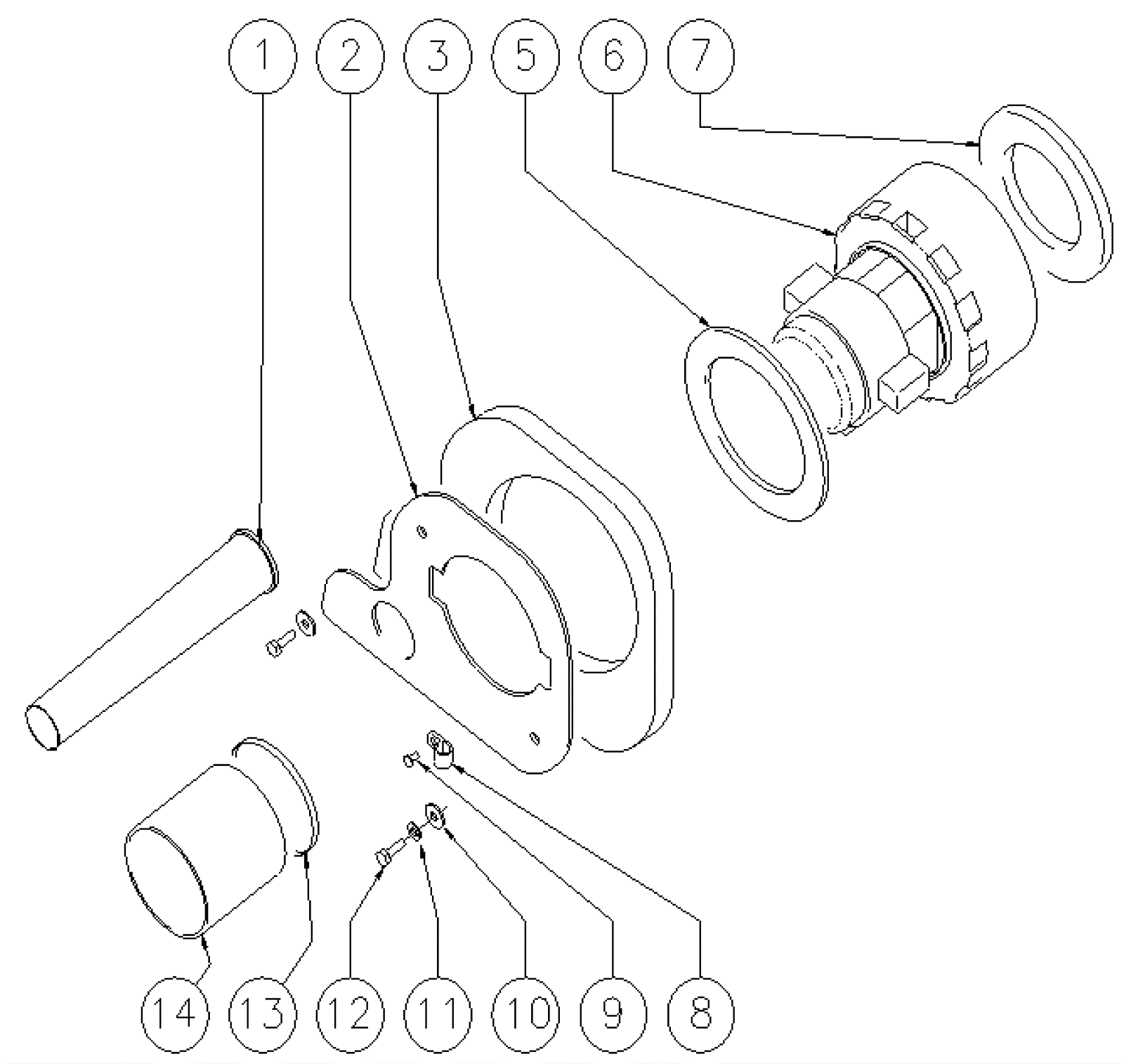

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
203-4661
|
Tube |
1 |
(after 06/2007) |
|
1b |
203-4662
|
Tube |
1 |
(before 06/2007) |
|
2 |
203-4663
|
Flange |
1 |
|
|
3 |
203-4664
|
Sound-proofing aspirator |
1 |
|
|
5 |
203-4665
|
Flange |
1 |
|
|
6a |
203-4666
|
Carbon brush (sold individually) |
2 |
|
|
6b |
203-3359
|
24V 2 stage vacuum motor |
1 |
|
|
7 |
203-4495
|
Gasket |
1 |
|
|
8 |
203-4730
|
P clamp |
1 |
|
|
9 |
189-1634
|
Screw 4 x 8 inch |
1 |
|
|
10 |
189-1391
|
Washer D6 |
2 |
|
|
11 |
203-0971
|
Washer D6 |
2 |
|
|
12 |
189-1497
|
Screw 6 x 16 inch |
2 |
|
|
13a |
203-4668
|
Clamp |
1 |
(after 05/2007) |
|
13b |
203-4671
|
Clamp |
1 |
(before 04/2007) |
|
14 |
203-4673
|
Tube |
1 |
|
|
