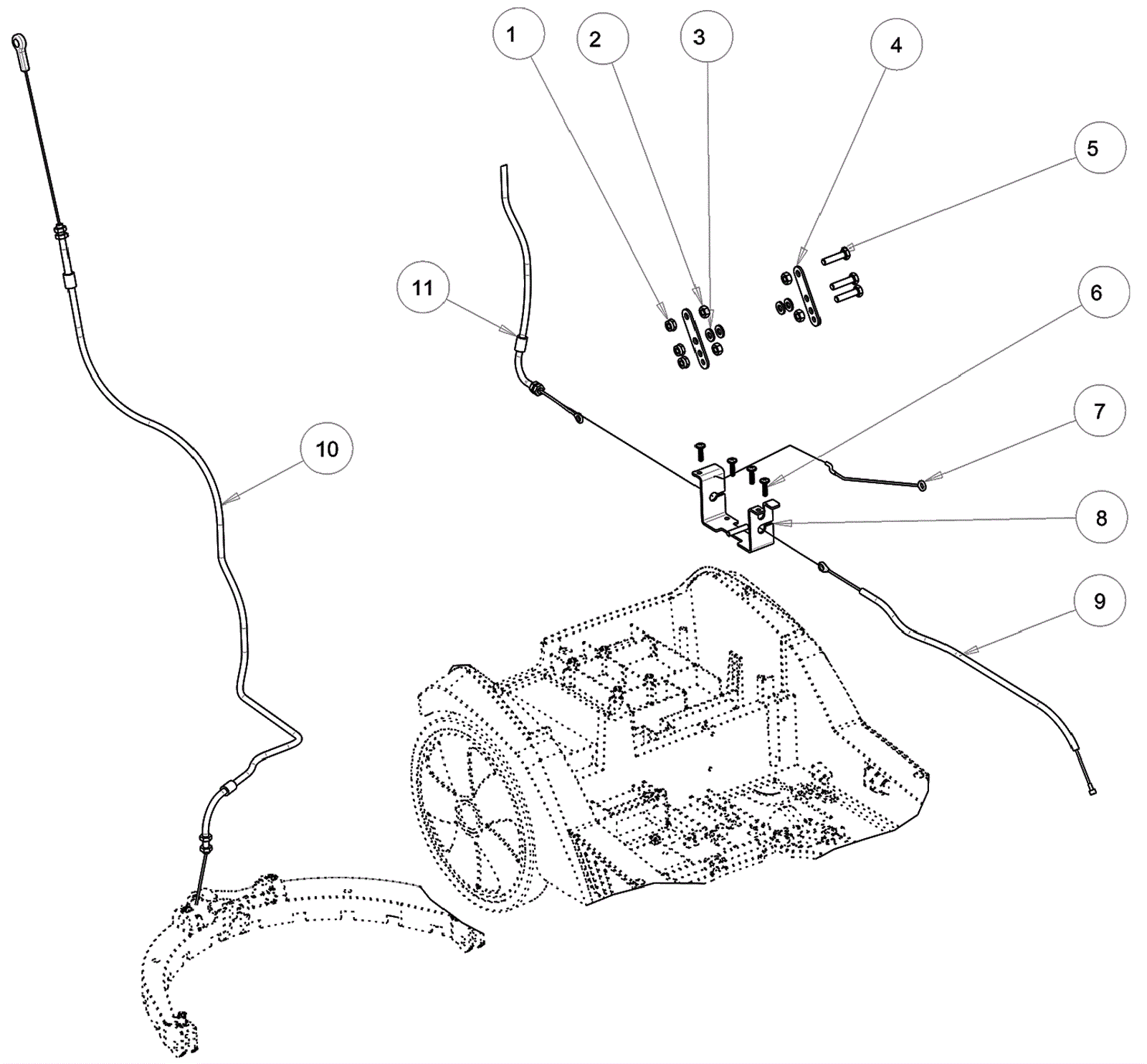

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-9499
|
Nut M6 inox |
3 |
|
|
2 |
189-1489
|
Nut M6 |
4 |
|
|
3 |
203-1286
|
Washer D6 |
4 |
|
|
4 |
203-6114
|
Lever |
2 |
|
|
5 |
189-1537
|
Screw |
3 |
|
|
6 |
203-6068
|
Screw 4 x 16 |
4 |
|
|
7 |
203-6115
|
Cable |
1 |
|
|
8 |
203-6116
|
Bracket |
1 |
|
|
9 |
203-6117
|
Front squeegee cable |
1 |
|
|
10 |
203-6118
|
Floor wiper cable |
1 |
|
|
11 |
203-6119
|
Cable valve and floor wiper |
1 |
|
|
