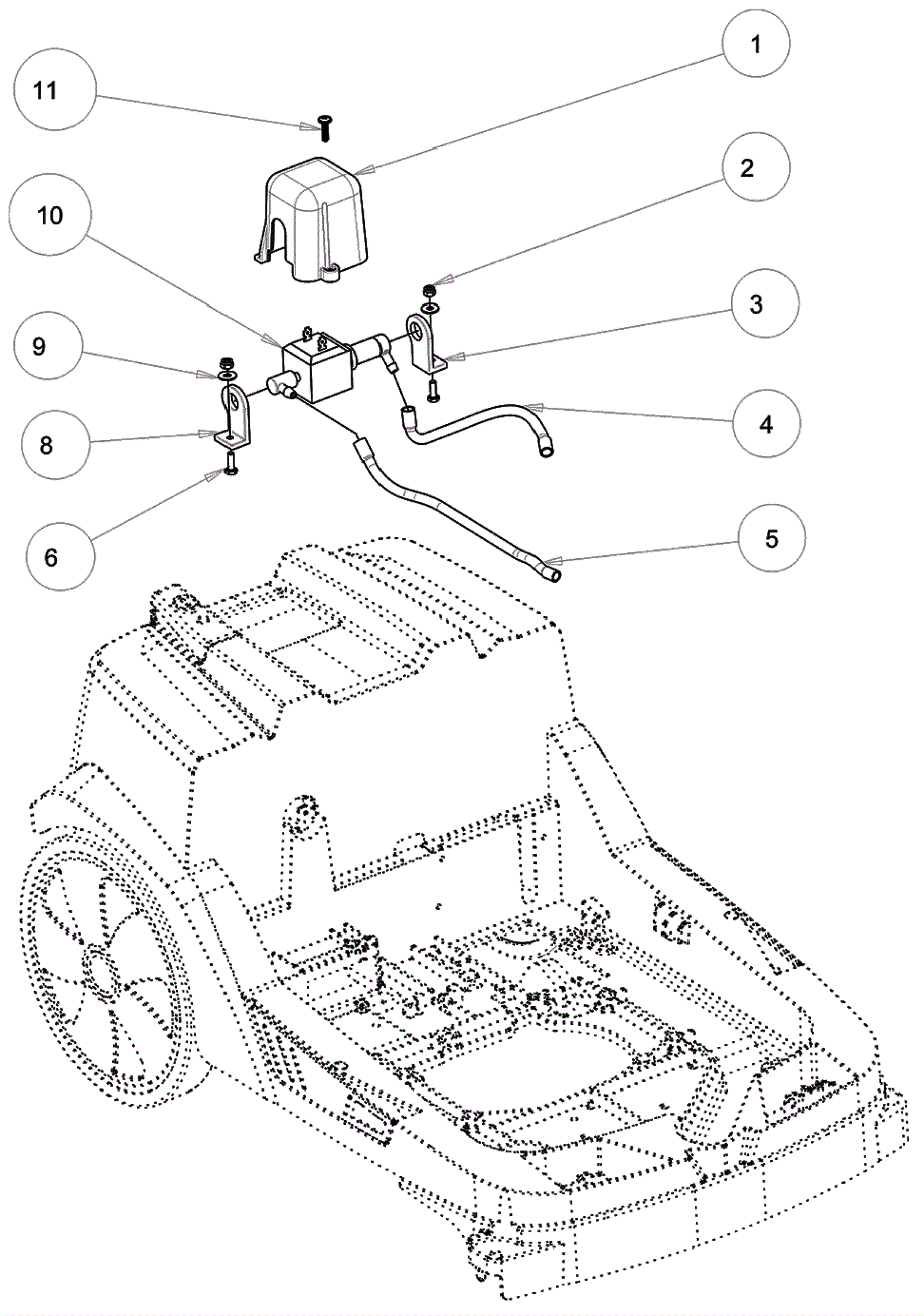

CT5 Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-6108 Pump covering $19.80 1 usually ships 10-12 days
2 203-4332 Nut $3.37 2 usually ships 1-5 days
3 203-6109 Right hand side pump support $0.99 1 usually ships 10-12 days
4 203-6110 Tube 5 x 8 $5.50 1 usually ships 10-12 days
5 203-6111 Tube 5 x 8 $5.50 1 usually ships 10-12 days
6 203-0144 Screw $3.94 2 usually ships 1-5 days
8 203-6112 Left hand side pump support $1.06 1 usually ships 10-12 days
9 203-5800 Washer 4x12 steel inox $2.90 2 usually ships 10-12 days
10 203-6113 24V pump $58.63 1 usually ships 10-12 days
11 203-5878 Screw 4x16 $0.99 1 usually ships 10-12 days
