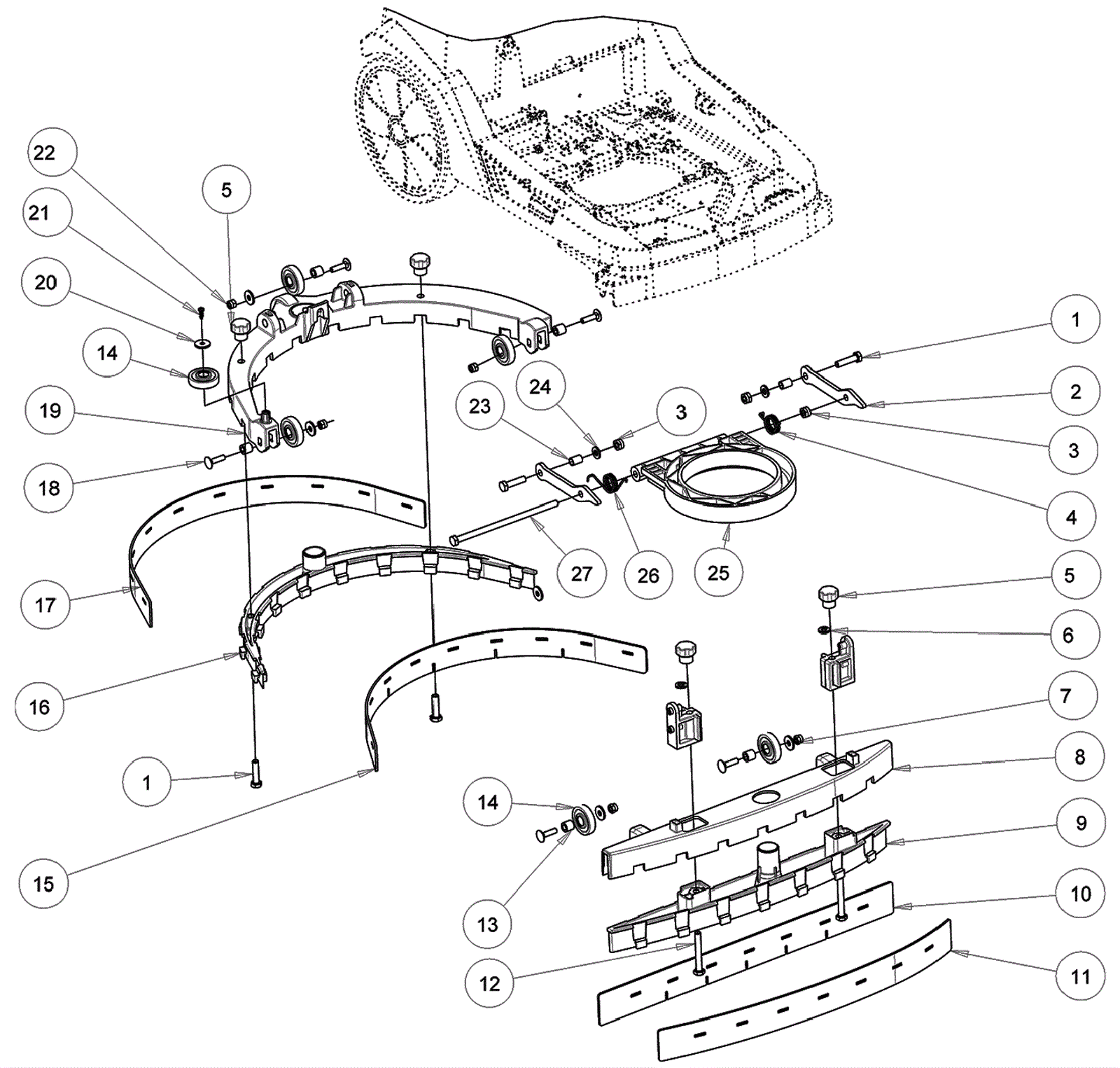

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-1537
|
Screw |
4 |
|
|
2 |
203-6095
|
Bracket |
2 |
|
|
3 |
375-9499
|
Nut M6 inox |
3 |
|
|
4 |
203-6096
|
Right hand floor wiper spring |
1 |
|
|
5 |
203-6097
|
Squeegee knob |
4 |
|
|
6 |
203-0971
|
Washer D6 |
2 |
|
|
7 |
189-1462
|
Washer 5 x 14 inch |
5 |
|
|
8 |
203-6098
|
Front squeegee body |
1 |
|
|
9 |
203-6099
|
Front squeegee joint |
1 |
|
|
10 |
203-5971
|
Straight squeegee blade rear (latex) |
1 |
|
|
11 |
203-5972
|
Straight squeegee blade front (latex) |
1 |
|
|
12 |
189-1509
|
Screw M6 |
2 |
|
|
13 |
203-6100
|
Spacer |
5 |
|
|
14 |
203-6101
|
Wheel |
6 |
|
|
15 |
203-5973
|
Curved Squeegee blade rear (latex) |
1 |
|
|
16 |
203-6102
|
Rear squeegee joint |
1 |
|
|
17 |
203-5974
|
Curved Squeegee blade front (latex) |
1 |
|
|
18 |
203-4987
|
Screw |
5 |
|
|
19 |
203-6103
|
Rear squeegee body |
1 |
|
|
20 |
203-0145
|
Washer 4-16 inch |
1 |
|
|
21 |
189-2243
|
5-10 inch M. 3 screw |
1 |
|
|
22 |
189-1484
|
Nut M5 |
5 |
|
|
23 |
203-6104
|
Spacer |
2 |
|
|
24 |
203-1286
|
Washer D6 |
2 |
|
|
25 |
203-6105
|
Squeegee support |
1 |
|
|
26 |
203-6106
|
Left hand floor wiper spring |
1 |
|
|
27 |
203-6107
|
Screw M6 x 130 |
1 |
|
|
