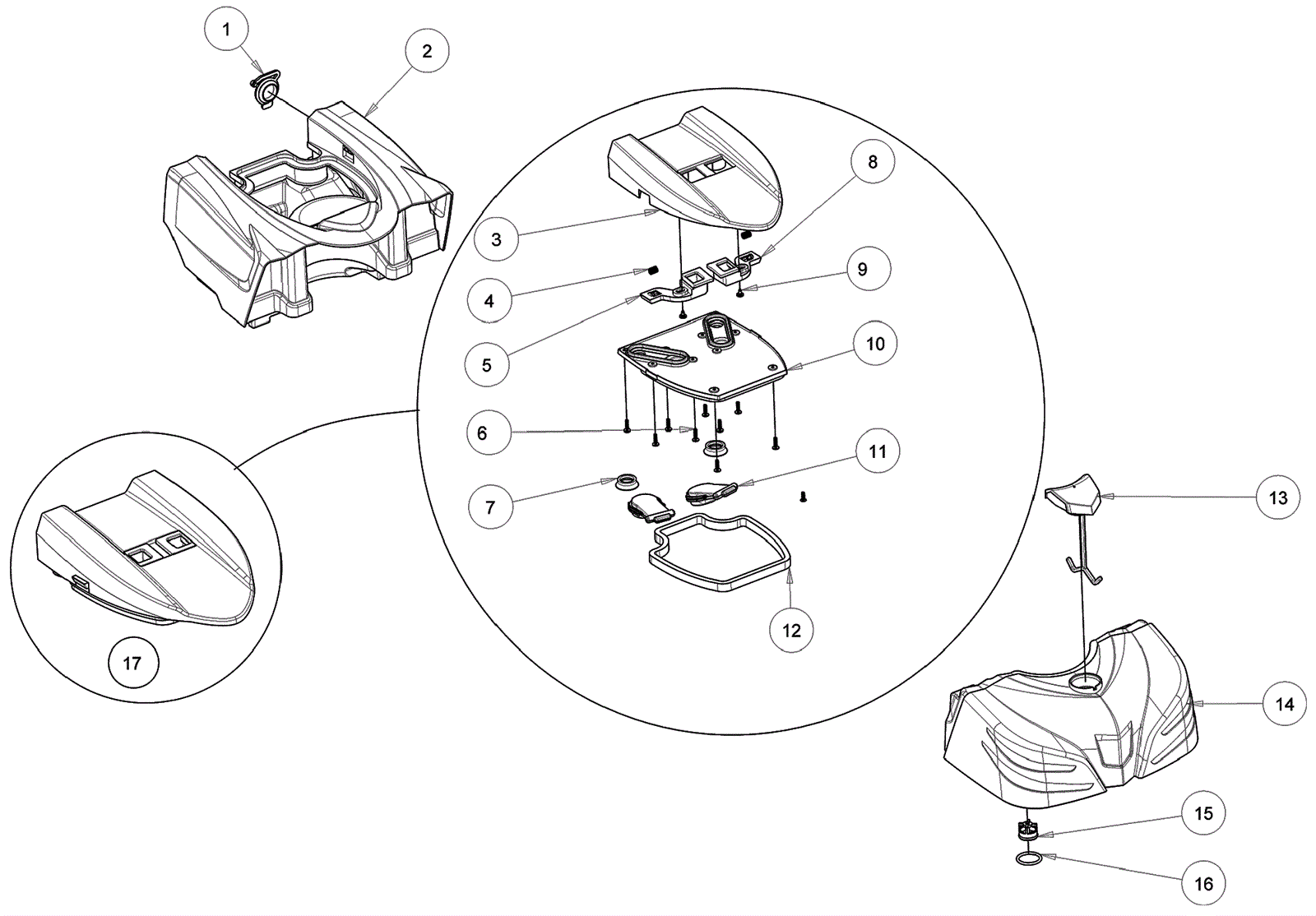

Tank Assembly

#PartDescription ReqNotesAvailability
1 203-6080 Cap 1
2 203-6081 Recovery tank 1
3 203-6082 Recovery tank cover 1
4 203-6083 Cover spring 2
5 203-6084 Left hand lever 1
6 203-5878 Screw 4x16 10
7 203-6085 Cover gasket 2
8 203-6086 Right hand lever 1
9 203-4944 Screw M6 x 10 2
10 203-6087 Recovery tank base cover 1
11 203-6088 Floater 2
12 203-6089 Tank lid gasket 1
13 203-6090 Solution tank cap 1
14 203-6091 Solution tank 1
15 203-6092 Valve 1
16 203-6093 O-ring 1
17 203-6094 Recovery tank cover kit 1 (includes 3-12)
