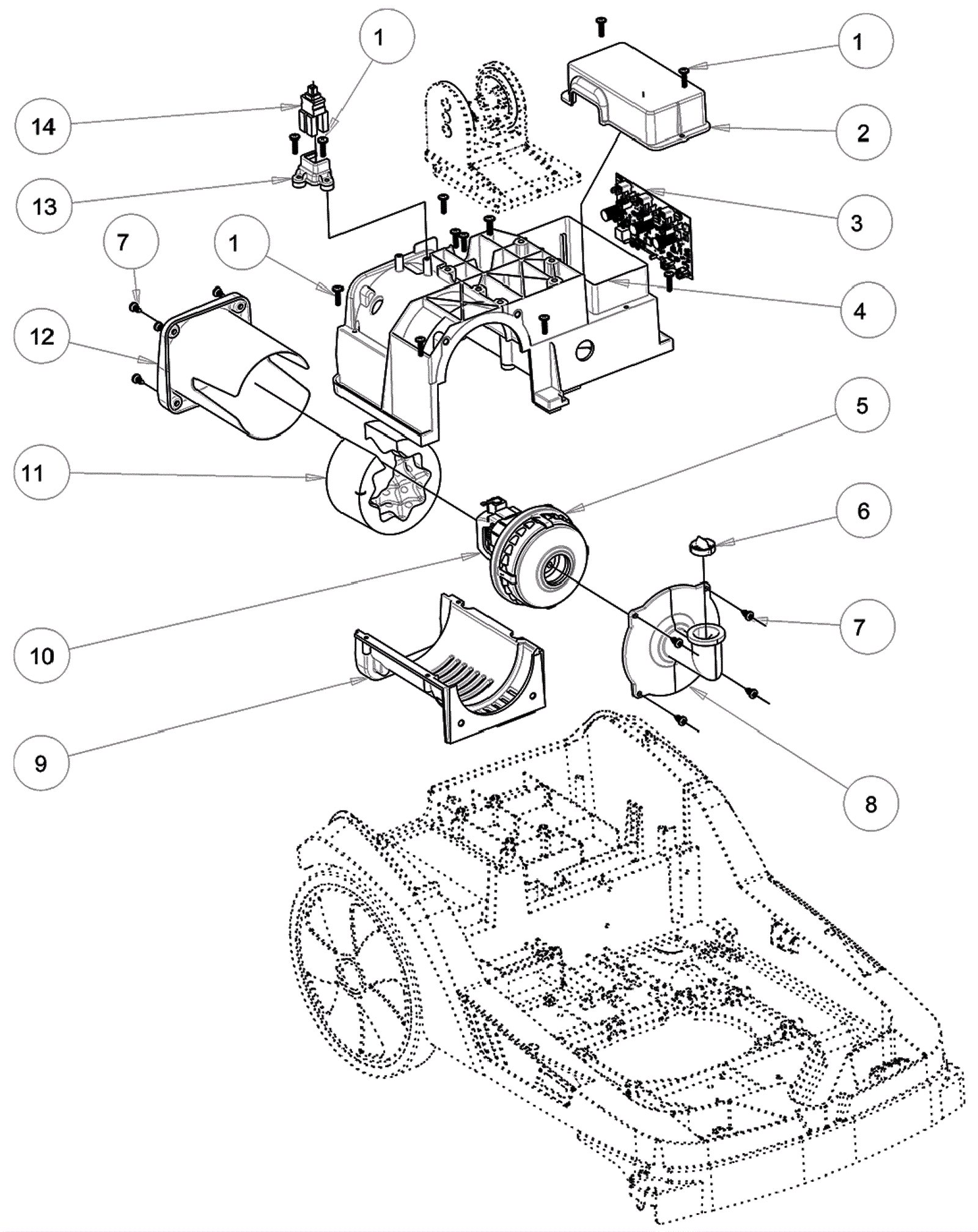

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-6068
|
Screw 4 x 16 |
17 |
|
|
2 |
203-6069
|
Electronic board cover |
1 |
|
|
3 |
203-6070
|
36V power board |
1 |
|
|
4 |
203-6032
|
Vacuum motor support |
1 |
|
|
5 |
203-6071
|
Vacuum motor gasket |
1 |
|
|
6 |
203-6072
|
Air inlet filter |
1 |
|
|
7 |
375-9544
|
Screw 5 x 12 |
8 |
|
|
8 |
203-6073
|
Vacuum motor flange |
1 |
|
|
9 |
203-6074
|
Lower vacuum motor support |
1 |
|
|
10 |
203-6075
|
Vacuum |
1 |
|
|
11 |
203-6076
|
Insulator |
1 |
|
|
12 |
203-6077
|
Motor flange |
1 |
|
|
13 |
203-6078
|
Button support |
1 |
|
|
14 |
203-6079
|
Main on/off switch |
1 |
|
|
