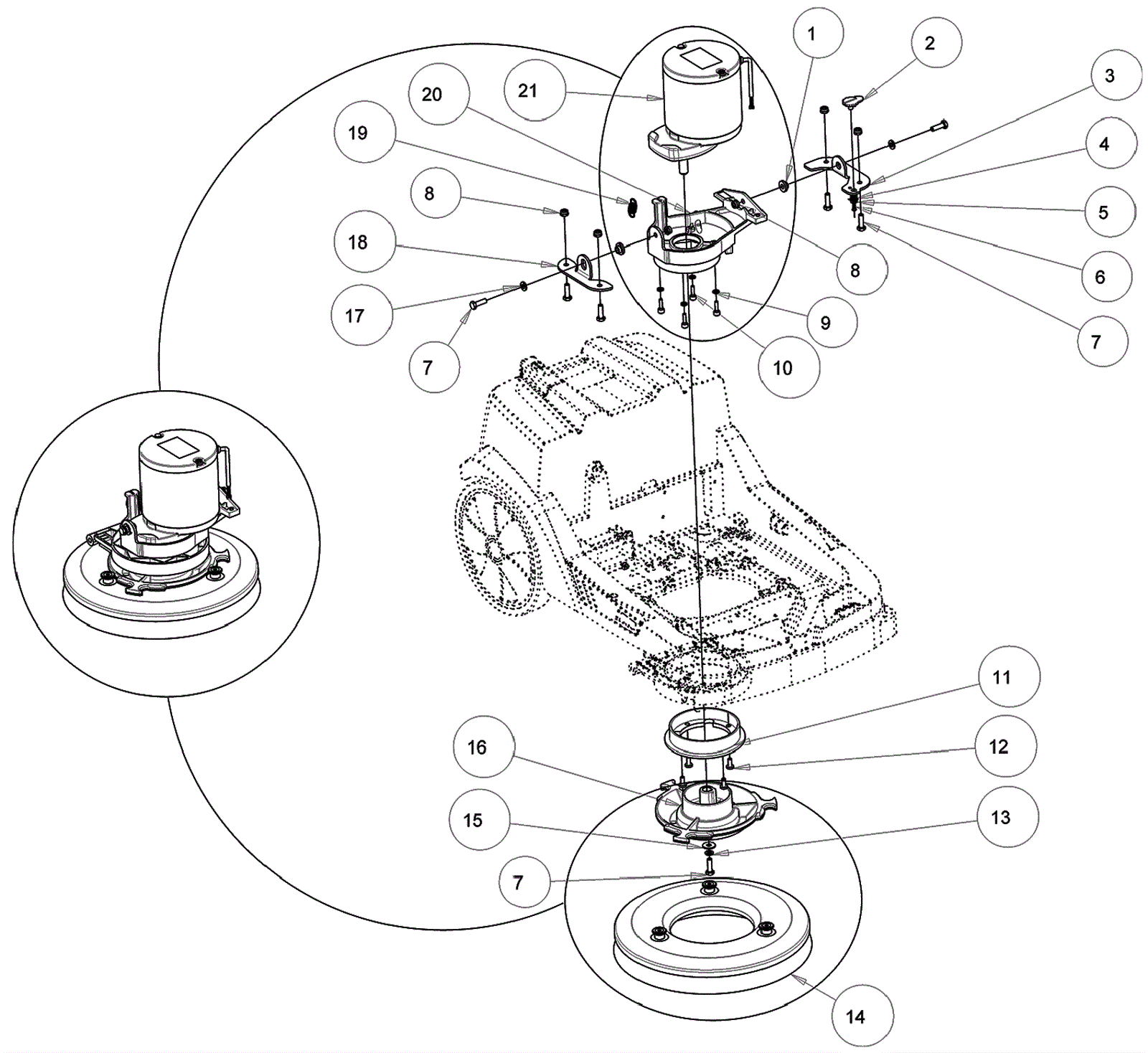

Motor Assembly

#PartDescription ReqNotesAvailability
1 203-6055 Spacer 2
2 375-9529 Small knob 1
3 203-6057 Bracket 1
4 203-6058 Traction lever spring 1
5 203-0235 Washer 1
6 189-2243 5-10 inch M. 3 screw 1
7 189-1445 Turned eye screw 7
8 375-9499 Nut M6 inox 6
9 203-4956 Spring lock washer 4
10 203-6059 Screw 5 x 16 inox 4
11 203-6060 Squeegee rotation flange 1
12 203-6061 Screw 5 x 12 4
13 203-0971 Washer D6 1
14 203-6062 11 inch medium brush 1
15 189-1391 Washer D6 1
16 203-6063 Drive disk 1
17 203-1286 Washer D6 2
18 203-6064 Bracket 1
19 203-6065 Brush motor spring 1
20 203-6066 Brush motor support 1
21 203-6067 36V 100W motor brush 1
