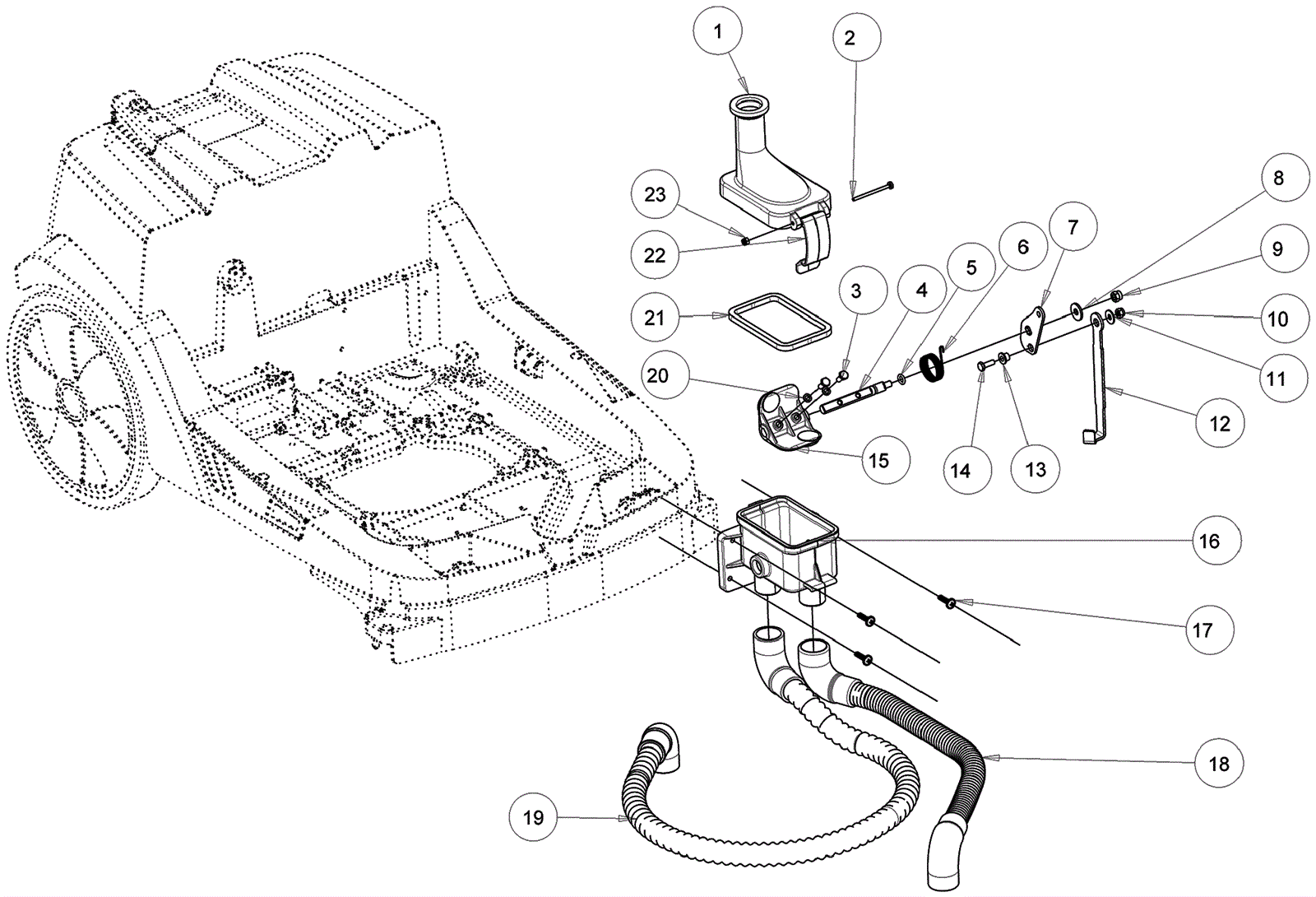

Valve Assembly

#PartDescription ReqNotesAvailability
1 203-6041 Valve cover 1
2 203-6042 Screw M3 x 40 crosshead 1
3 189-1431 Screw 2
4 203-6043 Shaft 1
5 203-6044 O-ring 1
6 203-6045 Valve spring 1
7 203-6046 Bracket 1
8 189-1462 Washer 5 x 14 inch 1
9 189-1484 Nut M5 1
11 375-5391 Washer 12D 1
12 203-6047 Lever 1
13 203-6048 Spacer 1
14 203-0144 Screw 1
15 203-6049 Valve 1
16 203-6050 Valve body 1
17 203-5878 Screw 4x16 3
18 203-6051 Front squeegee hose 1
19 203-6052 Rear squeegee hose 1
20 203-4740 Washer D4 2
21 203-6053 Flow valve gasket 1
22 203-6054 Cap 1
23 203-4787 Nut M3 1
