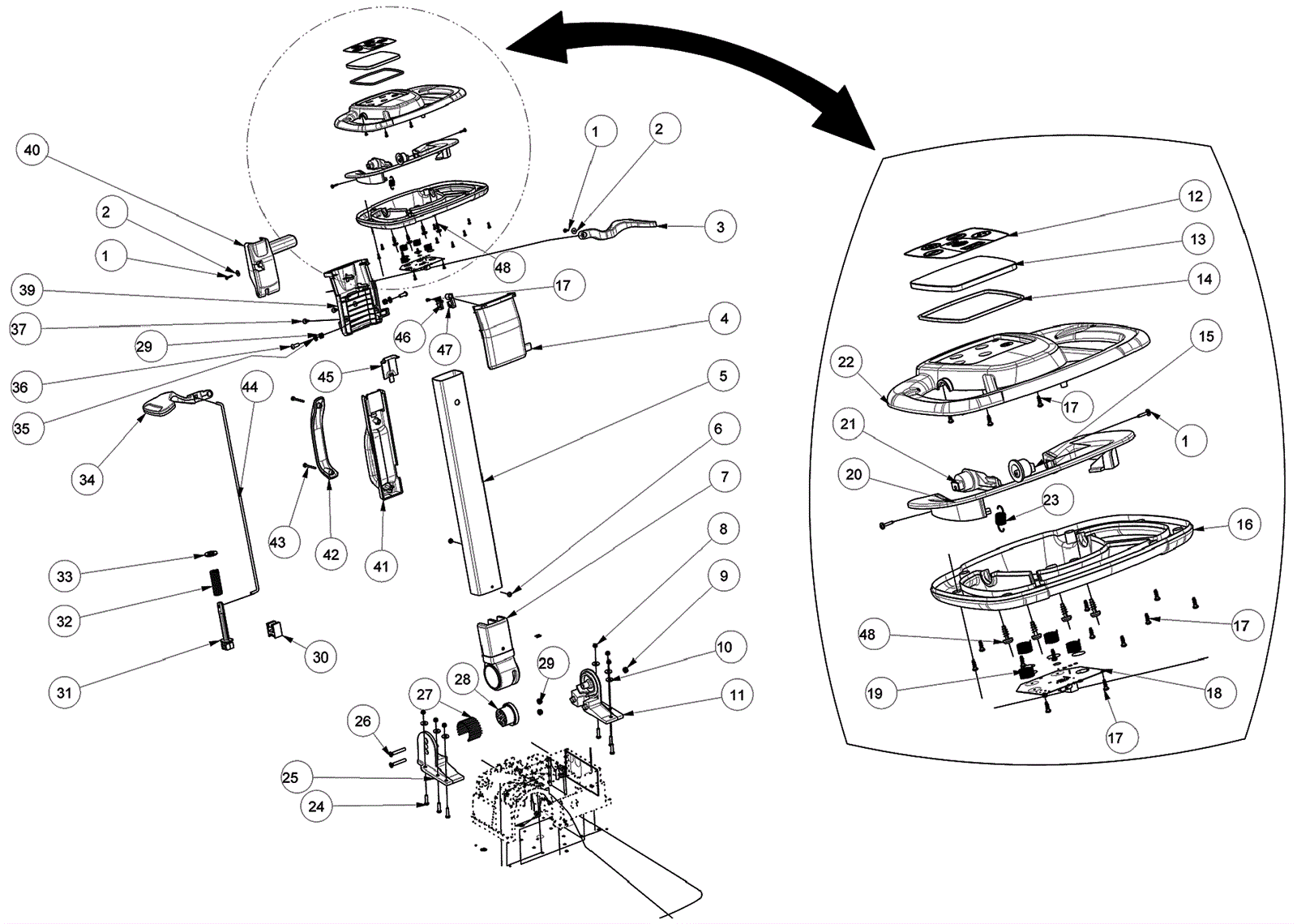

Handle Assembly

#PartDescription ReqNotesAvailability
1 189-1624 Screw 3 1/2 x 16 inch 4
2 375-5391 Washer 12D 2
3 203-6007 Lever 1
4 203-6008 Anterior board support 1
5 203-6009 Handle aluminium 1
6 203-4944 Screw M6 x 10 2
7 203-6010 Handle joint 1
8 203-0789 Nut 6
9 189-1536 Nut with nylon ring 1
10 189-1462 Washer 5 x 14 inch 6
11 203-6011 Handle support 1
12 203-6012 Decal board 1
13 203-6013 Transparent dashboard protection 1
14 203-6014 Mousse board 1
15 203-6015 Left hand blade paddle 1
16 203-6016 Base board 1
17 189-2243 5-10 inch M. 3 screw 18
18 203-6017 Board logic panel 1
19 203-6018 Spring touch 4
20 203-6019 Paddle activation 1
21 203-6020 Right hand support paddle 1
22 203-6021 Dashboard 1
23 203-6022 Spring paddle 1
24 203-5980 Screw 5x20 6
25 203-6023 Support handle 1
26 203-6024 Screw M6 x 40 2
27 203-6025 Handle pin 18
28 203-6026 On/off button 1
29 375-9499 Nut M6 inox 4
30 203-6028 Support 1
31 203-6029 Handle rack 1
32 203-6030 Articulation handle spring block 1
33 189-1366 Washer D14 1
34 203-6031 Lever 1
35 203-1286 Washer D6 2
36 189-1627 Screw 6-16 inch 2
37 375-5420 Screw 5x16 pan torx head (Tennant Industrial) 2
38 203-6032 Vacuum motor support 1
39 203-6033 Rear board support 1
40 203-6034 Anterior squeegee lever 1
41 203-6035 Transport handle 1
42 203-6036 Outlet handle covering 1
43 203-6037 Screw M4-40 2
44 203-6038 Handle rod 1
45 203-6039 Outlet handle cap 1
46 203-5871 Microswitch 1
47 203-6040 Support 1
48 203-5947 Screw 6x16 4
