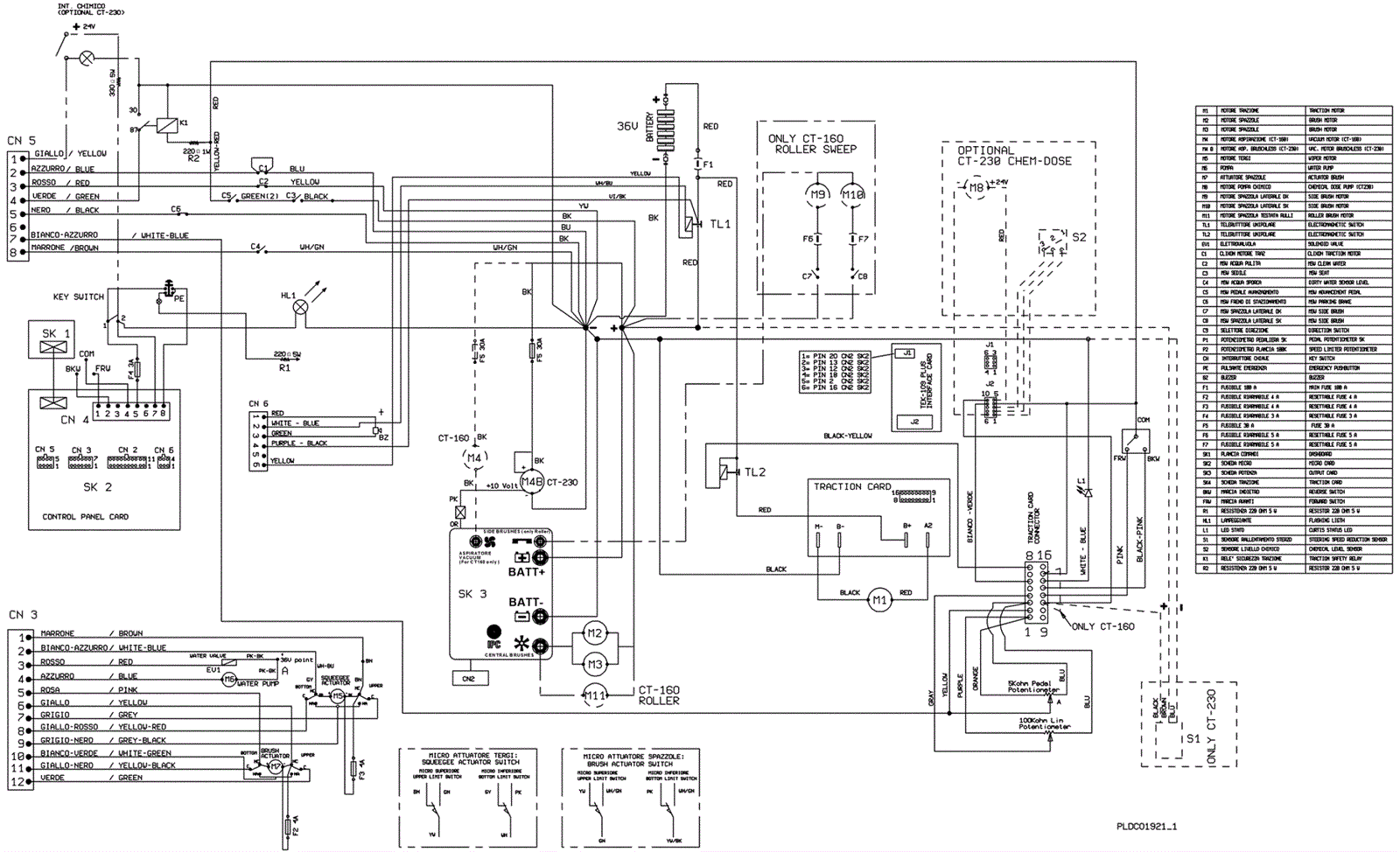

CT230 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
EV1 203-4267 Solenoid valve $255.76 1 usually ships 1-5 days
M1 203-1539 Drive assembly $3,488.56 1 usually ships 5-15 days
M3 203-1499 Motor $1,534.96 1 usually ships 5-15 days
M5 203-7209 Squeegee actuator $488.40 1 usually ships 5-15 days
M7 203-1509 Actuator $837.25 1 usually ships 5-15 days
SK3 203-1562 Power service board $558.17 1 usually ships 5-15 days
TL1 203-1564 100amp contactor $125.58 1 usually ships 5-15 days
TL2 203-1564 100amp contactor $125.58 1 usually ships 5-15 days
