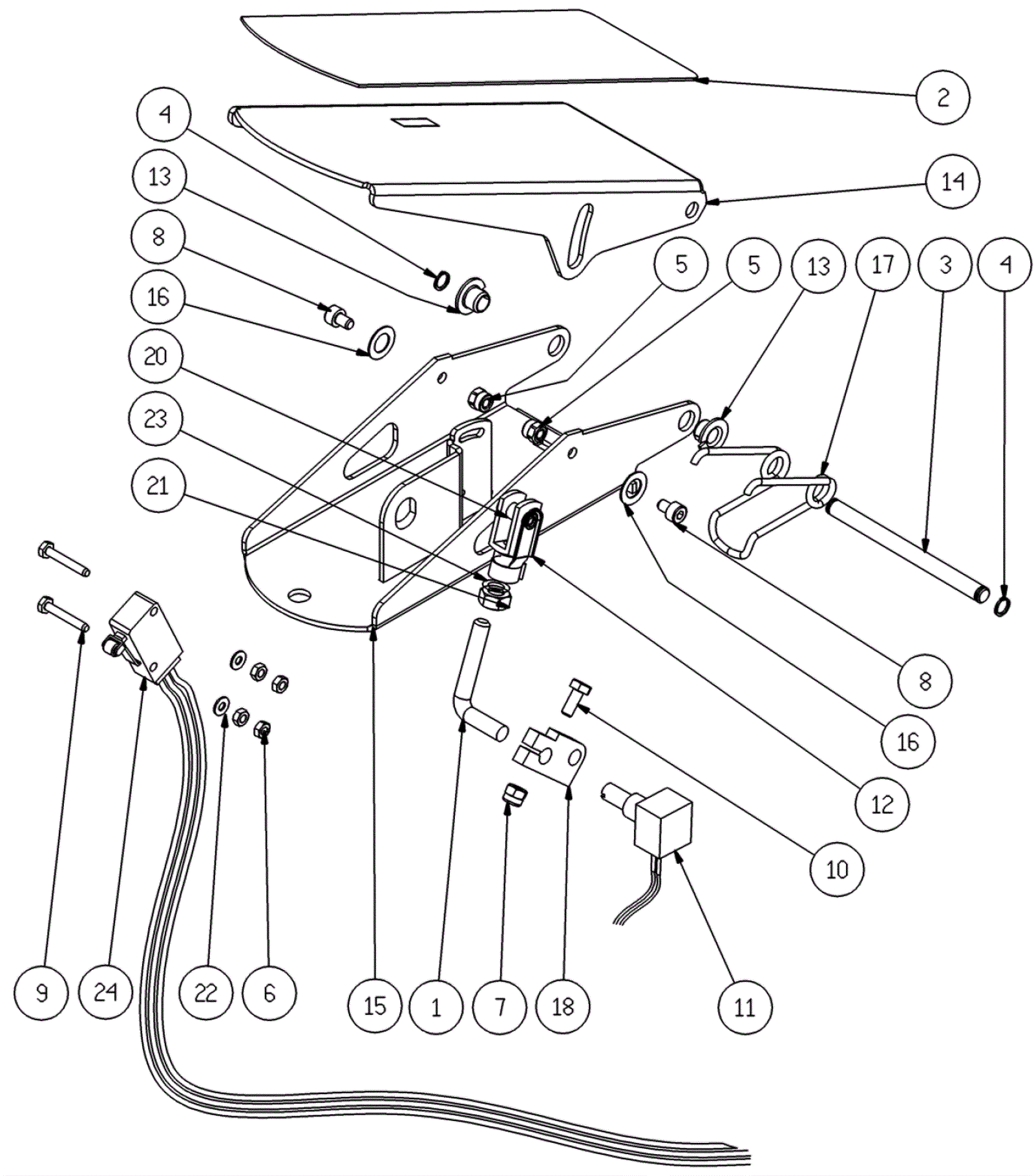

CT230 Accelerator Assembly

#PartDescriptionPriceReqNotesAvailability
2 203-4329 Pedal pad $38.72 1 usually ships 1-5 days
3 203-4278 Pin $3.82 1 ships same day
4 203-1356 Circlip $4.49 2 usually ships 10-12 days
5 189-1384 Nut M4 $0.99 2 usually ships 10-12 days
6 189-1446 Nut M3 $3.37 2 usually ships 1-5 days
7 189-1384 Nut M4 $0.99 1 usually ships 10-12 days
8 203-4333 Screw $3.96 2 usually ships 1-5 days
9 999-1897 Screw M3-.5 x 20mm hex head $0.99 2 usually ships 1-5 days
10 189-1406 Screw $3.96 1 usually ships 1-5 days
11 203-7089 Accelerator wiring $102.63 1 usually ships 10-12 days
12 203-4328 Clip $16.39 1 usually ships 1-5 days
13 203-7093 Bushing $4.09 2 usually ships 10-12 days
14 203-4320 Pedal $195.00 1 usually ships 1-5 days
15 203-4320 Pedal $195.00 1 usually ships 1-5 days
16 203-7094 Washer $15.29 2 usually ships 10-12 days
17 203-4277 Pedal spring $22.33 1 usually ships 1-5 days
18 203-4330 Connecting rod $152.89 1 usually ships 1-5 days
20 203-4327 Fork $13.09 1 usually ships 1-5 days
21 203-4326 Nut $3.43 1 usually ships 10-12 days
22 203-7097 Washer $28.60 2 usually ships 10-12 days
23 203-7095 Washer $16.06 1 usually ships 10-12 days
24 203-7096 Wiring $81.51 1 usually ships 10-12 days
