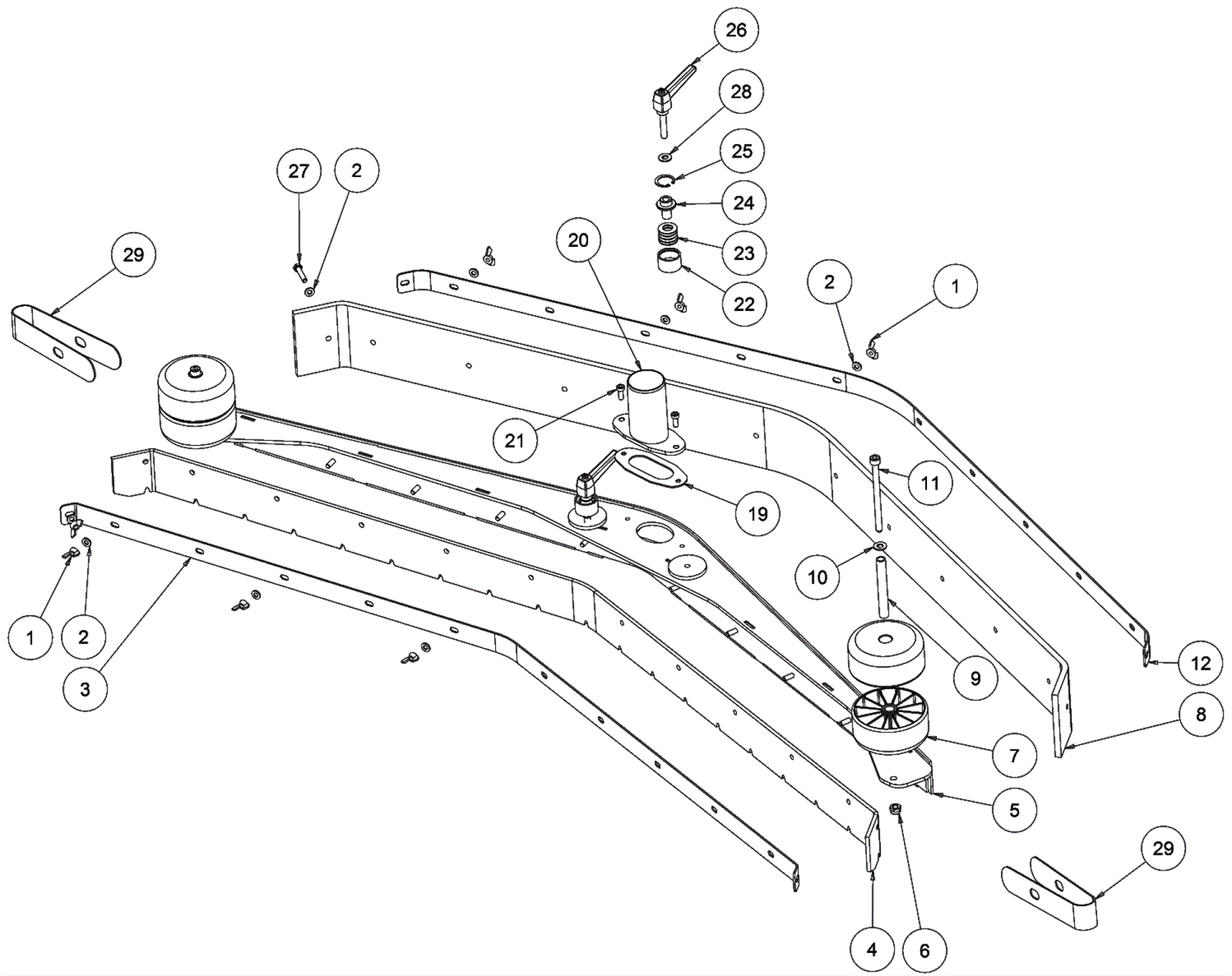

CT230 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1308 Nut M6-1 hex stainless steel $0.99 14 ships same day
2 203-1286 Washer D6 $0.90 16 usually ships 5-15 days
3 203-1530 Bracket $148.44 1 usually ships 5-15 days
4 203-7198 Squeegee blade front $101.86 1 usually ships 5-15 days
5 203-1531 Squeegee body $1,087.07 1 usually ships 5-15 days
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
7 203-1500 Wheel $13.46 4 usually ships 5-15 days
8 203-7199 Squeegee blade rear $241.43 1 usually ships 5-15 days
9 203-1501 Pin $34.88 2 usually ships 5-15 days
10 189-1400 Washer $4.32 2 usually ships 5-15 days
11 203-1503 Screw M8 x 110mm $8.46 2 usually ships 5-15 days
12 203-1532 Squeegee bracket $165.61 1 usually ships 5-15 days
19 203-1533 Squeegee intake gasket $11.83 1 usually ships 5-15 days
20 203-1534 Connector $168.37 1 usually ships 5-15 days
21 203-1323 Screw $4.34 2 usually ships 1-5 days
22 203-1387 Spring washer holder $62.72 2 usually ships 1-5 days
23 203-1388 Spring $15.30 12 usually ships 1-5 days
24 203-1386 Pin $52.41 2 usually ships 1-5 days
25 203-1389 Circlip $4.32 2 usually ships 1-5 days
26 203-1390 Rachet lever $223.95 2 usually ships 1-5 days
27 999-9108 Screw M6-1 x 30mm hex head stainless steel $0.99 2 ships same day
28 189-0897 Washer D8 $1.00 2 usually ships 5-15 days
29 203-1535 Duct lock $6.89 2 usually ships 5-15 days
