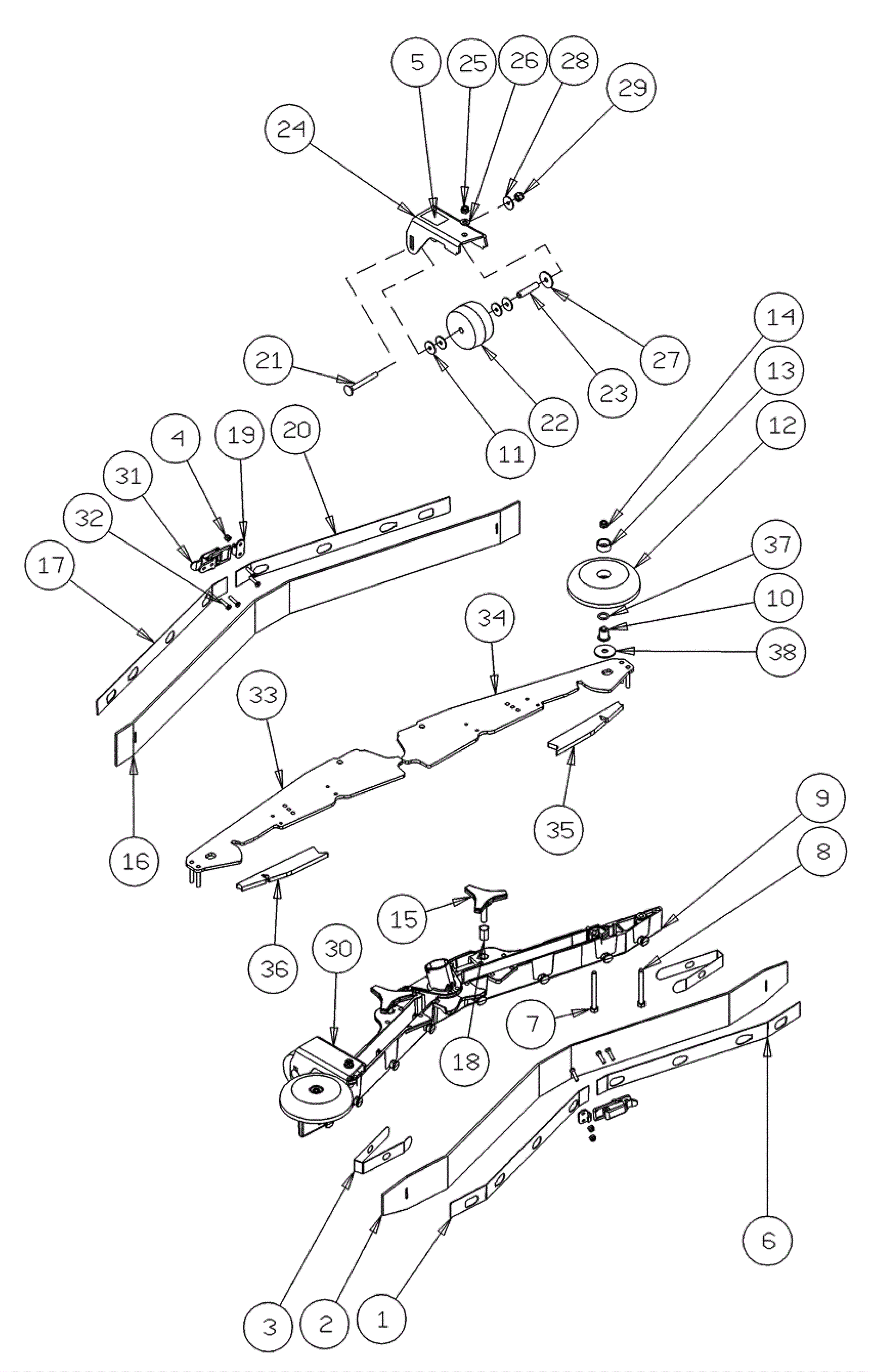

CT80 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-5420 Sheet metal $32.91 1 usually ships 10-12 days
2 203-3382 Front latex blade $70.44 1 ships same day
3 203-4585 Closure $1.23 2 usually ships 1-5 days
4 203-4787 Nut M3 $3.37 8 usually ships 10-12 days
5 203-5421 Decal $26.22 2 usually ships 10-12 days
6 203-5422 Sheet metal $32.35 1 usually ships 10-12 days
7 203-4778 Screw 6 x 65 $3.94 4 usually ships 10-12 days
9 203-5423 Body $113.96 1 usually ships 10-12 days
10 203-0920 Spacer $10.29 2 usually ships 10-12 days
11 189-1393 Washer $2.79 4 usually ships 1-5 days
12 189-0060 Wheel $7.85 2 usually ships 10-12 days
13 189-5086 Bushing $14.41 2 usually ships 10-12 days
14 189-1536 Nut with nylon ring $1.98 2 usually ships 5-9 days
15 203-4768 Knob $9.35 2 ships same day
16 203-3383 Rear latex blade $70.46 1 ships same day
17 203-5425 Sheet metal $32.16 1 usually ships 10-12 days
18 203-5426 Insert $22.67 2 usually ships 10-12 days
19 203-4772 Socket $7.11 2 usually ships 10-12 days
20 203-5427 Sheet metal $33.47 1 usually ships 10-12 days
21 203-5428 Screw M6 $3.94 2 usually ships 10-12 days
22 203-5429 Wheel $2.77 2 usually ships 10-12 days
23 203-5430 Spacer $8.79 2 usually ships 10-12 days
24 203-5431 Support $35.10 1 usually ships 10-12 days
25 203-0524 Nut M6 lock $5.50 2 usually ships 1-5 days
26 203-1286 Washer D6 $2.79 2 usually ships 10-12 days
27 189-1398 Washer 6 x 24 inch $2.79 2 usually ships 10-12 days
28 189-1391 Washer D6 $0.99 2 usually ships 10-12 days
29 203-0524 Nut M6 lock $5.50 2 usually ships 1-5 days
30 203-5432 Support $35.10 1 usually ships 10-12 days
31 203-4765 Retainer closure $9.72 2 usually ships 10-12 days
32 203-4788 Screw 3 x 8 inch $3.94 8 usually ships 10-12 days
33 203-5433 Plate Call for price 1 usually ships 10-12 days
34a 203-5434 Plate $49.19 1 usually ships 10-12 days
34b 203-5435 Plate $58.21 1 usually ships 10-12 days
35 203-5436 Gasket $20.57 1 usually ships 10-12 days
36 203-5437 Gasket $20.57 1 usually ships 10-12 days
37 189-0181 Gasket $2.77 2 usually ships 10-12 days
38 189-1398 Washer 6 x 24 inch $2.79 2 usually ships 10-12 days
