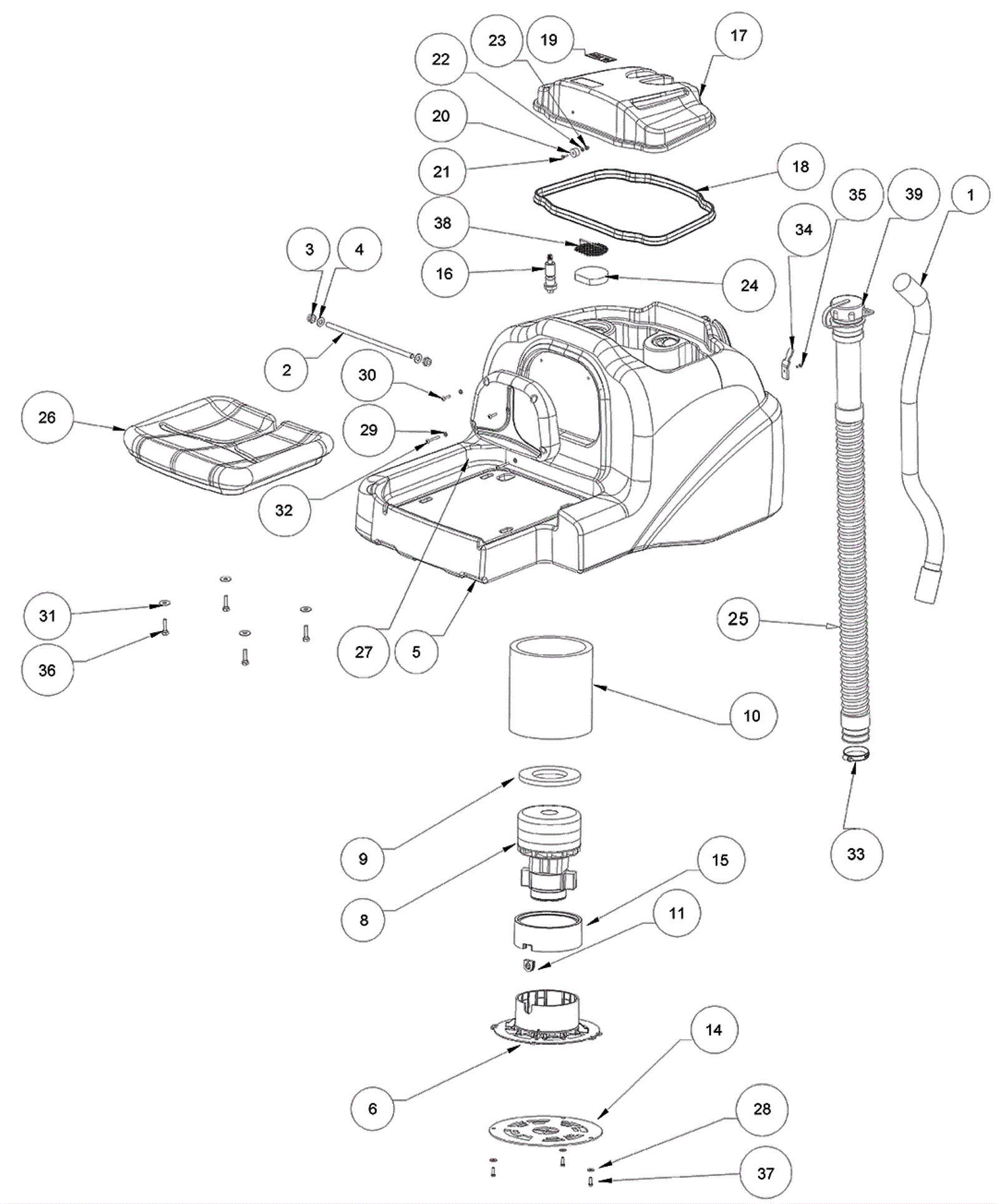

CT80 Tank Assembly - Version 2

#PartDescriptionPriceReqNotesAvailability
1 203-5332 Tube $76.24 1 usually ships 5-15 days
2 203-5333 Pin $34.41 1 usually ships 5-15 days
3 203-5013 Nut $4.44 2 usually ships 5-15 days
4 203-1325 Washer 10 x 21 inch washer $4.75 2 usually ships 1-5 days
5 203-5334 Tank $1,080.48 1 usually ships 5-15 days
6 203-5410 Baffle (OBSOLETE) $83.59 1 usually ships 5-15 days
8 203-5411 24V vacuum motor $337.68 1 usually ships 5-15 days
9 203-5412 Gasket $9.47 1 usually ships 5-15 days
10 203-5413 Insulation $35.95 1 usually ships 5-15 days
11 203-5414 Lead $34.10 1 usually ships 5-15 days
14 203-5415 Flange $68.51 1 usually ships 5-15 days
15 203-5416 Gasket $34.13 1 usually ships 5-15 days
16 203-5340 Floating level sensor $99.55 1 usually ships 5-15 days
17 203-5341 Cover $58.42 1 usually ships 5-15 days
18 203-5353 Gasket $30.70 1 usually ships 5-15 days
19 203-5342 Decal $8.53 1 usually ships 5-15 days
20 203-5343 Cap $6.15 1 usually ships 5-15 days
21 203-5344 Screw M4 $2.27 1 usually ships 5-15 days
22 203-0235 Washer $0.99 1 usually ships 5-15 days
23 203-4332 Nut $0.99 1 usually ships 1-5 days
24 203-5345 Filter $10.82 1 usually ships 5-15 days
25 203-5346 Drain hose $189.15 1 usually ships 5-15 days
26 203-5347 Seat $213.98 1 usually ships 5-15 days
27 203-5348 Back support $20.59 1 usually ships 5-15 days
28 189-1462 Washer 5 x 14 inch $2.29 3 ships same day
29 189-1353 Washer D5 $4.75 4 usually ships 1-5 days
30 189-2450 Screw $4.77 2 usually ships 1-5 days
31 189-1400 Washer $4.75 4 usually ships 5-15 days
32 203-5349 Screw M5 $2.02 2 usually ships 5-15 days
33 203-4399 Clamp $12.79 1 usually ships 5-15 days
34 203-5350 Hook $22.36 1 usually ships 5-15 days
35 189-1431 Screw $4.64 1 usually ships 1-5 days
36 203-1344 Screw $1.10 4 usually ships 1-5 days
37 189-1508 Turned eye screw $4.77 3 usually ships 1-5 days
38 203-5351 Net $49.68 1 usually ships 5-15 days
39 203-5352 Drain hose cap $55.14 1 usually ships 5-15 days
