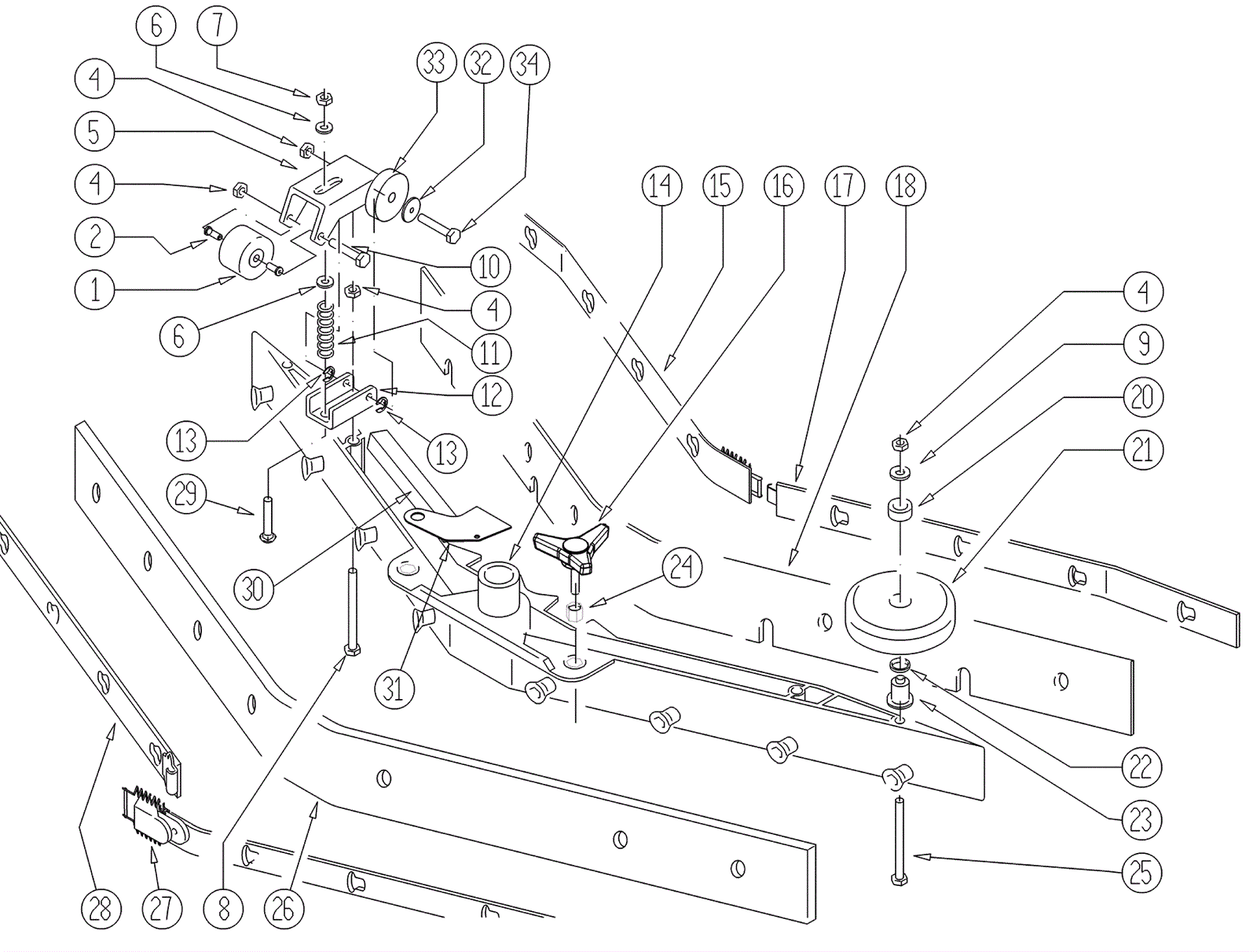

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
203-5239
|
Wheel |
2 |
|
|
2 |
203-5240
|
Bushing |
4 |
|
|
4 |
189-1536
|
Nut with nylon ring |
8 |
|
|
5 |
203-0916
|
Support |
2 |
|
|
6 |
189-0897
|
Washer D8 |
4 |
|
|
7 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
8 |
189-1509
|
Screw M6 |
2 |
|
|
9 |
203-1286
|
Washer D6 |
2 |
|
|
10 |
203-4779
|
Screw M6 x 50mm |
4 |
|
|
11 |
189-0285
|
Spring |
2 |
|
|
12 |
203-5241
|
Support |
2 |
|
|
13 |
203-4065
|
Seeger |
4 |
|
|
14 |
203-4777
|
Squeegee weldment |
1 |
|
|
15 |
203-5242
|
Blade holder |
1 |
|
|
16 |
203-4768
|
Knob |
2 |
|
|
17 |
203-5243
|
Blade holder |
1 |
|
|
18 |
189-0281
|
Squeegee blade front curved |
1 |
|
|
20 |
189-5086
|
Bushing |
2 |
|
|
21 |
189-0060
|
Wheel |
2 |
|
|
22 |
189-0181
|
Gasket |
2 |
|
|
23 |
203-0920
|
Spacer |
2 |
|
|
24 |
203-4338
|
Insert |
2 |
|
|
25 |
189-1539
|
Screw |
2 |
|
|
26 |
189-0284
|
Squeegee blade rear curved |
1 |
|
|
27 |
189-0282
|
Squeegee blade holder |
1 |
|
|
28 |
189-0283
|
Squeegee blade holder |
1 |
|
|
29 |
203-5244
|
Screw M8 |
2 |
|
|
30 |
203-5245
|
Weight |
2 |
|
|
31 |
203-5246
|
Sheet metal |
2 |
|
|
33 |
203-5247
|
Washer |
2 |
|
|
34 |
189-1539
|
Screw |
2 |
|
|
