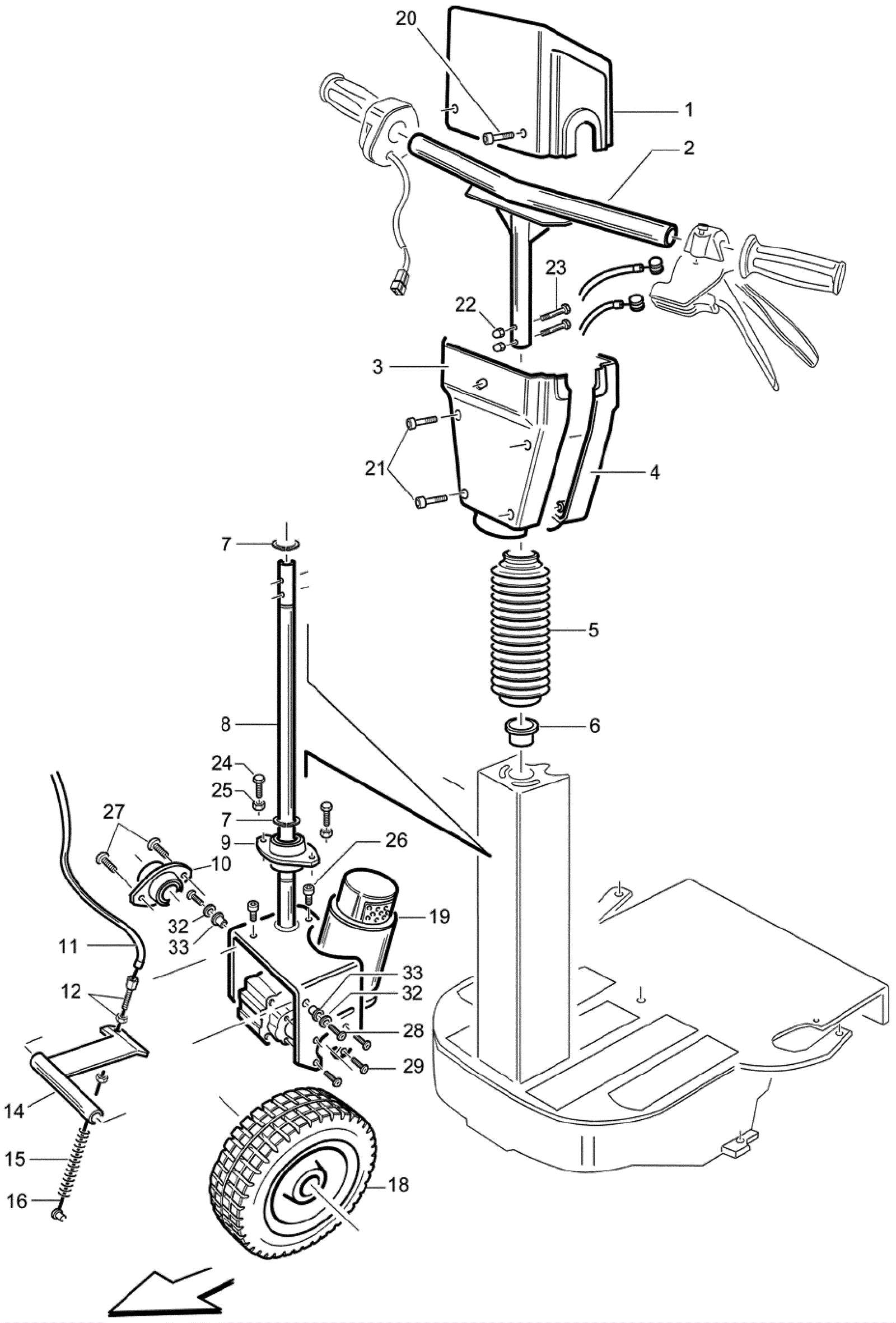

512R 28 INCH Traction Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-1437 Instrument panel $62.92 1 usually ships 11-14 days
2 203-1438 Handle $198.64 1 usually ships 11-14 days
3 203-1439 Bearing half $58.53 1 usually ships 11-14 days
4 203-1440 Bearing half $58.58 1 usually ships 11-14 days
5 203-1441 Protector $88.13 1 usually ships 11-14 days
6 203-3362 Bushing $12.71 1 usually ships 1-5 days
7 203-4496 Circlip $5.24 1 usually ships 1-5 days
8 203-1442 Shaft $611.13 1 usually ships 11-14 days
9 203-3363 Bearing $93.01 1 usually ships 1-5 days
10 189-0226 Bearing $13.95 1 usually ships 1-5 days
11 203-1446 Cable $100.08 1 usually ships 11-14 days
12 203-1986 Turned adjuster $33.66 1 usually ships 11-14 days
14 203-1444 Bracket $112.81 1 usually ships 11-14 days
15 203-1445 Brake spring $10.47 1 usually ships 11-14 days
16 203-1446 Cable $100.08 1 usually ships 11-14 days
18 203-1447 Wheel $368.54 1 usually ships 11-14 days
19 203-1448 24V drive motor $1,172.68 1 usually ships 11-14 days
20 203-1880 Screw $5.19 2 usually ships 1-5 days
21 203-1880 Screw $5.19 4 usually ships 1-5 days
22 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
23 189-1354 Turned eye screw $2.09 2 usually ships 1-5 days
24 203-5059 Screw M8 x 30mm $30.95 2 usually ships 11-14 days
25 203-4899 Nut M8 $30.60 2 usually ships 1-5 days
26 203-1450 Screw 8 x 10 inch Call for price 2 usually ships 11-14 days
27 203-4538 Screw M8 x 16mm $4.25 2 usually ships 1-5 days
28 203-5531 Screw $30.60 2 usually ships 11-14 days
29 189-1387 Screw $23.54 4 usually ships 1-5 days
32 203-1377 D. 5 Washer $3.10 2 usually ships 1-5 days
33 189-1122 Bearing $20.34 2 usually ships 1-5 days
