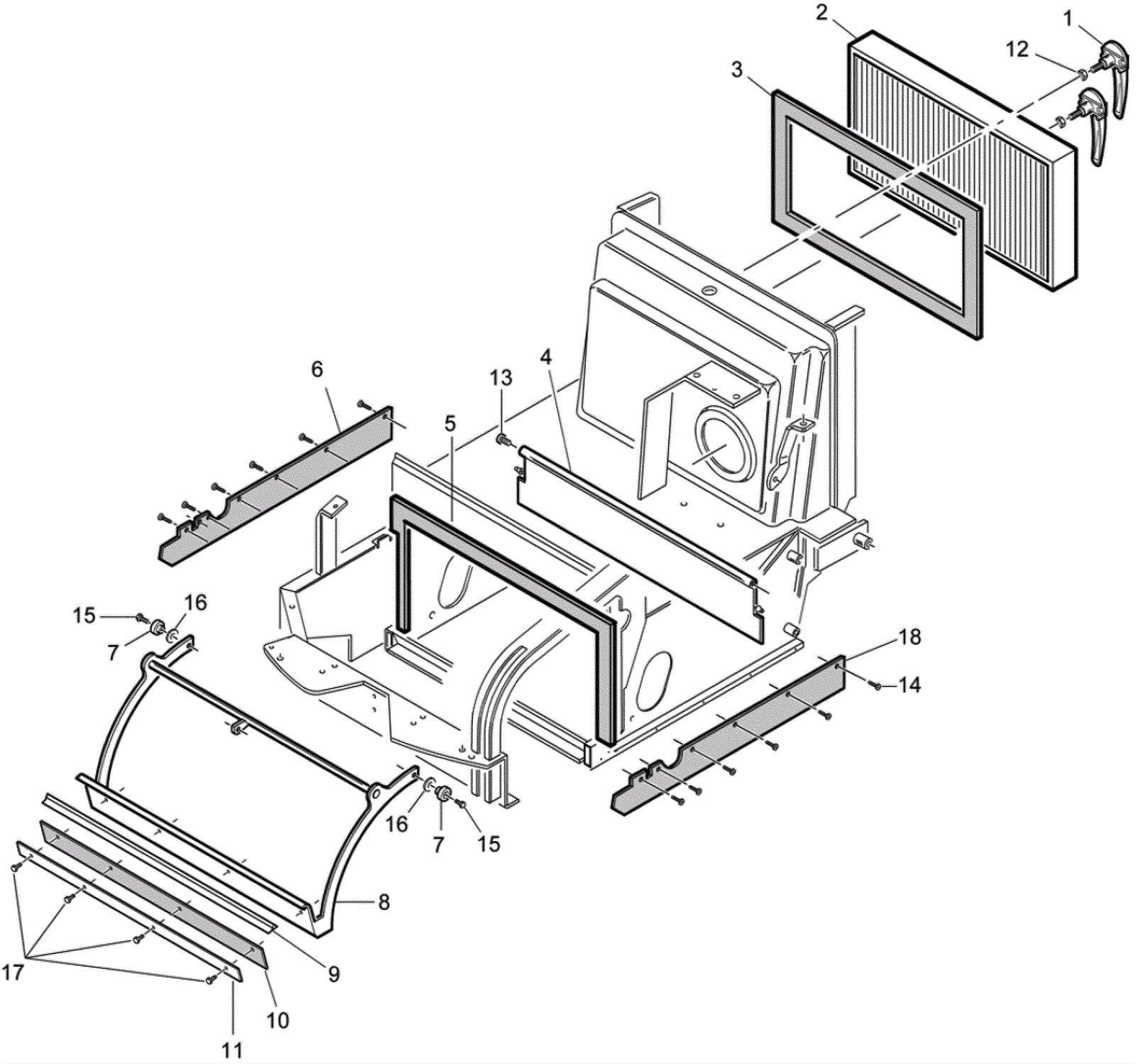

512R 28 INCH Flap Assembly

#PartDescriptionPriceReqNotesAvailability
1 203-4243 Handle $48.26 2 usually ships 11-14 days
2 203-2288 Dust control filter $212.20 1 usually ships 11-14 days
3 203-3137 Filter gaskets kit $19.66 1 usually ships 11-14 days
4 203-5072 Rear flap $99.17 1 usually ships 11-14 days
5a 203-3129 Adhesive kit for front drawer $32.25 1 (before August 2008) usually ships 1-5 days
5b 203-1436 Front hopper gasket $30.39 1 (after July 2008) usually ships 11-14 days
6 203-5073 Right side flap $41.88 1 usually ships 11-14 days
7 203-4076 Bushing $4.51 2 usually ships 1-5 days
8 203-5074 Balancer $238.19 1 usually ships 11-14 days
9 203-4248 Rubber skirt flap $34.84 1 usually ships 11-14 days
10 203-4247 Rubber flap $30.25 1 usually ships 11-14 days
11 203-4246 Retainer flap $27.42 1 usually ships 11-14 days
12 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
13 203-3143 Screw 10 x 16 $4.25 2 usually ships 1-5 days
14 203-4244 Screw $4.25 10 usually ships 1-5 days
15 203-3092 Screw M8 x 22 $4.25 2 usually ships 1-5 days
16 203-4212 Washer 8 x 24 $2.99 2 usually ships 1-5 days
17 203-1166 Screw M4 x 16 $5.19 4 usually ships 11-14 days
18 203-5075 Left side flap $41.88 1 usually ships 11-14 days
