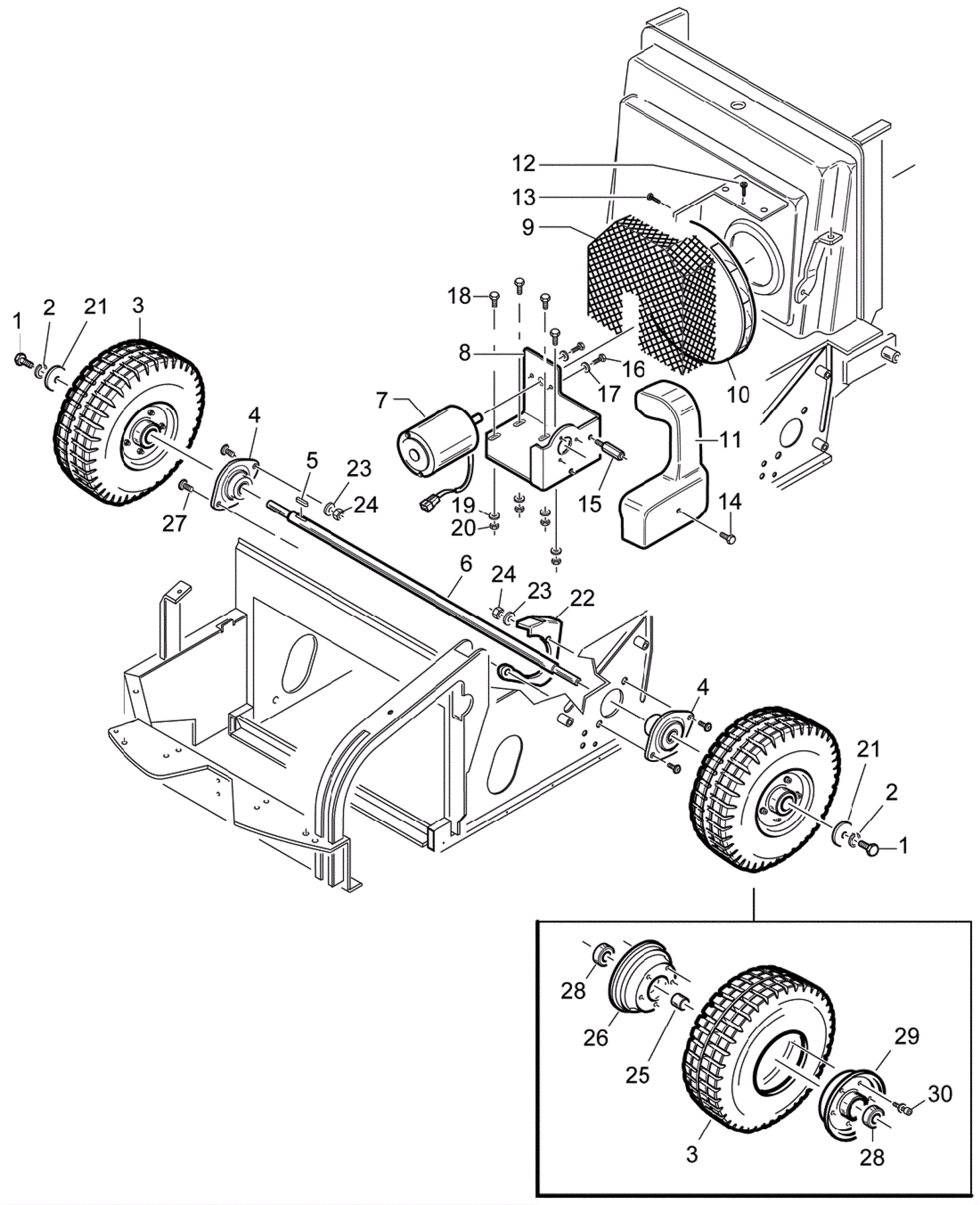

512R 28 INCH Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated $3.60 2 ships same day
2 203-7095 Washer $17.18 2 usually ships 11-14 days
3 203-4270 Wheel (gray) $178.55 2 usually ships 1-5 days
4 203-3027 Bearing and flange $29.66 2 usually ships 11-14 days
5 189-0643 Tongue $17.53 1 usually ships 1-5 days
6 203-1414 Rear axle $72.29 1 usually ships 11-14 days
7 203-3368 Motor $691.79 1 usually ships 11-14 days
8 203-3034 Motor support $95.34 1 usually ships 1-5 days
9 203-1415 Bracket Call for price 1 usually ships 11-14 days
10 203-3035 Fan $119.11 1 usually ships 11-14 days
11 203-4208 Conveyor $76.74 1 (before July 2008) usually ships 1-5 days
12 203-5115 Screw $5.19 1 usually ships 11-14 days
13 203-5115 Screw $5.19 1 usually ships 11-14 days
14 203-1164 Screw 6x10 $3.43 1 (before July 2008) usually ships 16-20 days
15 203-4236 Pin $20.01 1 (before July 2008) usually ships 1-5 days
16 203-3206 Screw M5 x 16 $4.25 2 ships same day
17 203-0903 Washer D5 $3.10 2 usually ships 11-14 days
18 203-3281 Screw M6 x 16 $4.25 4 ships same day
19 203-4235 Washer 6 x 18 x 2.38 $3.10 4 usually ships 1-5 days
20 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
21 203-1171 Washer 6 x 24 $3.10 2 ships same day
22 203-1416 Slide support bracket $25.47 1 usually ships 11-14 days
23 203-1291 Washer $3.10 4 usually ships 11-14 days
24 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
25 203-1970 Spacer $34.96 2 usually ships 1-5 days
26 203-4154 Hub $163.25 2 usually ships 11-14 days
27 203-3026 Screw M6 x 16 $4.25 4 usually ships 11-14 days
28 203-1169 Bearing 6202 2RS $48.49 4 usually ships 11-14 days
29 203-1945 Rear wheel hub $200.21 2 usually ships 1-5 days
30 203-1944 Screw 8x25 $30.95 10 usually ships 1-5 days
